018 - Automatic Transmission Gears

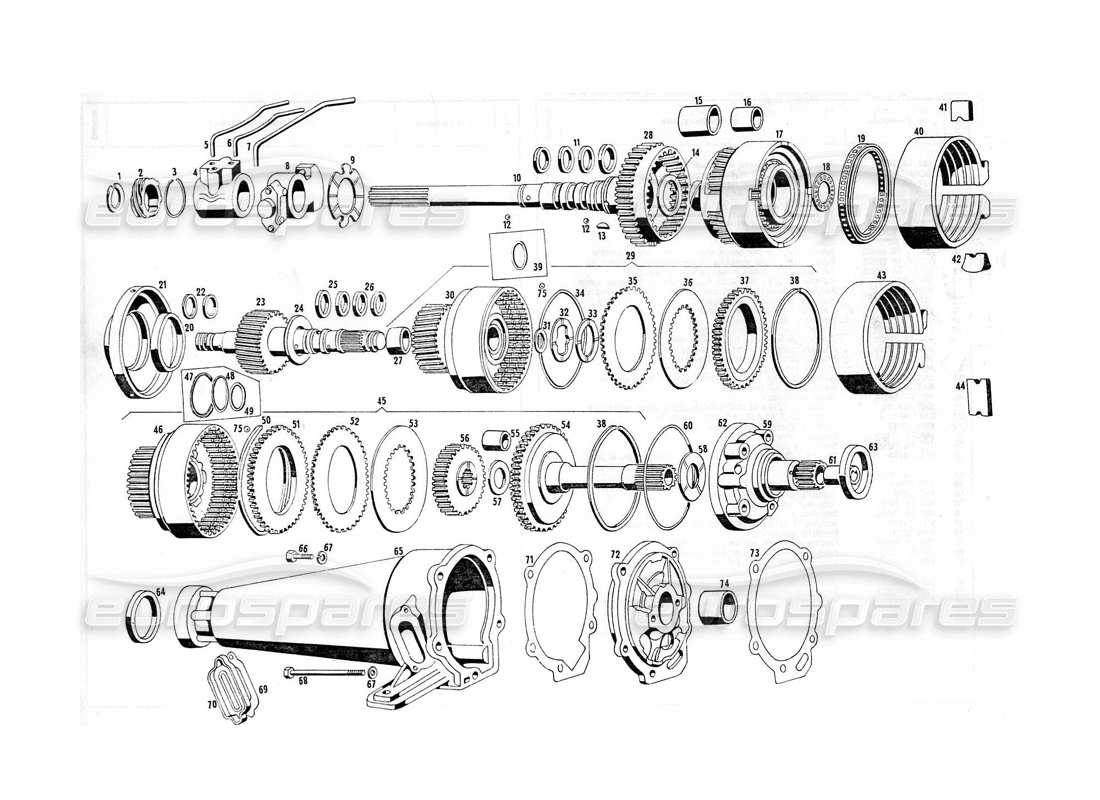

Maserati Indy 4.2 Automatic Transmission Gears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
107 TA 70043
RING
#
002
MPN:
101/9 TA 59715
Odometer primary gear on primary shaft
#
003
MPN:
107 TA 72024
RING
#
004
MPN:
107 TA 72022
Oil collector on the main shaft
#
005
MPN:
107 TA 70039
TUBO ANTER. SUL COLLETTORE OLIO
#
006
MPN:
107 TA 70040
INTERMEDIATE PIPE FOR SAID
#
007
MPN:
107 TA 70041
REAR TUBE FOR SAID
#
008
MPN:
107 TA 70021
VALVOLA REGOLATRICE CONTRIFUGA
#
009
MPN:
107 TA 72025
RING
#
010
MPN:
107 TA 72023
ALBERO PRIMARIO
#
011
MPN:
107 TA 72074
SEEGER RING
#
012
MPN:
SFN 46699
Sfera Ø 1/4 sull'albero primario
#
013
MPN:
LN 71963
REAR OIL PUMP DRIVING TAB
#
014
MPN:
107 TA 72091
RING
#
015
MPN:
107 TA 72079
BUSH
#
016
MPN:
107 TA 72080
BUSH
#
017
MPN:
107 TA 72081
PLANETARY GROUP COMPLETE WITH DRUM
#
018
MPN:
107 TA 72076
THRUST BEARING BETWEEN PLANETARY GROUP AND INPUT. CENTRAL
#
019
MPN:
107 TA 70462
RING
#
020
MPN:
107 TA 72082
BUSH FOR CENTRAL SUPPORT
#
021
MPN:
107 TA 72083
SUPPORT
#
022
MPN:
107 TA 70030
SEEGER RING
#
023
MPN:
107 TA 72077
COMPLETE CENTRAL GEAR
#
024
MPN:
107 TA 72084
RING
#
025
MPN:
107 TA 72085
SEEGER RING
#
026
MPN:
107 TA 72086
SEEGER RING
#
027
MPN:
107 TA 72087
BUSH
#
028
MPN:
107 TA 72088
Gear on the main shaft
#
029
MPN:
107 TA 70461
REAR CLUTCH ASSEMBLY COMPLETE WITH DRUM
#
030
MPN:
107 TA 70062
BARE FRONT DRUM
#
030
MPN:
107 TA 72089
COMPLETE FRONT DRUM
#
031
MPN:
GRL 72090
BUSH
#
032
MPN:
107 TA 72092
WASHER
#
033
MPN:
107 TA 72093
WASHER
#
034
MPN:
107 TA 70031
RING
#
035
MPN:
107 TA 70032
EXTERNAL DISC FOR REAR CLUTCH.
#
036
MPN:
107 TA 70033
INTERNAL DISC FOR REAR CLUTCH.
#
037
MPN:
107 TA 70034
REAR CLUTCH PRESSURE DISC
#
038
MPN:
107 TA 70035
SEEGER RING
#
039
MPN:
GOM 70060
GOMMINO Ø 3,5 X 36,5 X 43,5 SULLA FRIZIONE POSTERIORE
#
040
MPN:
107 TA 70022
REAR BRAKE BAND
#
041
MPN:
107 TA 72194
TOP PLUSH FOR REAR TAPE.
#
042
MPN:
107 TA 72195
LOWER PLUSH FOR REAR TAPE.
#
043
MPN:
107 TA 70050
FRONT BRAKE BAND
#
044
MPN:
107 TA 72196
ANCHOR FOR FRONT BELT
#
045
MPN:
107 TA 72095
FRONT CLUTCH ASSEMBLY COMPLETE WITH CYLINDER
#
046
MPN:
107 TA 71197
CILINDRO FRIZIONE ANTER. COMPLETO
#
047
MPN:
107 TA 70036
RING
#
048
MPN:
107 TA 72199
RING
#
049
MPN:
GOM 67775
GOMMINO Ø 3,5 X 32,93 X 39,99 FRA PISTONE E CILINDRO ANTER.
#
050
MPN:
107 TA 72198
SEEGER RING
#
051
MPN:
107 TA 72200
FRONT CLUTCH PRESSURE PLATE
#
052
MPN:
107 TA 72202
OUTER FRONT CLUTCH DISC
#
053
MPN:
107 TA 72201
INTERNAL FRONT CLUTCH DISC
#
054
MPN:
107 TA 72203
FRONT PICKUP SHAFT COMPLETE WITH BUSHING
#
055
MPN:
107 TA 72204
BUSH
#
056
MPN:
107 TA 72205
FRONT CLUTCH HUB
#
057
MPN:
107 TA 72206
SPACER BETWEEN HUB AND OUTPUT SHAFT
#
058
MPN:
107 TA 72207
SPACER BETWEEN PICKUP SHAFT AND GEARBOX
#
059
MPN:
107 TA 72208
COMPLETE FRONT PUMP
#
060
MPN:
107 TA 70028
RING
#
061
MPN:
107 TA 72209
BUSH
#
062
MPN:
107 TA 72210
SUPPORT
#
063
MPN:
ANT 70027
SEALING RING
#
064
MPN:
ANT 70044
SEALING RING
#
065
MPN:
107 TA 72211
COVER
#
066
MPN:
BN 56976
BOLT
#
067
MPN:
RSN 65748
WASHER
#
068
MPN:
BN 71964
BOLT
#
069
MPN:
107 TA 70045
GASKET OR SEAL
#
070
MPN:
107 TA 72236
COPERCHIETTO PER COPERCHIO POSTERIORE
#
071
MPN:
107 TA 72237
GASKET OR SEAL
#
072
MPN:
107 TA 70038
COMPLETE REAR OIL PUMP
#
073
MPN:
107 TA 70042
GASKET OR SEAL
#
074
MPN:
107 TA 72238
BUSH
#
075
MPN:
SFN 44745
SFERA Ø 3/16 ALL'INTERNO FRIZIONE ANTER. E POSTER.
