021 - Front Suspension

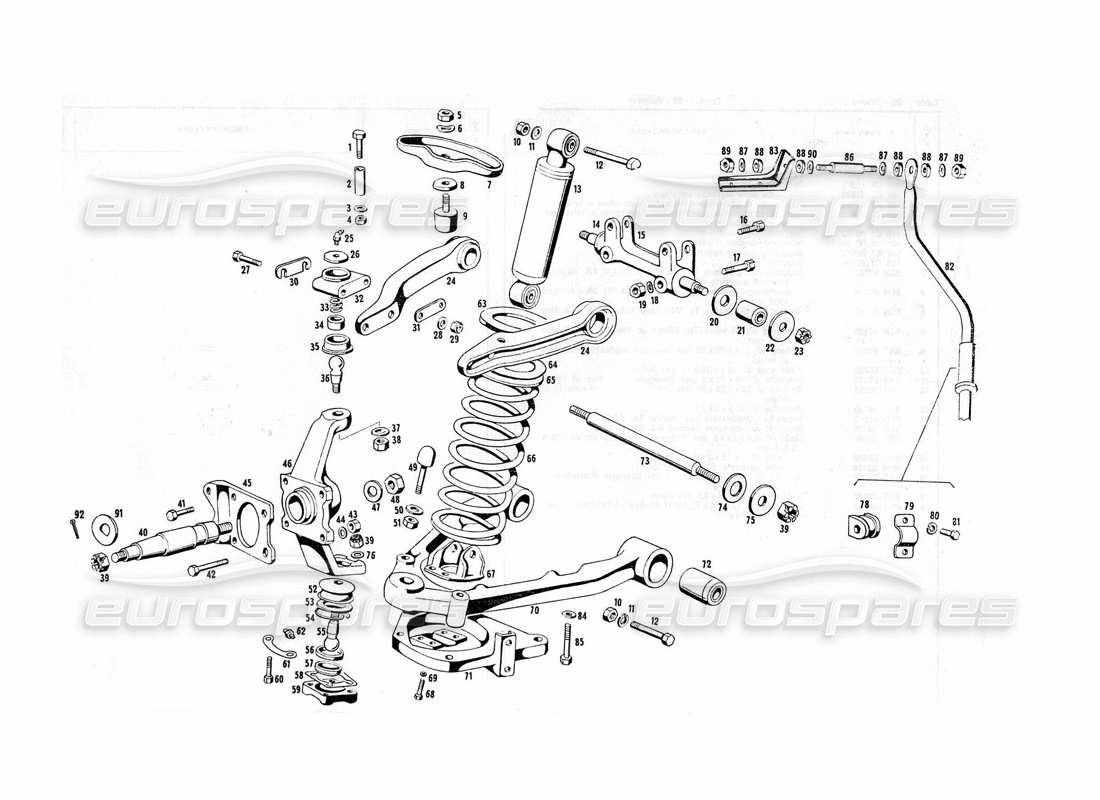

Maserati Indy 4.2 Front suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 116 SA 67365
SPACER ON THE LOWER ARM FIXING SEAT MM. 7
Details without numbers at the bottom of the illustrative table
# 000
MPN: 116 SA 67874
SPACER ON THE LOWER ARM FIXING SEAT MM. 3
Details without numbers at the bottom of the illustrative table
# 001
MPN: BN 48206
BOLT
# 002
MPN: 12039/48205
SPACER ON THE TOP LEVER
# 003
MPN: RN 48207
WASHER
# 004
MPN: DN 48204
NUT
# 005
MPN: DNT. 47031
NUT
# 006
MPN: RN 45680
WASHER
# 007
MPN: 12037/48202
BRACE FOR UPPER END STOP BUFFER
# 008
MPN: RN52903
WASHER
# 009
MPN: 107SA55252
UPPER LIMIT SWITCH BUFFER
# 010
MPN: D N 33540
NUT
# 011
MPN: RSN 46672
WASHER
# 012
MPN: BN 55537
BOLT
# 013
MPN: 115 SA 64589
AMMORTIZZATORE ANTERIORE
# 014
MPN: 101-SA-59593
SUPERIOR FULCRO
# 015
MPN: 1204153581
SPACER FOR UPPER ARM
# 016
MPN: BNT50322
BOLT
# 017
MPN: BNT/50321
BOLT
# 018
MPN: RN45681
WASHER
# 019
MPN: DN 48923
NUT
# 020
MPN: 12052 48189
WASHER
# 021
MPN: 12124/48190
BUSH
# 022
MPN: RN 48193
WASHER
# 023
MPN: DCN 48194
NUT
# 024
MPN: 116 SA 66614
LEVER
# 024
MPN: 116 SA 66615
LEVER
# 025
MPN: IN/48242
GREASE GREASE FOR TOP JOINT
# 026
MPN: 1228948240
PLATE
# 027
MPN: BN48208
BOLT
# 028
MPN: RN 48207
WASHER
# 029
MPN: DN 48204
NUT
# 030
MPN: 12107/48210
UPPER JOINT SEAT PACKAGE SPACER
# 031
MPN: 12101 48209
SPACER FOR UPPER JOINT SEAT
# 032
MPN: 101 SA 67069
COMPLETE UPPER JOINT SEAT
# 032
MPN: 1228748238
SEAT FOR UPPER JOINT
# 033
MPN: 12288 48239
SPRING
# 034
MPN: 12286 48237
NUT FOR TOP JOINT
# 035
MPN: 12291 48241
COPRIPOLVERE SNODO SUPERIORE
# 036
MPN: 12300/48236
TOP JOINT
# 037
MPN: RN 48244
WASHER
# 038
MPN: DN48243
NUT
# 039
MPN: DCN 48200
NUT
# 039
MPN: DCN 48200
NUT
# 039
MPN: DCN 48200
NUT
# 040
MPN: 12100 48227
KNEE
from £168.00
from £168.00
# 041
MPN: BN 48246
BOLT
# 043
MPN: DN 48250
NUT
# 044
MPN: RNT/52064
WASHER
# 045
MPN: 116 FA 65874
SUPPORT
# 045
MPN: 116 FA 65875
SUPPORT
# 046
MPN: 116 SA 68056
LEVER ARM FOR HUBS WITH RIGHT ANUS
# 046
MPN: 116 SA 68057
BRACCIO PORTA LEVE PER MOZZI CAN ANGUS SINISTRO
# 047
MPN: RN48228
WASHER
# 048
MPN: DN/48229
NUT
# 049
MPN: 107/A SA 62835
LOWER LIMIT SWITCH BUFFER
# 050
MPN: RN 45680
WASHER
# 051
MPN: DNT/47064
NUT
# 052
MPN: 12306/48223
COPRISNODO INFERIORE
# 053
MPN: 12309 48224
LAMIERINO SOSTEGNO COPRISNODO
# 054
MPN: 1230748222
SEAL
# 055
MPN: 1230448219
LOWER JOINT
# 056
MPN: 12119 48221
RING
# 057
MPN: 12296 48218
NUT FOR LOWER JOINT
# 058
MPN: 12117/48220
GASKET OR SEAL
# 059
MPN: 1229848217
COPERCHIETTO SNODO INFERIORE SUL BRACCIO
# 060
MPN: BN/48214
BOLT
# 061
MPN: RDL 48215
WASHER
# 062
MPN: IN/48216
GREASE GREASE FOR LOWER JOINT
# 063
MPN: 1201047997
UPPER SPRING HOLDER CAP
# 064
MPN: 116 SA 71370
RING
# 065
MPN: 12024 48001
RUBBER RING SHEET
# 066
MPN: 116 SA 66900
SPRING
# 067
MPN: 12047/48131
SUPPORT
# 068
MPN: BN 47122
BOLT
# 069
MPN: RSN 3 2 6 3 5
WASHER
# 070

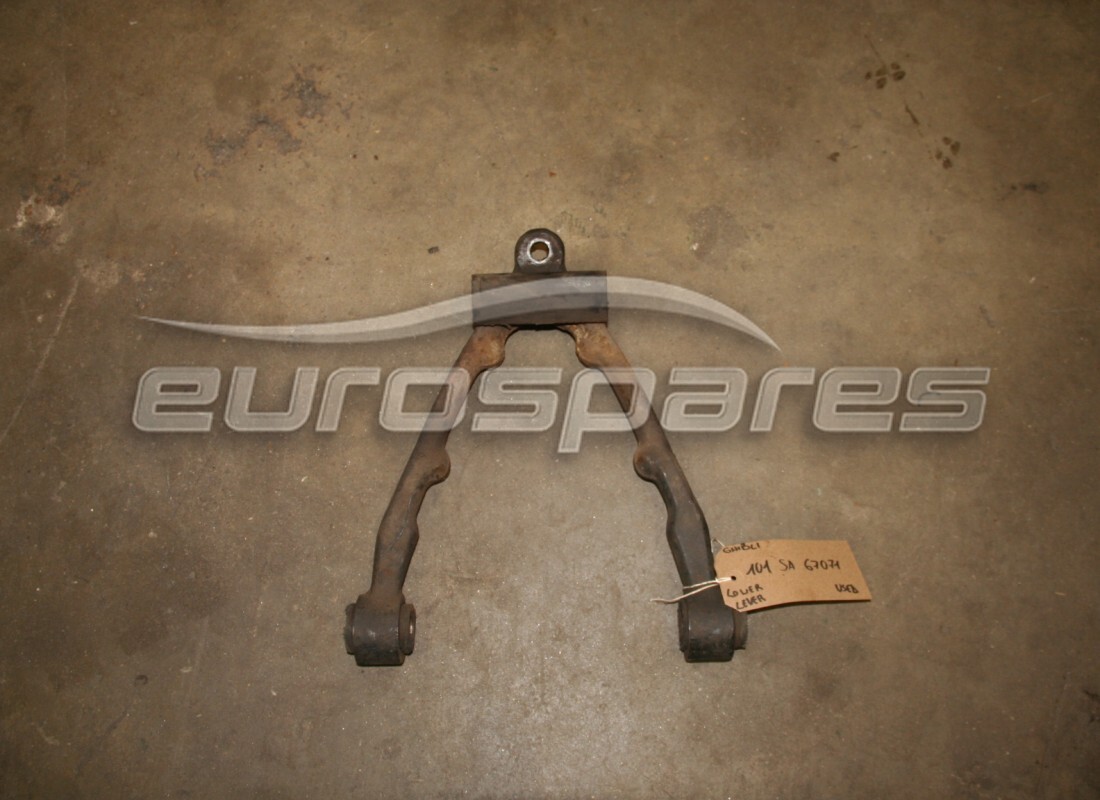

MPN: 101 SA 67071
LOWER ARM COMPLETE WITH RUBBER BUSHINGS
from £252.00
from £252.00
# 070
MPN: 12038 48198
BRACCIO INFERIORE
# 071
MPN: 12060 49741
SPRING HOLDER CAP ON THE LOWER ARM
# 072
MPN: 12126 48197
BUSH
# 073
MPN: 107 SA 55195
PIVOT
# 074
MPN: 12042 46456
WASHER
# 075
MPN: RN/48199
WASHER
# 076
MPN: RN/48225
WASHER
# 078
MPN: 109 SA 59732
Tassello elastico per supporto ad esaurimento montare SA 58546
# 079
MPN: 12572/44117
SUPPORT
# 080
MPN: RSN/33112
WASHER
from £1.72
from £1.72
# 081
MPN: BN47333
BOLT
# 082
MPN: 116 SA 66483
FRONT STABILIZER BAR WHEN LAST FUEL FIT SA 68069
# 083
MPN: 107 - SA 56295
SUPPORT
# 084
MPN: RN 48253
WASHER
# 085
MPN: BN48252
BOLT
# 086
MPN: 107 - SA 56294
PIVOT
# 087
MPN: RN 61533
WASHER
# 088
MPN: GOM 58835
Gommino Ø 12,5X35X15 per detto
# 089
MPN: DST 46472
NUT
# 090
MPN: RN 38551
WASHER
# 091
MPN: 12176 48231
WASHER
# 092
MPN: CN 48195
COPIGLIA PER DETTO Ø 1/8X 1
