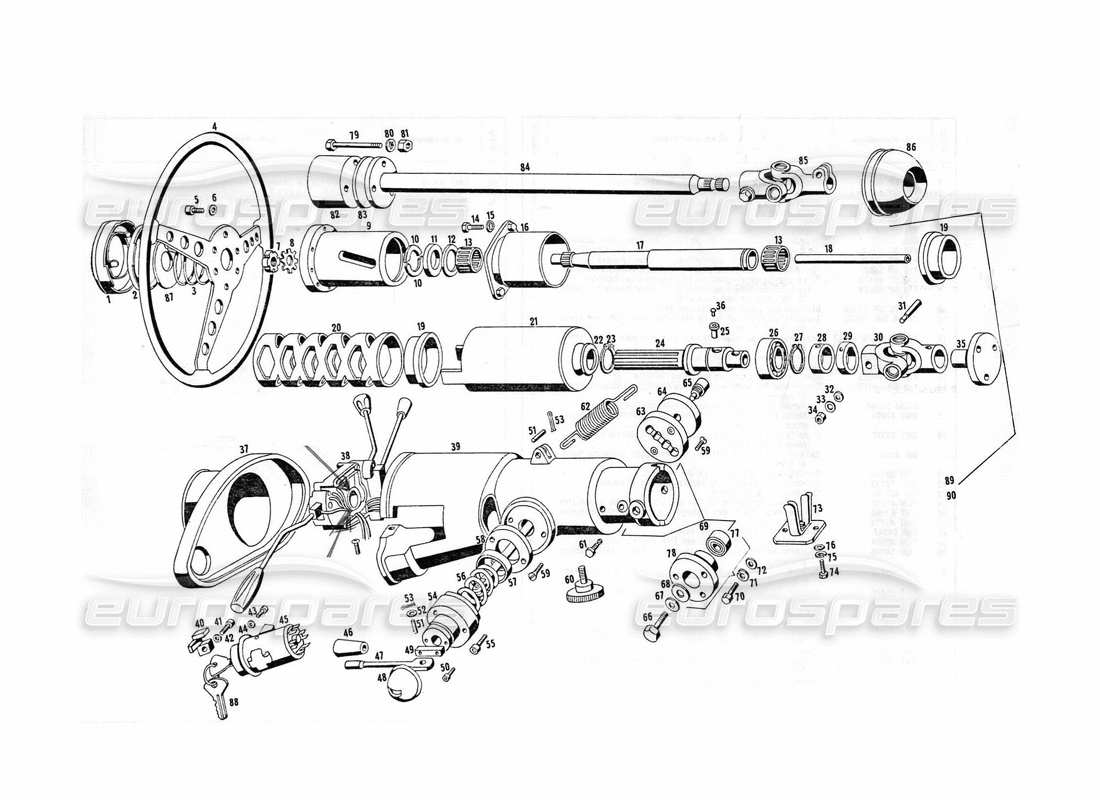

Maserati Indy 4.2 Steering parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
116 GS 71776
Socket for steering wheel warning button
#
002
MPN:
116 GS 71777
STEERING WHEEL WARNER CONTROL BUTTON
#
002
MPN:
116 GS 72381
HORN BUTTON ASSEMBLY
#
003
MPN:
116 GS 71778
SPRING
#
004
MPN:
116 GS 66586
COMPLETE STEERING WHEEL FOR LEFT DRIVE
#
004
MPN:
116 GS 69091
COMPLETE STEERING WHEEL FOR RIGHT HAND DRIVE
#
004
MPN:
116 GS 71779
VOLANTE GUIDA (SOLO RAZZA)
#
005
MPN:
BNT 59794
BOLT
#
006
MPN:
RDI53899
WASHER
#
007
MPN:
GH 57874
GHIERA 16 X 1 X 7 FISS. VOLANTE AL PIANTONE STENO
#
008
MPN:
RI. 53873
WASHER
#
009
MPN:
116 GS 66627
Left-hand drive steering wheel hub
#
009
MPN:
116 GS 69002
RIGHT DRIVE STEERING WHEEL HUB
#
010
MPN:
116 GS 66629
SEMI ANELLO DI TENUTA MANICOTTO PORTA COMANDO IUCI TERG
#
011
MPN:
116 GS 66628
RING
#
012
MPN:
116 GS 66901
RING
#
013
MPN:
GRL 59167
ASTUCCLO A RULLINI Ø 30 X 37 X 20 SUL MANICOTTO SCORREVOLE
#
014
MPN:
BMT 44294
BOLT
#
015
MPN:
RDI 58544
WASHER
#
016
MPN:
116 GS 66880
SLEEVE ASSEMBLY ON THE CONTROL HOLDER, LEFT-HAND DRIVE
#
016
MPN:
116 GS 68987
SLEEVE ASSEMBLY ON THE CONTROL HOLDER, RIGHT DRIVE
#
017
MPN:
116 GS 66623
Piantone steno sul volante
#
018
MPN:
107/A GS 65304
CONDOTTO CAVO CLAXON SUL PIANTONE
#
019
MPN:
116 GS 67856
RETURNABLE SLEEVE GUIDE FLANGE
#
020
MPN:
107/A GS 65919
ELASTIC SLEEVE FOR RETURNABLE STEERING WHEEL
#
021
MPN:
116 GS 66546
SLIDING SLEEVE WITH RETURNABLE GUIDE POSITION ADJUSTMENT
#
022
MPN:
107/A GS 65895
RING
#
023
MPN:
ART. 43121
RING
#
024
MPN:
116 GS 66389
Terminate plantone sterzo dal supporto comando Iuci tergi at giunto
#
025
MPN:
101/7 ME 66616
INSULATING BUSH CABLE SLIDING CONTACT ON THE STEERING COLUMN END
#
026
MPN:
CSC 66304
CUSCINETTO RADIATE SUL TERMINATE PIANTONE STENO Ø 25 X 52 X 18
#
027
MPN:
ART 43993
RING
#
028
MPN:
116 GS 67332
COLLETTORE IN GOMMA PER AWISATORE ACUSTICO SUL .PIANTONE STERZN
#
029
MPN:
116 GS 66613
BUSH
#
030
MPN:
116 GS 67265
GIUNTO FRA PIANTONI STENO
#
031
MPN:
SN 59538
PIN
#
032
MPN:
RNT 52530
WASHER
#
033
MPN:
RDI 58544
WASHER
#
034
MPN:
DNT 47046
NUT
This part replaces part number 47046
#
035
MPN:
116 GS 67262
CONNECTION FLANGE CARDAN JOINT TO INTERMEDIATE COLUMN
#
036
MPN:
RVM 30898
RIVET FIXING MANIFOLD FOR SIGNAL TO STEERING COLUMN
#
037
MPN:
116 GS 67537
CAIOTTA SULFA PARTE SUPERIORE PIANTONE
#
038
MPN:
116 GS 66408
IUCI CONTROL UNIT AND LEFT WIPER
#
038
MPN:
116 GS 68988
IUCI CONTROL UNIT AND RIGHT WIPER
from
£827.58
from
£827.58
#
039
MPN:
116 GS 66413
SUPP. PIANTONE STENO CON COMANDO IUCI E TERGI E PIANTONE RIENTRABILE
#
039
MPN:
116 GS 68968
SUPP. PLANTONE CON COMANDO AWTAMENTO, IUCI E TERGL
#
040
MPN:
116 GS 68789
BLOCCHETTO COPERTURA BLOCCASTENO G. SINISTRA
#
040
MPN:
116 GS 69017
BLOCCHETTO COPERTURA BLOCCASTENO G. DESTRA
#
041
MPN:
VNT 60196
SCREW
#
042
MPN:
RDI 58544
WASHER
#
043
MPN:
VNT 61402
SCREW
#
044
MPN:
RDI53899
WASHER
#
045
MPN:
GS 70768
Ignition Lock Set
#
046
MPN:
109 BP 67415
POMELLO SULFA LAVA ARR. ECCENTRICO COMANDO MANICOTTO D'ARRESTO
#
047
MPN:
116 GS 67413
LEVER
#
048
MPN:
116 GS 67414
STEERING WHEEL POSITIONING CONTROL LEVER PROTECTION CAP
#
049
MPN:
116 GS 67406
PLATE
#
050
MPN:
VN 67740
Vito Ø 4 X 0,7 X 6 guide plate fixing
#
051
MPN:
SN 67409
PIN
#
052
MPN:
RAT/45679
WASHER
#
053
MPN:
CN. 43776
COPIGLTA Ø 1.8 X 15 PER DETTO
from
£0.86
from
£0.86
#
054
MPN:
116 GS 67433
BUSH
#
055
MPN:
VNT 64086
SCREW
#
056
MPN:
116 GS 66395
MOTLA PER POSIZIONAMENTO VOLANTE
#
057
MPN:
116 GS 68141
SHAFT ASSEMBLY ASSEMBLY WITH CLUTCH DISC
#
058
MPN:
116 GS 67402
RING
#
059
MPN:
VNT 33020
SCREW
#
060
MPN:
116 GS 67521
MANOPOLA BLOCCAGGIO VOLANTE REGISTRABLLE AT SUPPORTO
#
061
MPN:
BN 66818
BOLT
#
062
MPN:
116 GS 67418
MOLLS POSIZIONAMENTO VOLANTE
#
063
MPN:
116 GS 67408
Flange for steering wheel positioning stop sleeve
#
064
MPN:
116 GS 67403
FRICTION DISC FOR STEERING WHEEL POSITIONING ADJUSTMENT
#
065
MPN:
VN 67411
WAIST 10 X 15 WITH WHEEL POSITIONING GUIDE DOWEL.
#
066
MPN:
BNT 47475
BOLT
#
067
MPN:
RNT 55379
WASHER
#
068
MPN:
RDI55990
WASHER
#
069
MPN:
116 GS 68142
Complessivo di montaggio boccola porta silentbloc snodo volante
#
070
MPN:
BNT. 53968
BOLT
#
071
MPN:
RSN/32690
WASHER
#
072
MPN:
RNT 52134
WASHER
#
073
MPN:
116 GS 66619
Contatto strisciante per avvisatore acustico completo
#
075
MPN:
RSN 3 2 4 9 7
WASHER
#
076
MPN:
RNT 52530
WASHER
#
077
MPN:
SLN 66392
SUPPORT
#
078
MPN:
116 GS 67736
BUSH
#
079
MPN:
BNT 35739
BOLT
#
079
MPN:
BNT 54584
BOLT
#
079
MPN:
BNT 67854
BOLT
#
080
MPN:
RDI53899
WASHER
#
081
MPN:
DNT 47047
NUT
#
082
MPN:
116 GS 67857
DISTANZIALE PER PLANTONE STENO FRA GIUNTO E PLANTONE INTERMEDIO
#
083
MPN:
116 GS 67264
CLAMPING SPACER BETWEEN JOINT AND INTERMEDIATE COLUMN
#
084
MPN:
116 GS 67863
COMPLESSIVO PLANTONE STERZO INTERMEDIO
#
085
MPN:
101 13652 47083
JOINT FOR GUIDE COLUMN
#
086
MPN:
116 GS 66969
COMPLETE PROTECTIVE CAP ON THE COLUMN
#
087
MPN:
116 GS 71909
HORN SPRING SUPPORT DISC
#
088
MPN:
GS 70768
Ignition Lock Set
#
089
MPN:
116 GS 68144
GRUPPO PLANTONE VOLANTE
#
090
MPN:
116 GS 68143
OVERALL STEERING WHEEL ASSEMBLY
