027 - hydraulic steering pump

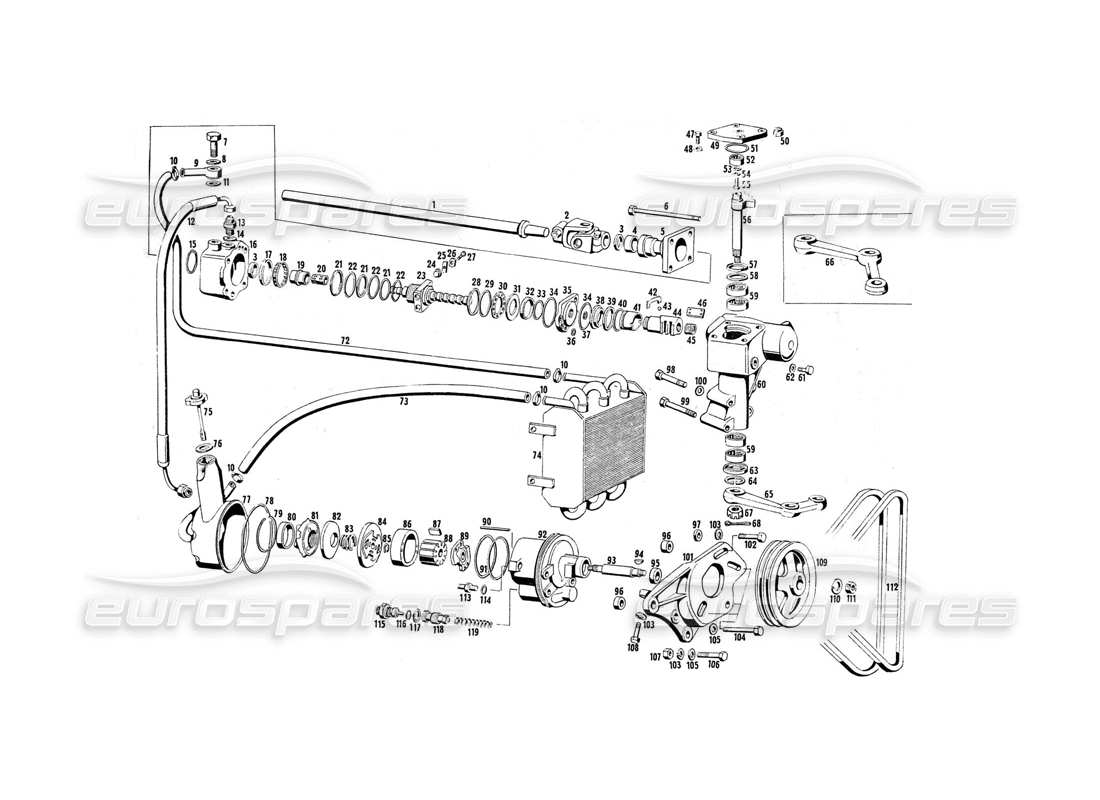

Maserati Indy 4.2 Hydraulic steering pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
115/A GI 69211
POWER STEERING PUMP COMPLETE WITH NUT - WASHER AND KEY
#
001
MPN:
115/A GI 72333
CORPO POMPA
#
002
MPN:
ART 72005
RING
#
003
MPN:
115/A GI 72055
COVER
#
004
MPN:
115/A GI 72056
SPRING
#
005
MPN:
GOM 72057
Rubber Ø 69,52 X 2,65 rear pump cover oil seal
#
006
MPN:
LN 41745
Key
#
007
MPN:
GRL 72184
Gabbia arullini Ø 17 X 25X 16
#
008
MPN:
ANT 72185
SEALING RING
#
009
MPN:
CSC 72026
Cuscinetto Ø 20X 42X12
#
010
MPN:
ART 72064
RING
#
011
MPN:
TN 72054
Conical plug Ø 14 X 1,5 for pump oil filling
#
012
MPN:
115/A GI 69089
Belt tensioner adjustment flange
#
013
MPN:
BNT. 47015
BOLT
#
014
MPN:
RDI55990
WASHER
#
015
MPN:
RNT47075
WASHER
This part replaces part number 47075
#
016
MPN:
BNT 67853
BOLT
#
017
MPN:
BNT 47017
BOLT
#
018
MPN:
DNT. 47031
NUT 8 X 1.25
#
019
MPN:
115/A GI 69090
SUPPORT
#
020
MPN:
115/A GI 69221
Spacer under pulley
#
021
MPN:
116 GI 71303
PULEGGIA TRAINO POMPA SERVOSTERZO (SINO ALLA VETTURA)
#
022
MPN:
RAT 53217
PULEGGIA TRAINO POMPA PER SERVOSTERZO (DALLA VETT.)
#
023
MPN:
DNT 72063
NUT
#
024
MPN:
116 GI 71317
PUNTALINO TENDICINGHIA ALTERNATORE
#
025
MPN:
116 GI 71416
PIVOT
#
026
MPN:
CTR 71575
TOW BELT FOR POWER STEERING PUMP AND AIR CONDITIONER COMPRESSOR 13 X 8 X 995 (UP TO CAR N.)
#
027
MPN:
RTN 70663
UNION
#
028
MPN:
GN 44635
GASKET OR SEAL
#
029
MPN:
107GC57917
OIL DELIVERY PIPE FROM PUMP TO STEERING BOX
#
030
MPN:
TN 72061
Tappo Ø 22 X 1,5 per valvolina regolazione pressione olio
#
031
MPN:
GN 72062
GASKET OR SEAL
#
032
MPN:
115/A GI 72058
SPRING
#
033
MPN:
115/A GI 72059
COMPLETE VALVE FOR OIL PRESSURE ADJUSTMENT
#
034
MPN:
115/A GI 69212
OIL TANK FOR POWER STEERING PUMP COMPLETE
#
035
MPN:
GN 72073
GASKET OR SEAL
#
036
MPN:
115/A GI 72060
COVER
#
037
MPN:
DNT 72068
NUT
#
038
MPN:
RTN 70713
UNION
#
039
MPN:
GN 67376
GASKET OR SEAL
#
040
MPN:
FRN 63331
Clamp Ø 22 fixing the oil pipe from the tank to the pump
#
041
MPN:
MN 71608
Sleeve Ø 16 X 23 X 700 from the tank to the pump
#
042
MPN:
115/A GI 70927
OIL TANK FIXING CLAMP
#
043
MPN:
PRN 61373
OIL TANK SEAL SPONGE RUBBER PROFILE 20 X 4 X 160
#
044
MPN:
VAT 67485
Self-tapping screw Ø 4,2 X 6,35 fixing oil tank to the frame
#
045
MPN:
RNT54507
WASHER
#
046
MPN:
MN 52424
SLEEVE Ø 12 X 18 X 1200 FROM THE TANK TO THE RADIATOR
#
047
MPN:
FRN 37824
FASCETTA MTOO 0 12 X20 PER DETTO
#
048
MPN:
107/A BR 64546
LAMIERINO SOSTEGNO Tubi RADIATORE OLIO (DA ADATTARE IN OPERA)
#
049
MPN:
PFN 54410
GROMMET
#
050
MPN:
BNT 72307
BOLT
#
051
MPN:
GRF 72314
Moltetta di fermo per vite Ø 6
#
052
MPN:
115/A GI 72297
FILTER CARTRIDGE
#
053
MPN:
115/A GI 72322
COVER
#
054
MPN:
115/A GI 72323
SPRING
#
055
MPN:
115/A GI 72324
PIASTRA LATERALE (POST.)
#
056
MPN:
115/A GI 72327
PIN
#
057
MPN:
115/A GI 72328
ROTORE COMPLETO (COMPOSTO DA 13 PEZZI COMPRESE LE 10 PALETTE)
#
058
MPN:
115/A GI 72329
PIASTRA LATERALE (ANT.)
#
059
MPN:
GOM 72190
Gommino Ø 20,29 X 2,65
#
060
MPN:
ART 72306
RING
#
061
MPN:
115/A GI 72330
ROTOR HOLDER SHAFT
#
062
MPN:
GRF 72313
Retaining clip for screw Ø 6
#
063
MPN:
GOM 72316
INTERMEDIATE RUBBER 0 66,35 X 2,62
#
064
MPN:
GOM 72319
Gommino Ø anteriore
#
065
MPN:
115/A GI 72331
BOBINA
