002 - engine housing

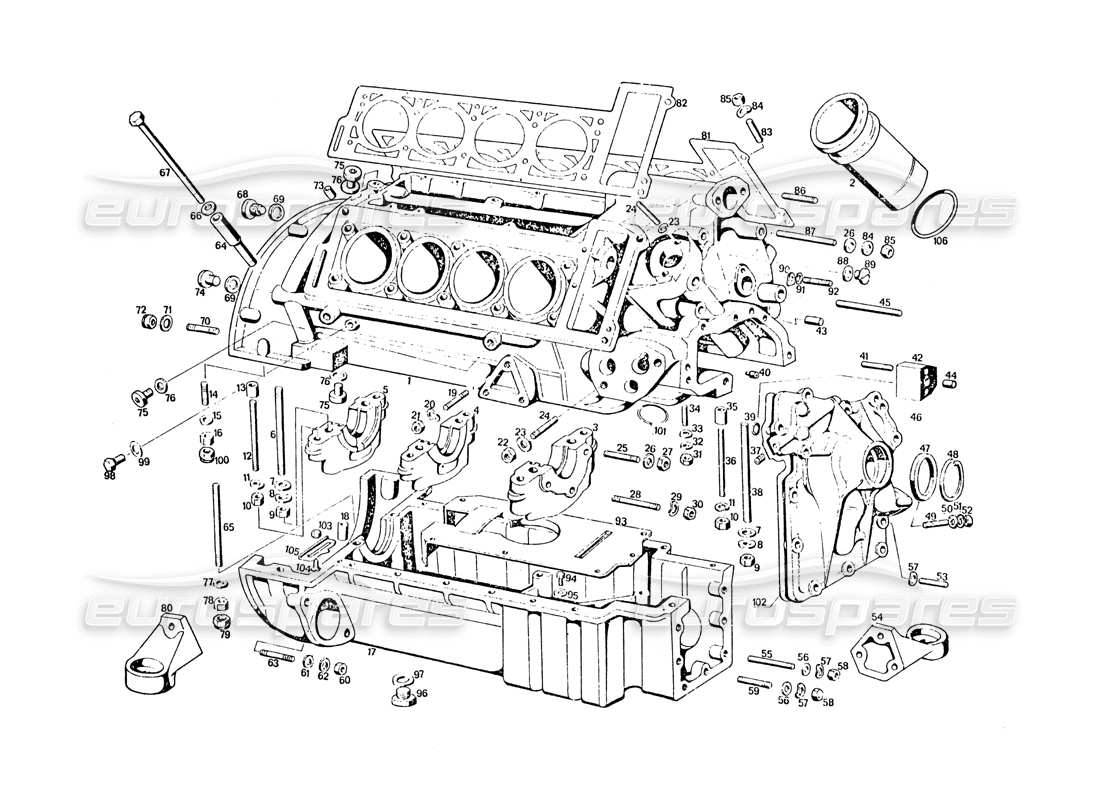

Maserati Khamsin Engine housing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115/49 MB 67535
BASAMENTO CILINDRI (RICAVABILE DAL GREZZO 107/3 MB/67167)
# 002
MPN: 115/49 MB 66542
BARREL FOR INTERNAL CYLINDERS
# 002
MPN: 115/49 MB 66543
BARREL FOR EXTERNAL CYLINDERS
# 003
MPN: 107 MB 55704
SUPPORT
# 004
MPN: 103153250488
SUPPORT
# 005
MPN: 107 MB 55703
SUPPORT
# 006
MPN: 103 1530 53488
STUD
# 007
MPN: RNT47085
WASHER
from £3.44
from £3.44
# 008
MPN: RAT 46636
WASHER
# 009
MPN: DN47061
NUT
# 010
MPN: DNT. 47031
DODO Ø 8 X 1.25 FOR FRONT SUPPORT FIXING
# 011
MPN: RAT/45680
WASHER
# 012
MPN: PN55923
STUD
# 013
MPN: GRN 51124
Grub screw for crankcase centering and crankshaft support Ø 12 X 8.5 X 22
# 014
MPN: PN49099
STUD
# 015
MPN: RNT47210
WASHER
# 016
MPN: DNT 47080
NUT
# 017
MPN: 115 MB 63040
COPPA OLIO MOTORE
# 018
MPN: GRN 51124
CENTERING GRIN BETWEEN CRANKCASE AND CRANKSHAFT SUPPORT Ø 12 X 8.5 X 22
# 019
MPN: PN 33927
STUD
# 020
MPN: RAT. 45681
WASHER
This part replaces part number 45681
# 021
MPN: DNT 47624
NUT
# 022
MPN: DNT ??854
NUT
# 023
MPN: RSN 3 2 6 3 5
WASHER
# 024
MPN: PN32424
STUD
# 024
MPN: PN32424
STUD
# 025
MPN: PN 33921
STUD
# 026
MPN: RNT 55379
WASHER
# 027
MPN: DST 53397
NUT
This part replaces part number 53397
# 028
MPN: PN 53525
STUD
# 029
MPN: RAT. 45681
WASHER
This part replaces part number 45681
# 030
MPN: DST 48923
NUT
# 031
MPN: DNT 47047
NUT
# 032
MPN: RSN/32690
WASHER
# 033
MPN: RNT 6701,1
WASHER
# 035
MPN: GRN 54501
CENTERING GRIN BETWEEN BASE AND CUP Ø 8 X 24
# 036
MPN: PN41864
STUD
# 037
MPN: TN 44295
Crankcase front cover oil hole plug Ø 6 X 1
# 038
MPN: 103153153660
STUD
# 039
MPN: GOM. 42229
RUBBER UNDER THE FRONT CRANKCASE COVER Ø 11 X 16 X 2.5
from £2.16
from £2.16
# 040
MPN: 107/2 MB 61859
GRAIN WITH OIL CALIBRATION FOR FRONT CRANKCASE COVER
# 041
MPN: PN 64825
STUD
# 042
MPN: 107/2 MD 59607
Distenziale per tenditore automatico « Renold »
# 043
MPN: GRN 54501
CENTERING GRIN BETWEEN CRANKCASE AND FRONT COVER
# 044
MPN: GRN 45716
Grano per distanziale tenditore automatico « Renold » Ø 10 X 14
# 045
MPN: PN. 55135
STUD
# 046
MPN: 115.06 MB 79533
COVER
# 046
MPN: 120 MB 120.203
FRONT COVER ASSEMBLY WITH RECOVERY OIL PUMP AND TORSION BAR
# 047
MPN: ANT 43241
FRONT COVER SEAL RING Ø 50 X 68 X 10
# 048
MPN: ART 60328
RETAINING RING FOR BEARING ON FRONT COVER Ø 63
# 050
MPN: RNT 6701,1
WASHER
# 051
MPN: RSN/32690
WASHER
# 052
MPN: DNT 47047
NUT
# 053
MPN: PN 63589
STUD
# 054
MPN: 107/2 MB 63812
SUPPORT
# 054
MPN: 120 GT 81185
SUPPORT
# 055
MPN: PN 42448
STUD
# 056
MPN: RNT 6701,1
WASHER
# 057
MPN: RAT/45679
WASHER
# 058
MPN: DNT 47047
NUT
# 059
MPN: PN35490
STUD
# 060
MPN: DN 48127
NUT
# 061
MPN: RNT 32423
WASHER
# 062
MPN: 107/1 MT 62822

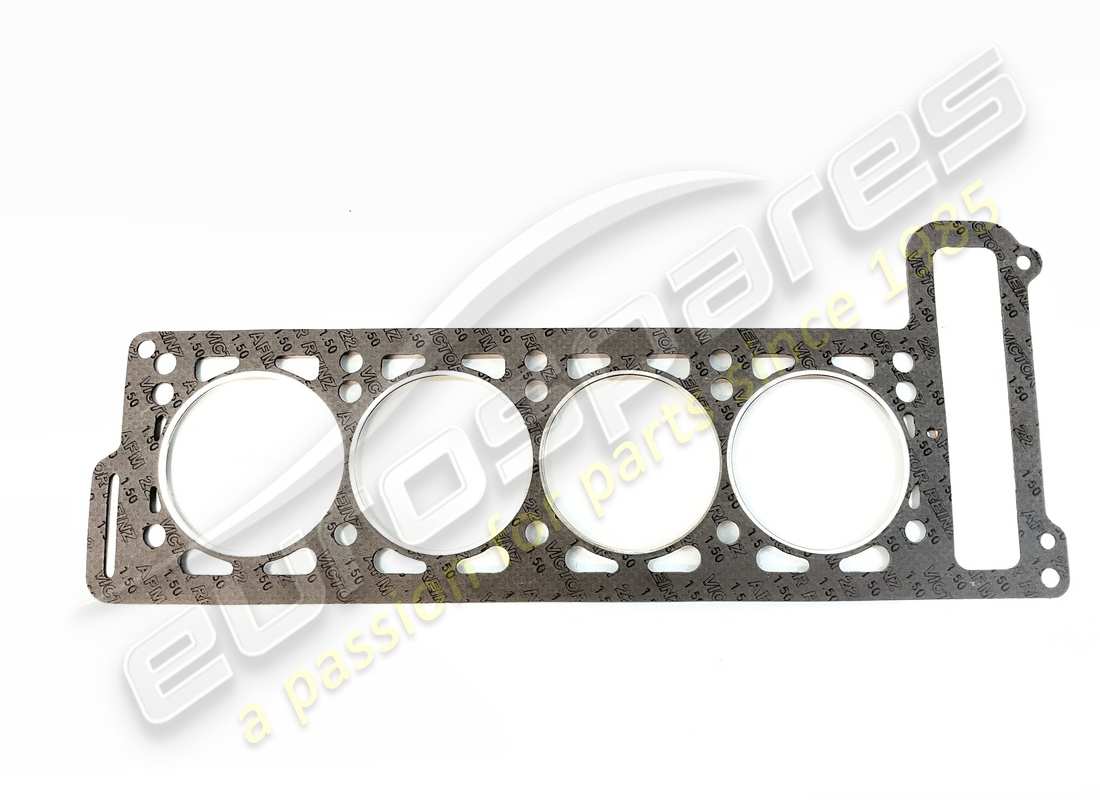

RH HEAD GASKET 4700 C.C.
from £152.25
from £152.25
# 062
MPN: RSN 33667
WASHER
# 063
MPN: PN48126
STUD
# 064
MPN: 103.1536.54014
STUD
# 065
MPN: PN 51443
STUD
# 066
MPN: RN 60913
WASHER
Supersession
Supersession
# 067
MPN: BNT 54015
BOLT
# 068
MPN: 107 MB 65620
CLUTCH SIDE OIL CAP
# 069
MPN: GN48059
GASKET FOR OIL LINE CAPS Ø 24,5 X 32
# 069
MPN: GN48059
GASKET FOR OIL DRAIN PLUG Ø 24,5 X 32
# 070
MPN: PN53067
STUD
from £4.32
from £4.32
# 071
MPN: RNT 71349
WASHER
# 072
MPN: DST 55215
GEARBOX FIXING NUT TO THE BELL Ø 12 X 1.5 X 10
# 073
MPN: GRN 50669
CENTERING DUTCH BETWEEN HEAD AND BASE
# 074
MPN: TN 57589
OIL AND WATER LINE CAPS Ø 24 X 1.5
# 075
MPN: TN48178
CAP TO CLOSE THE HOLE IN THE CENTRAL BASE DUCT Ø 20 X 1.5 X 12
# 076
MPN: GN 51444
GASKET FOR HOLE CLOSING CAP IN THE CENTRAL DUCT
# 077
MPN: RNT47210
WASHER
# 078
MPN: DNT 47080
NUT
# 079
MPN: DST 87465
NUT
# 080
MPN: 107/2 MB 63817
SUPPORT
# 080
MPN: 120 CT 82186
SUPPORT
# 080
MPN: GN 33916
Guanizione Ø 20 X 26 X 0.5 per chiusura toro galoppino nel basamento
# 081
MPN: 107/1 MT 62823
LH Head Gasket 4700 cc.
# 083
MPN: PN 32662
STUD
# 084
MPN: RSN 3 2 6 3 5
WASHER
# 085
MPN: DNT. 47031
NUT
# 086
MPN: PN 49103
STUD
# 089
MPN: TN 33915
KNOCK HOLE CLOSING CAP IN THE BASE Ø 20 X 1.5
# 090
MPN: 107 MD 55975
LOCKING PLATE FOR TRIPLE GEAR SHAFT
# 091
MPN: RSN/32690
WASHER
# 092
MPN: PN46589
STUD
# 093
MPN: 115 MB 63266
OIL BULKHEAD IN THE SUMP
# 094
MPN: BNT 47016
Bullona fissaggio paratia olio nella coppa Ø 6 X 1 X 10
# 095
MPN: RDI 53699
WASHER
# 096
MPN: TN 50677
OIL DRAIN PLUG FROM THE CUP Ø 6 X 1 X 10
# 097
MPN: GN33367
GASKET OR SEAL
# 098
MPN: TN 65617
Cap to close the water drain hole Ø 10 X 1.5 X 15
# 099
MPN: GN 47208
GASKET OR SEAL
This part replaces part number 47208
# 100
MPN: DST 48038
NUT
# 101
MPN: GOM 54022
OIL SEAL RUBBER ON THE SUCTION PIPE Ø 34.6 X 39.7 X 3.65
# 102
MPN: 115 MB 64029
GASKET OR SEAL
# 103
MPN: DNT 77777
NUT
# 105
MPN: 115 MB 67878
Index for ignition advance reading
# 106
MPN: GOM 50315.
GOMMINO Ø 70 X 1.2 TENUTA SULLE CANNE
# 117
MPN: PN. 55135
STUD
