003 - moving parts

Maserati Khamsin Moving parts Parts Diagram

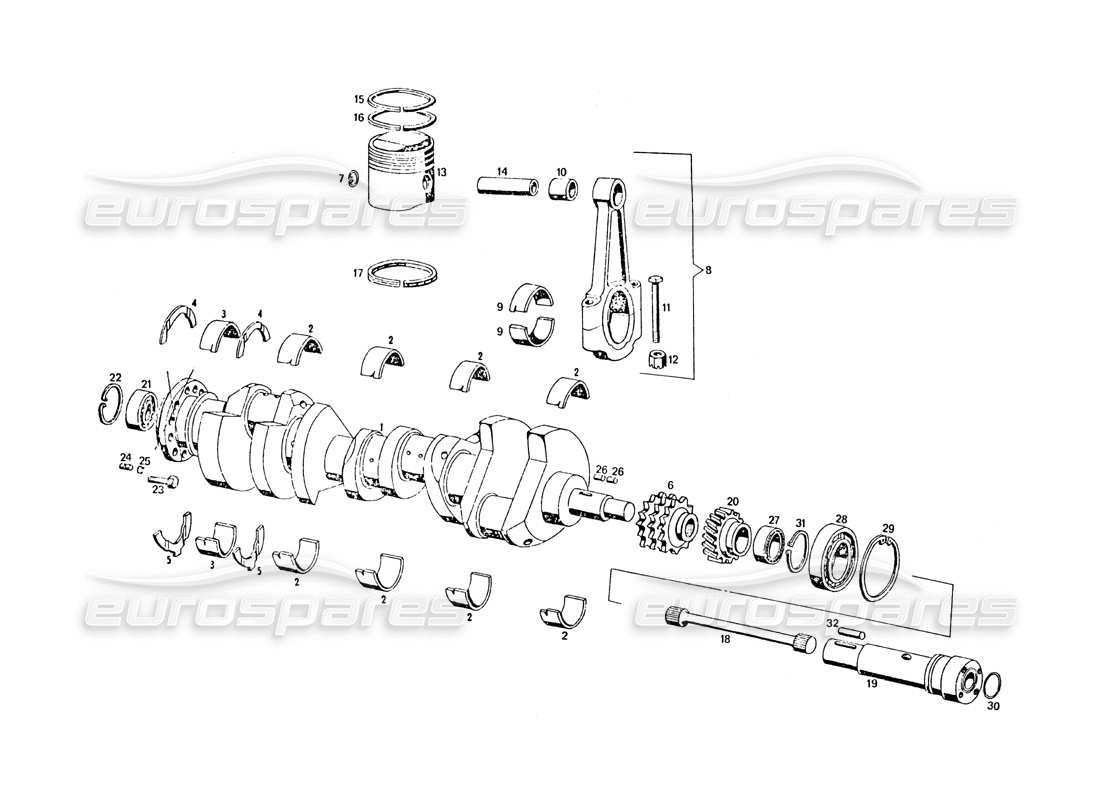

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 116/A MM 116.130
                                                                  CRANKSHAFT BALANCED
                                                                  CRANKSHAFT BALANCED Genuine Maserati Part - New (to order)
                                                                  # 002
                                                                  MPN: 103241250484
                                                                  CENTRAL MAIN BEARING
                                                                  Central and front main bearing Genuine Maserati Part - New (to order)
                                                                  # 002
                                                                  MPN: 107/3 67250
                                                                  ALBERO MANOVELLA
                                                                  ALBERO MANOVELLA Genuine Maserati Part - New (to order)
                                                                  # 003
                                                                  MPN: 101 2422 48728
                                                                  REAR CRANKSHAFT BEARING
                                                                  REAR CRANKSHAFT BEARING Genuine Maserati Part - New (to order)
                                                                  # 004
                                                                  MPN: 101243048737
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 005
                                                                  MPN: 101243248738
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 006
                                                                  MPN: 107/3 MM 67251
                                                                  Distribution control gear on the crankshaft
                                                                  Ingranagglo comando distribuzione sull'albero motore Genuine Maserati Part - New (to order)
                                                                  # 007
                                                                  MPN: 107MM57318
                                                                  RETAINER FOR PIN
                                                                  RETAINER FOR PIN Genuine Maserati Part - New (to order)
                                                                  # 008
                                                                  MPN: 116 MM 116008
                                                                  BIEILA E CAPPPELLO COMPLETA
                                                                  Connecting rod and cap complete with bolts and bushing Genuine Maserati Part - New (to order)
                                                                  # 008
                                                                  MPN: 117 MM 116.009
                                                                  CONNECTING ROD COMPLETE WITH PIN AND BUSH
                                                                  CONNECTING ROD COMPLETE WITH PIN AND BUSH Genuine Maserati Part - New (to order)
                                                                  # 009
                                                                  MPN: 107.2504.52011
                                                                  BUSHING FOR CONNECTING ROD
                                                                  from £104.40
                                                                  from £104.40
                                                                  BUSHING FOR CONNECTING ROD Genuine Maserati Part - New (to order)
                                                                  # 010
                                                                  MPN: 103 2520 52032
                                                                  BUSHING FOR CONNECTING ROD
                                                                  from £37.00
                                                                  from £37.00
                                                                  BUSH Genuine Maserati Part - New (to order)
                                                                  # 011
                                                                  MPN: 103.2530.52185
                                                                  BOLT
                                                                  BOLT Genuine Maserati Part - New (to order)
                                                                  # 012
                                                                  MPN: 103.2532.50756
                                                                  NUT
                                                                  NUT Genuine Maserati Part - New (to order)
                                                                  # 013
                                                                  MPN: 115.05 MM 70448
                                                                  Pistone per canna Ø 93.9
                                                                  from £752.42
                                                                  from £752.42
                                                                  Pistone per canna Ø 93.9 Genuine Maserati Part - New (to order)
                                                                  # 014
                                                                  MPN: 101 - 2702 46431
                                                                  SPINOTTO PER PISTONE
                                                                  from £528.63
                                                                  from £528.63
                                                                  SPINOTTO PER PISTONE Genuine Maserati Part - New (to order)
                                                                  # 015
                                                                  MPN: 115 0349 MM 71826
                                                                  STEP SEAL SEGMENT (UPPER)
                                                                  SEAL SEGMENT WITH STEP (UPPER) 4700 CC Genuine Maserati Part - New (to order)
                                                                  # 016
                                                                  MPN: 115.0349 MM 70656
                                                                  SEGMENTO DI TENUTA CONICO (INFERIORE)
                                                                  SEGMENTO DI TENUTA CONICO (INFERIORE) Genuine Maserati Part - New (to order)
                                                                  # 017
                                                                  MPN: 115.0349 MM 70657
                                                                  RASCHIAOLIO
                                                                  RASCHIAOLIO Genuine Maserati Part - New (to order)
                                                                  # 018
                                                                  MPN: 107.07.47 MM 68465
                                                                  FRONT PULLEY TOW BAR
                                                                  FRONT PULLEY TOW BAR Genuine Maserati Part - New (to order)
                                                                  # 019
                                                                  MPN: 107.07.47 MM 68464
                                                                  Front pulley hub
                                                                  Front pulley hub Genuine Maserati Part - New (to order)
                                                                  # 020
                                                                  MPN: 107/3 MM 67254
                                                                  PRIMARY GEAR FOR GENERATOR CONTROL
                                                                  Ingranagglo primarlo comando spinterogeno Genuine Maserati Part - New (to order)
                                                                  # 021
                                                                  MPN: CSC46424
                                                                  BEARING Ø 17 X 47 X 14 ON THE REAR SIDE CRANKSHAFT
                                                                  Bearing on rear crankshaft Genuine Maserati Part - New (to order)
                                                                  # 022
                                                                  MPN: ART/46284
                                                                  SEEGER 47 I ON THE REAR SIDE CRANKSHAFT
                                                                  SEEGER RING Genuine Maserati Part - New (to order)
                                                                  # 023
                                                                  MPN: BN 65982
                                                                  BOLT
                                                                  BOLT Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: GRN44931
                                                                  GRAIN Ø 10 X 15 BETWEEN FLYWHEEL AND CRANKSHAFT
                                                                  Grain between flywheel and crankshaft Genuine Maserati Part - New (to order)
                                                                  # 025
                                                                  MPN: ART/49644
                                                                  LOCKING RING Ø 8.5 FOR SAID
                                                                  RING Genuine Maserati Part - New (to order)
                                                                  # 026
                                                                  MPN: RUL55977
                                                                  ROLLER Ø 5 X 5 FOR DRIVING THE OIL GEAR
                                                                  Rullino Ø 5 traino pompa olio Genuine Maserati Part - New (to order)
                                                                  # 027
                                                                  MPN: CSC 67260
                                                                  Roller bearing Ø 35 X 52 X 20 on the rear front cover
                                                                  Roller bearing Ø 35 X 52 X 20 on the rear front cover Genuine Maserati Part - New (to order)
                                                                  # 028
                                                                  MPN: CSC49764
                                                                  CUSCINETTO Ø 20 X 47 X 14 SULLA PULEGGIA TENDICINGHIA
                                                                  Bearing for water pump control pulley Genuine Maserati Part - New (to order)
                                                                  # 029
                                                                  MPN: ART/46284
                                                                  ANELLO D'ARRESTO Ø 47 PER DETTO
                                                                  SEEGER RING Genuine Maserati Part - New (to order)
                                                                  # 030
                                                                  MPN: GOM 55510
                                                                  FRONT PULLEY RUBBER
                                                                  Rubber for front pulley Genuine Maserati Part - New (to order)
                                                                  # 031
                                                                  MPN: ART 49584
                                                                  RETAINING RING Ø 40 E. FOR BEARING SEAL ON THE FRONT COVER
                                                                  RING Genuine Maserati Part - New (to order)
                                                                  # 032
                                                                  MPN: RUL 47881
                                                                  ROLLER DRIVING GEARS OF RECOVERY OIL PUMP
                                                                  ROLLER DRIVING GEARS OF RECOVERY OIL PUMP Genuine Maserati Part - New (to order)
