040 - Conditioning Compressor

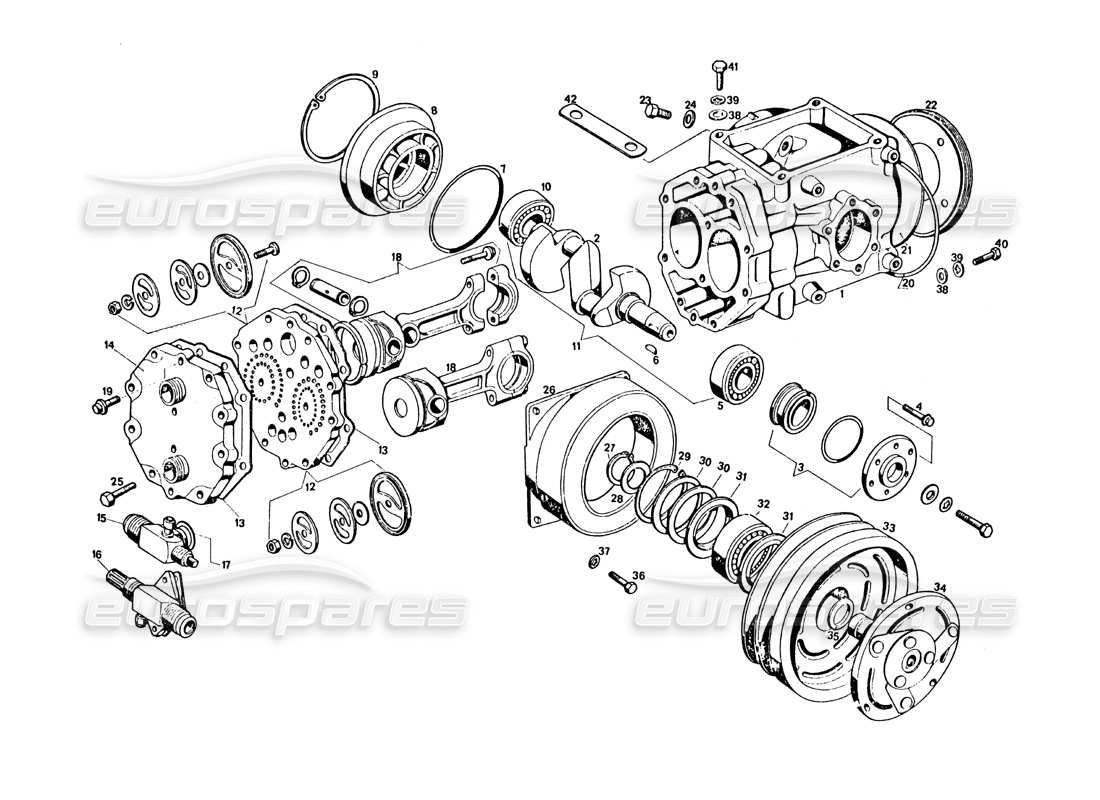

Maserati Khamsin Conditioning compressor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
116/8 BR 82087
Compressore completo Tp. ASPERA HG 700 AP
#
001
MPN:
120 BR 84601
SUPPORT
#
002
MPN:
120 BR 84579
CRANKSHAFT
#
003
MPN:
120 BR 84580
OVERALL SEALING KIT
#
004
MPN:
VNT 84581
SCREW
#
005
MPN:
CSC 84582
CUSCINETTO ANTERIORE
#
006
MPN:
120 BR 84583
Key
#
007
MPN:
GOM 84605
REAR PLATE RUBBER
#
008
MPN:
120 BR 84585
REAR COVER PLATE
#
009
MPN:
ART 84586
REAR PLATE ELASTIC RING
#
010
MPN:
CSC 84587
REAR BEARING
#
011
MPN:
120 BR 84588
CRANKSHAFT AND BEARING KIT
#
012
MPN:
120 BR 84589
VALVE PLATE KIT
#
013
MPN:
120 BR 84590
GASKET OR SEAL
#
014
MPN:
120 BR 84591
TESTA CILINDRO PER VALVOLE ROTALOCK
#
015
MPN:
120 BR 84592
CORREDO VALVOLA ASPIRAZIONE ROTALOCK
#
016
MPN:
120 BR 84593
CORREDO VALVOLA FLANGIATA COMPLETA (A RICHIESTA)
#
017
MPN:
120 BR 84594
GASKET OR SEAL
#
018
MPN:
120 BR 84595
CORREDO BIELLA PISTONO (NORMALE)
#
018
MPN:
120 BR 84596
CORREDO BIELLA PISTONE (MAGGIORATA)
#
019
MPN:
VNT 84597
VITA TESTA CILINDRO VALVOLA ROTALOCK
#
020
MPN:
GOM 84598
LOWER PLATE RUBBER
#
021
MPN:
120 BR 84599
LOWER PLATE
#
022
MPN:
120 BR 84600
Bottom plate fixing ring nut
#
023
MPN:
VNT 84602
SCREW
#
024
MPN:
120 BR 84603
GASKET OR SEAL
#
025
MPN:
VNT 84604
SCREW
#
026
MPN:
107 BR 54534
FRIZIONE ELETTROMAGNETICA TP. BARUFFALDI COMPLETA
#
027
MPN:
ART 47848
ANELLO D'ARRESTO Ø 28 PER DETTO
#
028
MPN:
107 BR 66087
DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
#
029
MPN:
ART 46754
INTERNAL Ø 62 STOPPING RING FOR SAID
#
030
MPN:
107 BR 66086
DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
#
031
MPN:
ANT 45425
Parapolvere Ø 36,5X62X3 per cuscinetto
#
032
MPN:
CSC 43387
Cuscinetto Ø 30X62X20 per detto
#
033
MPN:
117 BR 78299
PULLEY FOR ELECTROMAGNETIC CLUTCH
#
034
MPN:
107 BR 66084
Disco d'innesto per elettrocalamita
#
035
MPN:
107 BR 66085
Disco di rasamento tra puleggia e disco d'innesto
#
036
MPN:
BNT 49969
BOLT
#
037
MPN:
RDI53899
WASHER
#
038
MPN:
RNT52733
WASHER
#
039
MPN:
RDI54211
WASHER
#
040
MPN:
BNT 55118
BOLT
#
041
MPN:
BNT 55,117
BOLT
#
042
MPN:
107 BR 66548
SPACER FOR AIR CONDITIONING COMPRESSOR
