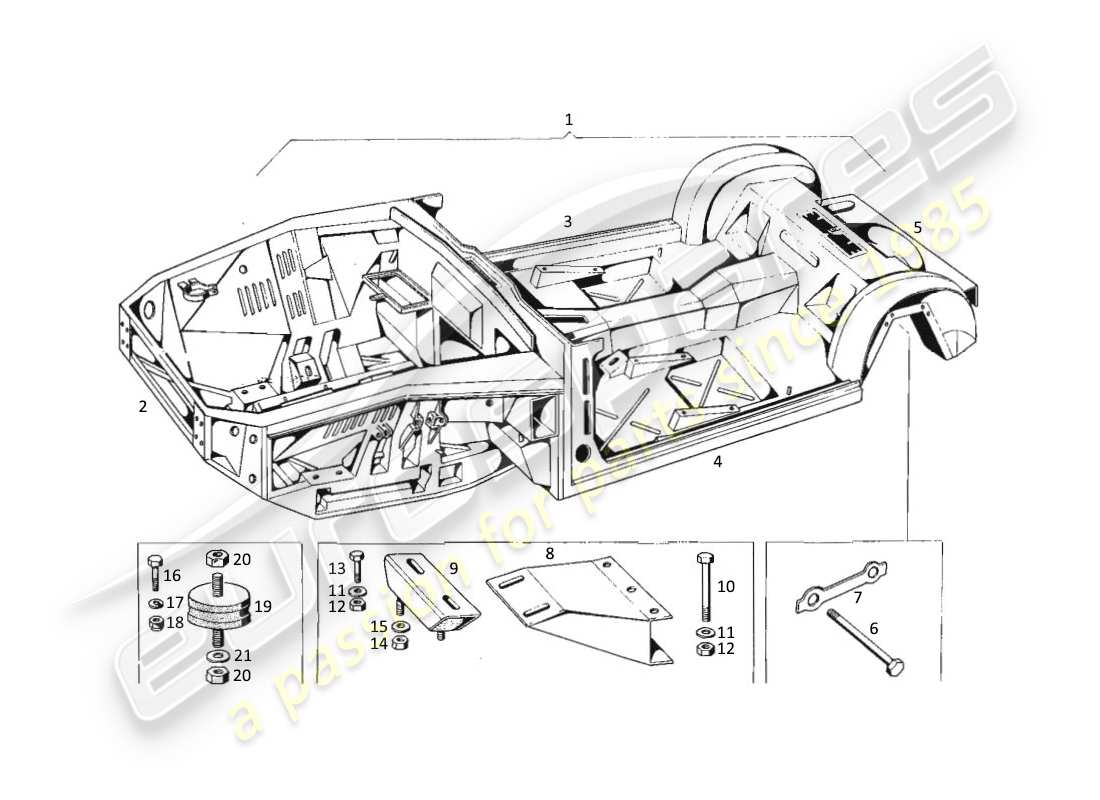

Maserati Kyalami Frame Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 329.29.00.00
FRAME ASSEMBLY
# 002
MPN: 329.21.00.00
FRONT CROSS MEMBER ASSEMBLY
# 003
MPN: 329.25.64.00
RIGHT SPAR ASSEMBLY
# 004
MPN: 329.25.63.00
LEFT SPAR ASSEMBLY
# 005
MPN: 329.28.00.00
REAR FRAME ASSEMBLY
# 006
MPN: BNT54001
BOLT 10X1.5X110 FOR FIXING THE ALTERNATOR
# 007
MPN: 329-18-62-00
RETAINER
# 008
MPN: 329.14.14.00
GEARBOX SUPPORT ASSEMBLY
# 009
MPN: 329158300
ENGINE SUPPORT
from £79.56
from £79.56
# 010
MPN: BNT 91062
BOLT 12X1.75X110
# 011
MPN: RSN/33114
WASHER
# 012
MPN: DST 68048
STOP NUT 12X1.75
# 013
MPN: BNT 56965
BOLT
# 014
MPN: DST 90386
STOP NUT
# 015
MPN: RNT47210
FLAT WASHER
# 016
MPN: BNT 89916
BOLT 6X1X25
# 017
MPN: RNT 84154
WASHER
# 018
MPN: DST 51417
STOP NUT 6X1
# 019
MPN: 329268700
ENGINE SUPPORT
from £32.50
from £32.50
# 020
MPN: DST 55222
NUT 12X1.75
# 021
MPN: RNT 88658
WASHER 12X24X3
