01.43.4 - fuel pumps and connection lines

Maserati Levante Modena (2022) FUEL PUMPS AND CONNECTION LINES Parts Diagram

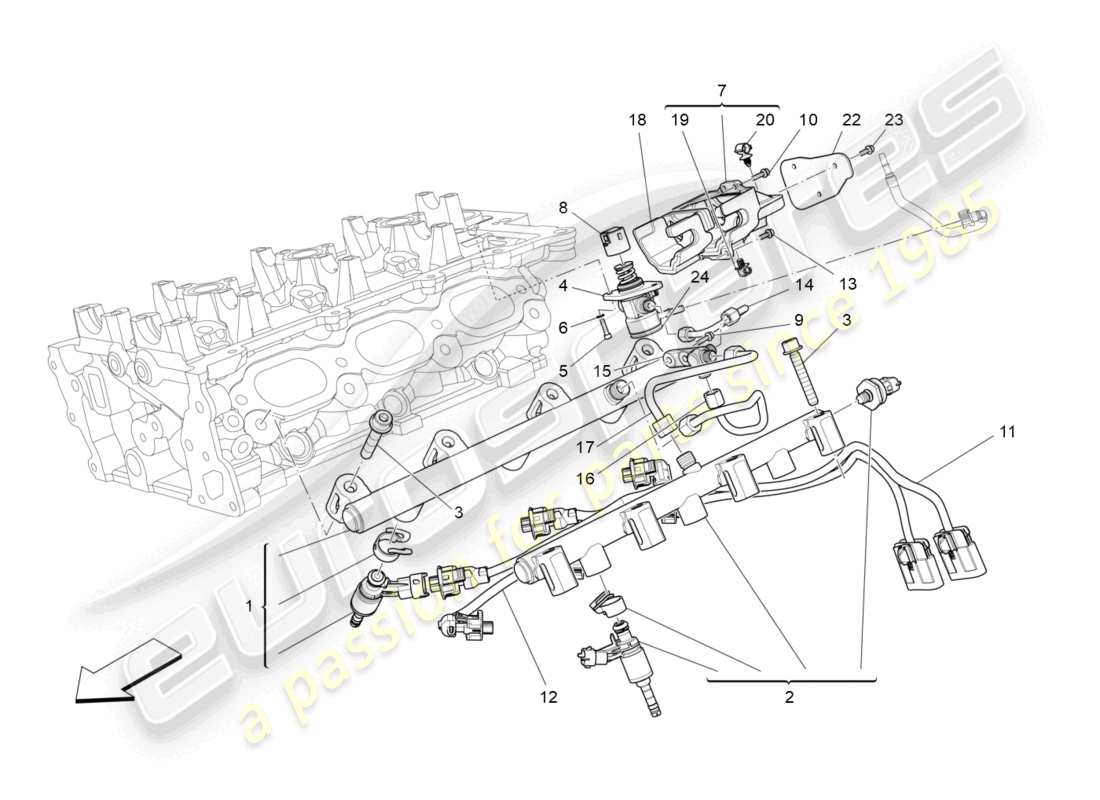

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 327913
                                          RH FUEL PIPE WITH INJECTORS #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                          Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
                                          from £797.43
                                          from £797.43
                                          This part replaces part number 284176
                                          TUBO BENZINA COMPLETE DI INIETTOR Genuine Maserati Part - New (to order)
                                          # 001
                                          MPN: 815679
                                          RH FUEL PIPE WITH INJECTORS #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                          Valid from assembly: 6072512. Suitable for cars with: EU6D Final. Not for cars with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: CHILE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
                                          from £462.68
                                          from £462.68
                                          RAIL DX 350HP EU6C Genuine Maserati Part - New (to order)
                                          # 002
                                          MPN: 327914
                                          LH FUEL PIPE WITH INJECTORS #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                          Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
                                          from £870.65
                                          from £870.65
                                          TUBO BENZINA COMPLETE DI INIETTOR Genuine Maserati Part - New (to order)
                                          # 002
                                          MPN: 815680
                                          LH FUEL PIPE WITH INJECTORS #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                          Valid from assembly: 6072512. Suitable for cars with: EU6D Final. Not for cars with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: CHILE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
                                          from £505.16
                                          from £505.16
                                          RAIL SX 350HP EU6C Genuine Maserati Part - New (to order)
                                          # 003
                                          MPN: 285494
                                          SCREW [M8X50]
                                          from £0.57
                                          from £0.57
                                          SCREW (285494) Genuine Ferrari Part - New (to order)
                                          SCREW Genuine Maserati Part - New (to order)
                                          # 004
                                          MPN: 329202
                                          HIGH PRESSURE FUEL PUMP [NBD26 PHP099] #PLEASE, ORDER ALSO PN 333908#
                                          from £529.05
                                          from £529.05
                                          This part replaces part number 310215
                                          POMPA BENZINA A.P. M161 V6 ( Genuine Maserati Part - New (to order)
                                          # 005
                                          MPN: 14305434
                                          SCREW [M6X25]
                                          from £0.47
                                          from £0.47
                                          SCREW (14305434) Genuine Ferrari Part - New (to order)
                                          SOCKET HEAD SCREW M 6X 25 Genuine Maserati Part - New In stock
                                          # 006
                                          MPN: 12639724
                                          WASHER [D.6.15-11X1]
                                          from £0.47
                                          from £0.47
                                          WASHER (12639724) Genuine Ferrari Part - New In stock
                                          WASHER Genuine Maserati Part - New (to order)
                                          # 007
                                          MPN: 309114
                                          CPL. ACOUSTIC COVER
                                          from £131.79
                                          from £131.79
                                          COMPLETE SOUND SHIELD (V6 M161) Genuine Maserati Part - New (to order)
                                          # 009
                                          MPN: 231620
                                          SCREW [M6X25]
                                          from £0.47
                                          from £0.47
                                          SCREW (231620) Genuine Ferrari Part - New In stock
                                          SOCKET HEAD SCREW WITH WASHE Genuine Maserati Part - New (to order)
                                          # 010
                                          MPN: 231619
                                          SCREW [M6X22]
                                          from £0.47
                                          from £0.47
                                          SCREW (231619) Genuine Ferrari Part - New In stock
                                          SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                          # 011
                                          MPN: 296209
                                          RH CABLE
                                          from £188.65
                                          from £188.65
                                          RH CABLE Genuine Maserati Part - New (to order)
                                          # 012
                                          MPN: 311644
                                          LH CABLE
                                          from £51.72
                                          from £51.72
                                          LH INJECTION HARNESS Genuine Maserati Part - New (to order)
                                          # 013
                                          MPN: 231617
                                          SCREW [M6X18]
                                          from £0.47
                                          from £0.47
                                          SCREW (231617) Genuine Ferrari Part - New In stock
                                          SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New (to order)
                                          # 014
                                          MPN: 310550
                                          HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                          from £52.69
                                          from £52.69
                                          DISTRIBUTOR-PUMP HIGH PRESSURE FU Genuine Maserati Part - New (to order)
                                          # 015
                                          MPN: 287494
                                          DISTRIBUTOR
                                          Valid from engine: 0 - 208324.
                                          Supersession
                                          Supersession
                                          Genuine Maserati Part (no longer available to order)
                                          # 015
                                          MPN: 298649
                                          DISTRIBUTOR
                                          from £131.67
                                          from £131.67
                                          This part replaces part number 287494
                                          PUMP-RAIL CUBE DISTRIBUTOR Genuine Maserati Part - New (to order)
                                          # 016
                                          MPN: 282572
                                          RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                          from £64.86
                                          from £64.86
                                          RH RAIL-PUMP HIGH-PRESSURE FUEL P Genuine Maserati Part - New In stock
                                          # 017
                                          MPN: 282571
                                          LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                          from £57.59
                                          from £57.59
                                          LH RAIL-PUMP HIGH-PRESSURE FUEL P Genuine Maserati Part - New In stock
                                          # 018
                                          MPN: 302810
                                          SOUNDPROOFING ELEMENT
                                          from £36.81
                                          from £36.81
                                          GDI PUMP SILENCER Genuine Maserati Part - New (to order)
                                          # 019
                                          MPN: 283287
                                          CLIP
                                          from £0.47
                                          from £0.47
                                          CLIP (283287) Genuine Ferrari Part - New (to order)
                                          CLIP Genuine Maserati Part - New (to order)
                                          # 020
                                          MPN: 303438
                                          CLIP
                                          from £0.47
                                          from £0.47
                                          CLIP (303438) Genuine Ferrari Part - New (to order)
                                          CLIP Genuine Maserati Part - New (to order)
                                          # 022
                                          MPN: 670030185
                                          PLATE
                                          from £18.48
                                          from £18.48
                                          PIASTRA DI COPERTURA POMPA B Genuine Maserati Part - New (to order)
                                          # 023
                                          MPN: 675000173
                                          SCREW [M6X16]
                                          from £1.26
                                          from £1.26
                                          VITE TCE M6X16 ROS. CON.EL.I Genuine Maserati Part - New (to order)
                                          # 024
                                          MPN: 333908
                                          DAMPER #PLEASE, ORDER ONLY IF YOU NEED REPLACE GDI HIGH PRESSURE FUEL PUMP#
                                          from £9.08
                                          from £9.08
                                          DAMPER POMPA GDI V6 M161 Genuine Maserati Part - New (to order)
                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
