maserati levante tributo (2021) silencers parts diagram

01.81.2 - silencers

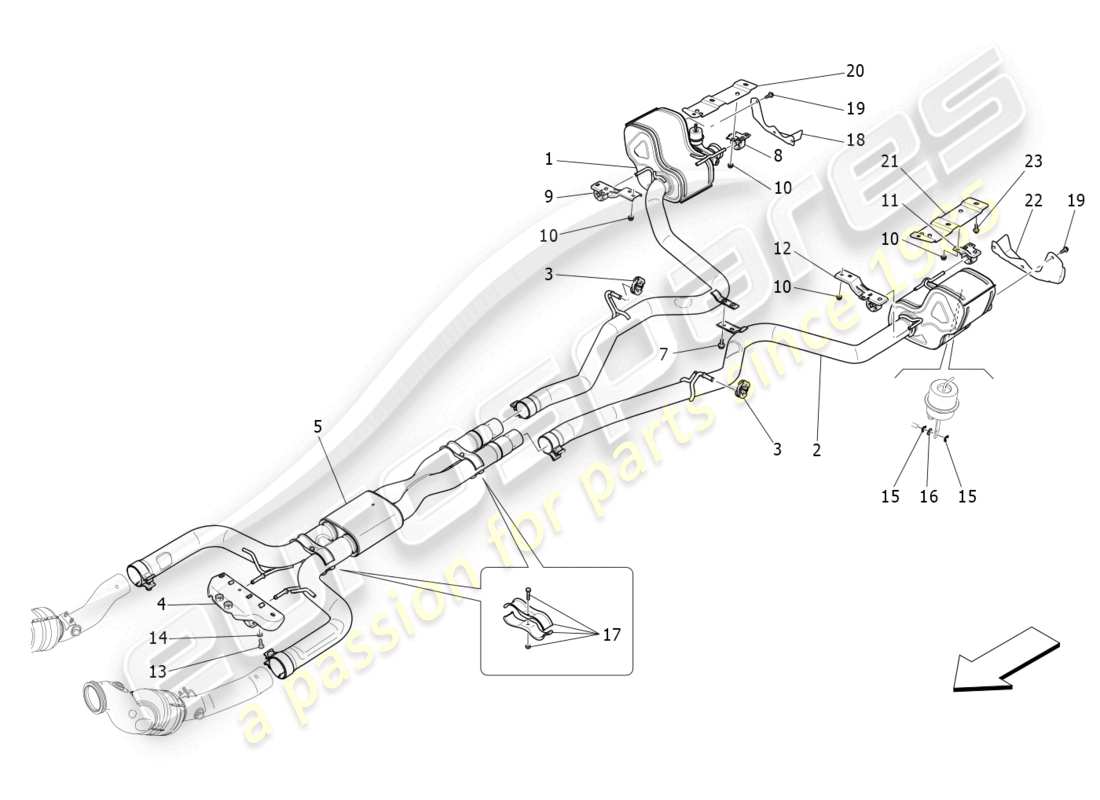

Maserati Levante Tributo (2021) SILENCERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 670157998
                        REAR RH MUFFLER
                        Valid from assembly: 6072512 - 6089358. Suitable for cars with: EU6D Final. Not for cars with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: 3.0 BT V6 4WD 350 HP | ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
                        from £1,308.05
                        from £1,308.05
                        REAR RH MUFFLER Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 670157998
                        REAR RH MUFFLER
                        Valid from assembly: 6075070 - 6089358. Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: 3.0 BT V6 4WD 350 HP | ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
                        from £1,308.05
                        from £1,308.05
                        REAR RH MUFFLER Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 670157999
                        REAR RH MUFFLER
                        Valid from assembly: 6072512 - 6091039. Suitable for cars with: EU6D Final. Not for cars with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: 3.0 BT V6 4WD 430 HP | ITALY, JAPAN (RH DRIVE), UNITED KINGDOM
                        from £1,400.89
                        from £1,400.89
                        This part replaces part number 670152792
                        REAR RH MUFFLER Genuine Maserati Part - New (to order)
                        # 001
                        MPN: 670158000
                        REAR RH MUFFLER
                        Valid from assembly: 6074996 - 6089899. Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: AUSTRALIA, JAPAN (RH DRIVE)
                        from £1,266.55
                        from £1,266.55
                        REAR RH MUFFLER Genuine Maserati Part - New (to order)
                        # 002
                        MPN: 670157995
                        REAR LH MUFFLER
                        Valid from assembly: 6072512 - 6089358. Suitable for cars with: EU6D Final. Not for cars with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION.
                        from £1,308.05
                        from £1,308.05
                        This part replaces part number 670152788
                        REAR LH MUFFLER Genuine Maserati Part - New (to order)
                        # 002
                        MPN: 670157995
                        REAR LH MUFFLER
                        Valid from assembly: 6074866 - 6089358. Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION.
                        from £1,308.05
                        from £1,308.05
                        This part replaces part number 670152788
                        REAR LH MUFFLER Genuine Maserati Part - New (to order)
                        # 002
                        MPN: 670157996
                        REAR LH MUFFLER
                        Valid from assembly: 6072512 - 6091039. Suitable for cars with: EU6D Final. Not for cars with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: 3.0 BT V6 4WD 430 HP | ITALY, JAPAN (RH DRIVE), UNITED KINGDOM
                        from £1,344.68
                        from £1,344.68
                        This part replaces part number 670152789
                        REAR LH MUFFLER Genuine Maserati Part - New (to order)
                        # 003
                        MPN: 675001949
                        FLEXIBLE PAD
                        Valid from assembly: 6079467.
                        from £12.21
                        from £12.21
                        This part replaces part number 675000059
                        SMALL BLOCK Genuine Maserati Part - New In stock
                        # 004
                        MPN: 670003897
                        CENTRAL BRACKET
                        from £52.59
                        from £52.59
                        CENTRAL BRACKET Genuine Maserati Part - New (to order)
                        # 005
                        MPN: 670103687
                        CENTRAL SILENCER
                        Valid from assembly: 6053787. Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: AUSTRALIA, JAPAN, JAPAN (RH DRIVE)
                        from £309.14
                        from £309.14
                        This part replaces part number 670009469 - and 1 more. Click to view details
                        CENTRAL MUFFLER Genuine Maserati Part - New (to order)
                        CENTRAL MUFFLER Genuine Maserati Part - Used In stock
                        # 005
                        MPN: 670104959
                        CENTRAL SILENCER
                        Valid from assembly: 6072512. Suitable for cars with: EU6D Final. Not for cars with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
                        from £439.74
                        from £439.74
                        CENTRAL SILENCER Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 675000705
                        SCREW
                        from £1.13
                        from £1.13
                        SCREW Genuine Maserati Part - New (to order)
                        # 008
                        MPN: 670031936
                        RH REAR SILENCER SUPPORT
                        from £11.40
                        from £11.40
                        RH REAR SILENCER SUPPORT Genuine Maserati Part - New (to order)
                        # 009
                        MPN: 670031934
                        RH FRONT SILENCER SUPPORT
                        Valid from assembly: 0 - 6087716.
                        from £17.04
                        from £17.04
                        RH REAR BRACKET EXHAUST PIPE Genuine Maserati Part - New In stock
                        # 010
                        MPN: 675000328
                        NUT
                        from £0.86
                        from £0.86
                        NUT Genuine Maserati Part - New (to order)
                        # 011
                        MPN: 670034561
                        LH REAR SILENCER SUPPORT
                        from £6.90
                        from £6.90
                        LH REAR SILENCER SUPPORT Genuine Maserati Part - New (to order)
                        LH REAR SILENCER SUPPORT Genuine Maserati Part - Used In stock
                        # 012
                        MPN: 670031935
                        LH FRONT SILENCER SUPPORT
                        Valid from assembly: 0 - 6087716.
                        Supersession
                        Supersession
                        Genuine Maserati Part (no longer available to order)
                        # 013
                        MPN: 675000774
                        SCREW
                        from £1.13
                        from £1.13
                        SCREW Genuine Maserati Part - New (to order)
                        # 014
                        MPN: 675000089
                        WASHER [D.8.15-17X2]
                        from £0.74
                        from £0.74
                        WASHER Genuine Maserati Part - New (to order)
                        # 015
                        MPN: 673003135
                        LOCK RING
                        from £65.69
                        from £65.69
                        LOCK RING Genuine Maserati Part - New (to order)
                        # 016
                        MPN: 673003136
                        ELASTIC WASHER
                        from £69.13
                        from £69.13
                        ELASTIC WASHER Genuine Maserati Part - New (to order)
                        # 017
                        MPN: 673003961
                        KIT EXHAUST SILENCER SUPPORT
                        from £59.72
                        from £59.72
                        CENTRAL SILENCER KIT Genuine Maserati Part - New (to order)
                        # 019
                        MPN: 675000665
                        SCREW
                        from £1.39
                        from £1.39
                        This part replaces part number 675001161
                        SC/HEX.HD FLANGE M6 X 12 Genuine Maserati Part - New (to order)
                        # 020
                        MPN: 670103213
                        RH BRACKET
                        Valid from assembly: 6023141 - 6087890. Not for cars with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW.
                        Supersession
                        Supersession
                        This part replaces part number 670034444
                        Genuine Maserati Part (no longer available to order)
                        # 021
                        MPN: 670103214
                        LH BRACKET
                        Valid from assembly: 6023141 - 6087890. Not for cars with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW.
                        Supersession
                        Supersession
                        This part replaces part number 670034466
                        Genuine Maserati Part (no longer available to order)
                        # 023
                        MPN: 675000761
                        SCREW
                        Not for cars with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW.
                        from £1.96
                        from £1.96
                        SCREW Genuine Maserati Part - New (to order)
