maserati mc20 (2024) underbody and underfloor guards parts diagram

09.14.1 - underbody and underfloor guards

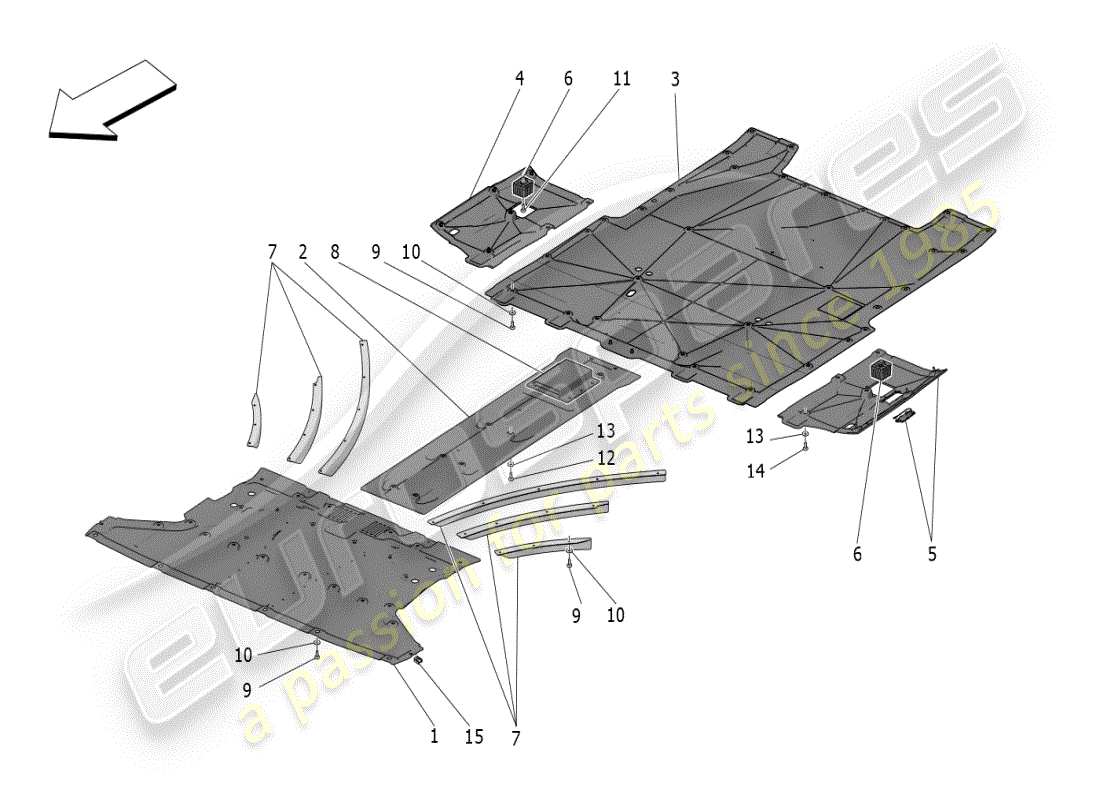

Maserati MC20 (2024) UNDERBODY AND UNDERFLOOR GUARDS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 670158288
                        FRONT UNDERBODY GUARD
                        from £296.65
                        from £296.65
                        COVER Genuine Maserati Part - New (to order)
                        # 002
                        MPN: 670215318
                        CENTRAL UNDERFLOOR GUARD
                        from £131.68
                        from £131.68
                        COVER Genuine Maserati Part - New (to order)
                        # 003
                        MPN: 670302469
                        CENTRAL AERODYNAMIC UNDERFLOOR CPL.
                        Valid from assembly:7002375.Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                        from £1,745.06
                        from £1,745.06
                        COMPLETE CENTRAL AERODYNAMIC BOTTOM Genuine Maserati Part - New (to order)
                        # 004
                        MPN: 670158283
                        RH CENTER AERODYNAMIC UNDERFLOOR
                        from £58.41
                        from £58.41
                        COVER Genuine Maserati Part - New (to order)
                        # 005
                        MPN: 670158284
                        LH CENTER AERODYNAMIC UNDERFLOOR
                        from £67.74
                        from £67.74
                        COVER Genuine Maserati Part - New (to order)
                        # 006
                        MPN: 670158810
                        REAR JACKING PAD
                        from £8.03
                        from £8.03
                        REAR JACKING PAD Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 670174913
                        AIR DAMS
                        from £275.69
                        from £275.69
                        AIR DAMS Genuine Maserati Part - New (to order)
                        # 008
                        MPN: 670162176
                        BRACKET
                        Suitable for:USA
                        from £61.61
                        from £61.61
                        BRACKET Genuine Maserati Part - New (to order)
                        # 009
                        MPN: 670308847
                        SCREW
                        Valid from assembly:7003189.
                        from £1.51
                        from £1.51
                        SCREW M6X1 Genuine Maserati Part - New (to order)
                        # 009
                        MPN: 675001343
                        SCREW
                        Valid from assembly:7002345 - 7003188.
                        from £1.37
                        from £1.37
                        SCREW Genuine Maserati Part - New (to order)
                        # 010
                        MPN: 675001364
                        WASHER
                        Valid from assembly:7002347.
                        from £1.29
                        from £1.29
                        WASHER Genuine Maserati Part - New (to order)
                        # 011
                        MPN: 675001045
                        SCREW
                        from £1.43
                        from £1.43
                        SCREW Genuine Maserati Part - New (to order)
                        # 012
                        MPN: 675001383
                        SCREW
                        from £2.18
                        from £2.18
                        SCREW Genuine Maserati Part - New In stock
                        # 013
                        MPN: 675001257
                        WASHER
                        from £1.37
                        from £1.37
                        WASHER 6X18 Genuine Maserati Part - New In stock
                        # 014
                        MPN: 675001252
                        SCREW
                        from £1.68
                        from £1.68
                        VITE Genuine Maserati Part - New (to order)
                        # 015
                        MPN: 670303713
                        CLIP
                        from £1.77
                        from £1.77
                        RETAINER CLIP Genuine Maserati Part - New (to order)
