maserati mc20 cielo (2023) fuel pumps and connection lines parts diagram

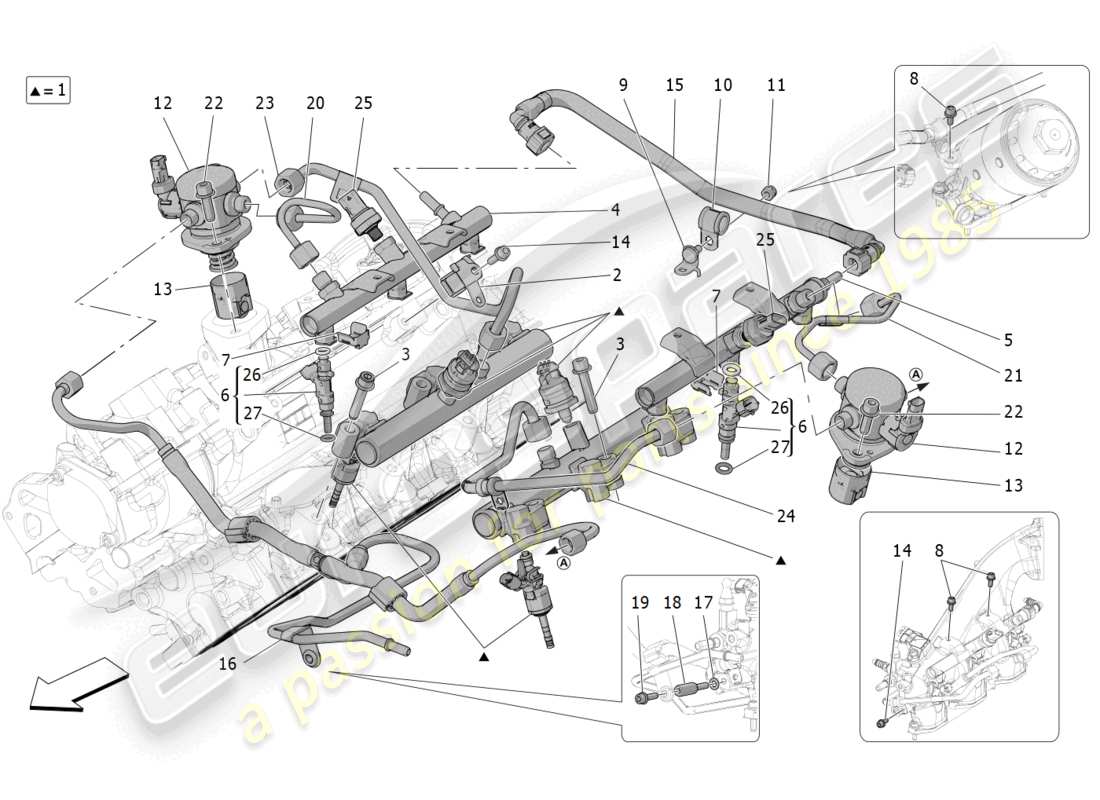

01.43.4 - fuel pumps and connection lines

Maserati MC20 Cielo (2023) FUEL PUMPS AND CONNECTION LINES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 670054352
                                                        HIGH PRESSURE FUEL PIPE WITH INJECTORS
                                                        from £1,039.73
                                                        from £1,039.73
                                                        COMPLETE RAIL Genuine Maserati Part - New (to order)
                                                        # 002
                                                        MPN: 670053155
                                                        BRACKET
                                                        from £21.14
                                                        from £21.14
                                                        BRACKET Genuine Maserati Part - New (to order)
                                                        # 003
                                                        MPN: 670053443
                                                        SCREW
                                                        from £2.63
                                                        from £2.63
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 004
                                                        MPN: 670053175
                                                        RH LOW PRESSURE FUEL PIPE
                                                        from £214.44
                                                        from £214.44
                                                        TUBO RIGIDO Genuine Maserati Part - New (to order)
                                                        # 005
                                                        MPN: 670053176
                                                        LH LOW PRESSURE FUEL PIPE
                                                        from £215.48
                                                        from £215.48
                                                        TUBO RIGIDO Genuine Maserati Part - New (to order)
                                                        # 006
                                                        MPN: 670052434
                                                        INJECTOR ASSEMBLY
                                                        from £46.22
                                                        from £46.22
                                                        INJECTOR ASSEMBLY Genuine Maserati Part - New (to order)
                                                        # 007
                                                        MPN: 670052698
                                                        CLIP
                                                        from £9.10
                                                        from £9.10
                                                        INJECTOR RETAINING CLAMP Genuine Maserati Part - New (to order)
                                                        # 008
                                                        MPN: 670051104
                                                        SCREW
                                                        from £1.47
                                                        from £1.47
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 009
                                                        MPN: 670053146
                                                        BRACKET
                                                        from £14.01
                                                        from £14.01
                                                        BRACKET Genuine Maserati Part - New (to order)
                                                        # 010
                                                        MPN: 675001412
                                                        BRACKET WITH SHEATH
                                                        from £1.89
                                                        from £1.89
                                                        BRACKET WITH SHEATH Genuine Maserati Part - New (to order)
                                                        # 011
                                                        MPN: 675001413
                                                        NUT
                                                        from £1.47
                                                        from £1.47
                                                        NUT Genuine Maserati Part - New (to order)
                                                        # 012
                                                        MPN: 670053151
                                                        fuel pump
                                                        from £309.19
                                                        from £309.19
                                                        fuel pump Genuine Maserati Part - New (to order)
                                                        # 013
                                                        MPN: 670052831
                                                        BOWL
                                                        from £21.06
                                                        from £21.06
                                                        BOWL Genuine Maserati Part - New (to order)
                                                        # 014
                                                        MPN: 670051106
                                                        SCREW
                                                        from £1.47
                                                        from £1.47
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 015
                                                        MPN: 670053228
                                                        LOW PRESSURE FUEL CONNECTION PIPE
                                                        from £43.07
                                                        from £43.07
                                                        LOW PRESSURE FUEL CONNECTION Genuine Maserati Part - New (to order)
                                                        # 016
                                                        MPN: 670053229
                                                        LOW PRESSURE FUEL PIPE
                                                        from £164.70
                                                        from £164.70
                                                        LOW PRESSURE FUEL PIPE Genuine Maserati Part - New (to order)
                                                        # 017
                                                        MPN: 675000106
                                                        WASHER
                                                        from £0.99
                                                        from £0.99
                                                        WASHER Genuine Maserati Part - New (to order)
                                                        # 018
                                                        MPN: 670050169
                                                        SCREW
                                                        from £9.10
                                                        from £9.10
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 019
                                                        MPN: 670051108
                                                        SCREW
                                                        from £1.64
                                                        from £1.64
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 020
                                                        MPN: 670053355
                                                        RH LOW PRESSURE FUEL PIPE
                                                        from £25.81
                                                        from £25.81
                                                        RH LOW PRESSURE FUEL PIPE Genuine Maserati Part - New (to order)
                                                        # 021
                                                        MPN: 670053159
                                                        LH LOW PRESSURE FUEL PIPE
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 022
                                                        MPN: 670051450
                                                        SCREW
                                                        from £1.73
                                                        from £1.73
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 023
                                                        MPN: 670053153
                                                        RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE
                                                        from £34.36
                                                        from £34.36
                                                        RH RAIL-PUMP HIGH-PRESSURE F Genuine Maserati Part - New (to order)
                                                        # 024
                                                        MPN: 670053369
                                                        LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE
                                                        from £34.36
                                                        from £34.36
                                                        LH RAIL-PUMP HIGH-PRESSURE F Genuine Maserati Part - New (to order)
                                                        # 025
                                                        MPN: 670052629
                                                        PRESSURE SENSOR
                                                        from £64.26
                                                        from £64.26
                                                        PRESSURE SENSOR Genuine Maserati Part - New (to order)
                                                        # 026
                                                        MPN: 673015364
                                                        UPPER GASKET
                                                        from £9.75
                                                        from £9.75
                                                        UPPER GASKET Genuine Maserati Part - New (to order)
                                                        # 027
                                                        MPN: 673015365
                                                        LOWER GASKET
                                                        from £4.26
                                                        from £4.26
                                                        LOWER GASKET Genuine Maserati Part - New (to order)
