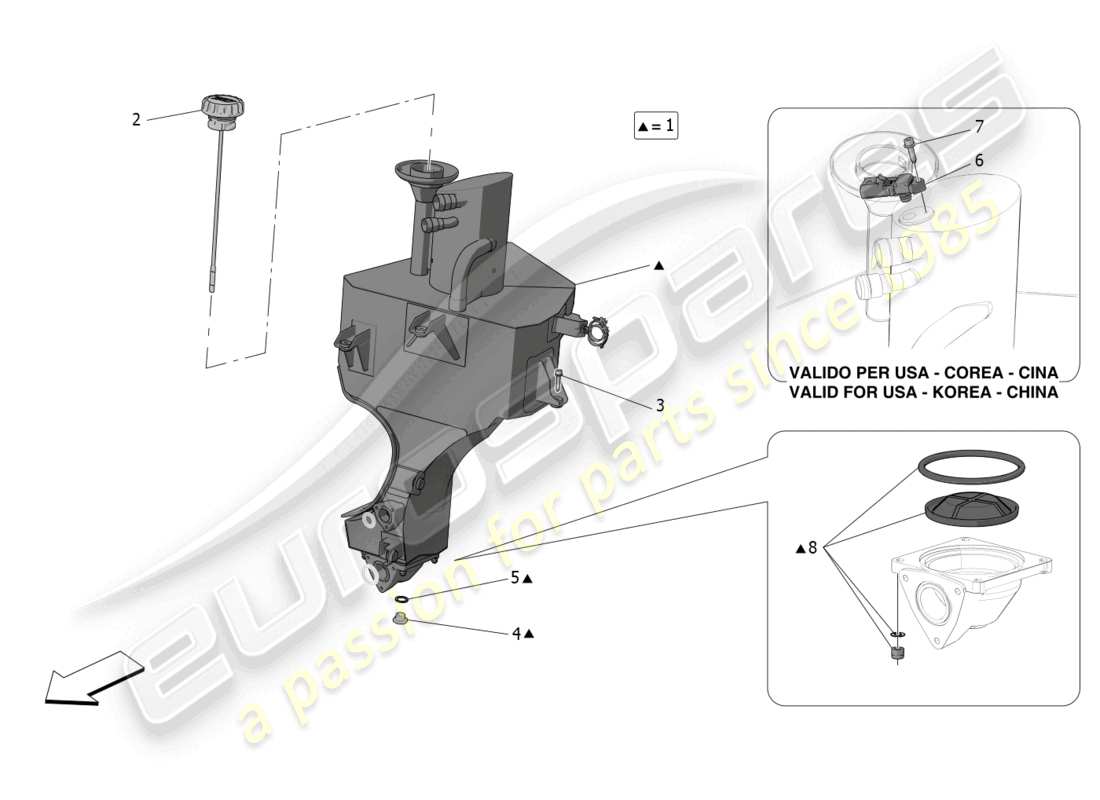

01.60.1 - lubrication system: circuit and collection
Maserati MC20 Cielo (2023) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670219406
COMPLETE OIL TANK
Suitable for: ITALY, SINGAPORE, UK
from £891.16
from £891.16
# 001
MPN: 670219407
COMPLETE OIL TANK
Suitable for: USA
from £891.16
from £891.16
# 002
MPN: 670214097
COMPLETE OIL CAP
from £54.81
from £54.81
# 003
MPN: 670051109
SCREW
from £1.47
from £1.47
# 004
MPN: 675001200
THREADED PLUG
from £9.75
from £9.75
# 005
MPN: 675000691
GASKET
from £1.21
from £1.21
This part replaces part number 10257060 which we have in stock
# 006
MPN: 670052765
PRESSURE SENSOR
Suitable for: USA
from £57.79
from £57.79
# 007
MPN: 675001312
SCREW
Suitable for: USA
from £1.73
from £1.73
# 008
MPN: 673015351
OIL TANK FILTER KIT
from £24.86
from £24.86
