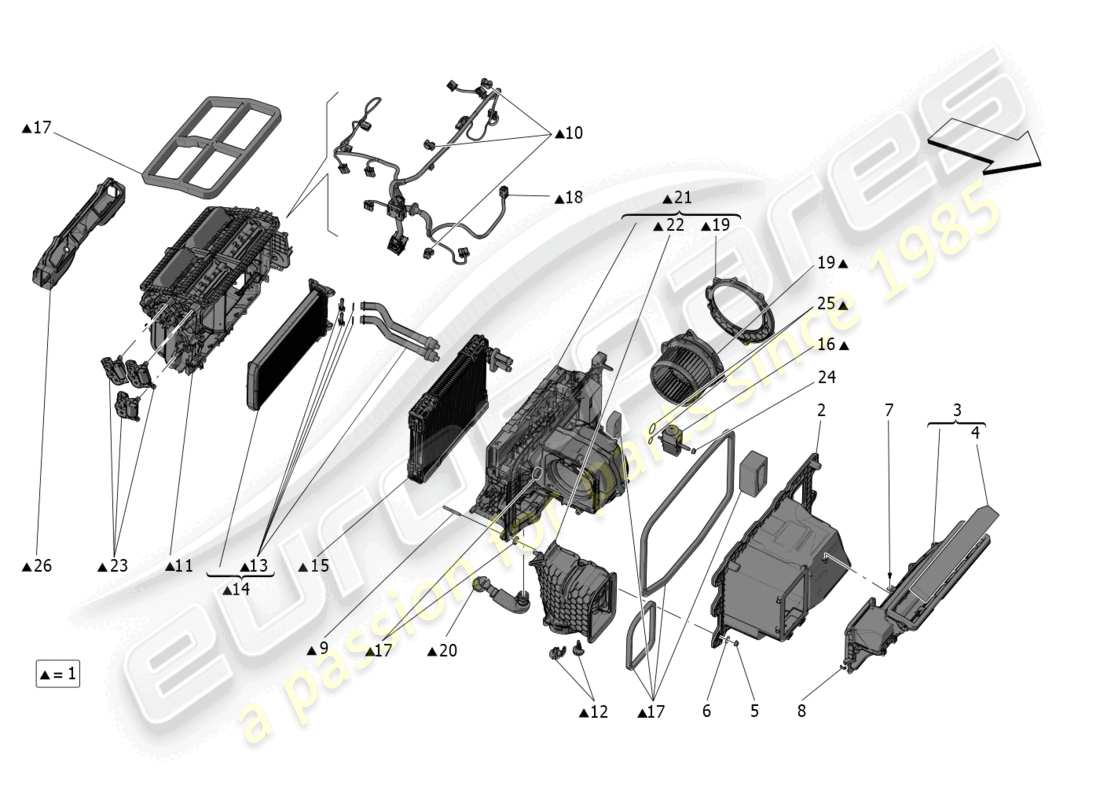

08.41.1 - a/c unit: dashboard devices

Maserati MC20 Cielo (2023) A/C UNIT: DASHBOARD DEVICES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 001
                                                  MPN: 670296462
                                                  AIR CONDITIONING ASSEMBLY
                                                  from £1,502.66
                                                  from £1,502.66
                                                  AIR CONDITIONING ASSEMBLY Genuine Maserati Part - New (to order)
                                                  # 002
                                                  MPN: 670179044
                                                  SHIELD FOR WATER
                                                  Suitable for: ITALY, USA
                                                  from £119.30
                                                  from £119.30
                                                  SHIELD FOR WATER Genuine Maserati Part - New (to order)
                                                  # 002
                                                  MPN: 670215216
                                                  SHIELD FOR WATER
                                                  Suitable for: SINGAPORE, UK
                                                  from £107.59
                                                  from £107.59
                                                  This part replaces part number 670178671
                                                  SHIELD FOR WATER Genuine Maserati Part - New (to order)
                                                  # 003
                                                  MPN: 670178670
                                                  AIR INLET MODULE
                                                  Suitable for: SINGAPORE, UK
                                                  from £1,608.80
                                                  from £1,608.80
                                                  AIR INLET MODULE Genuine Maserati Part - New (to order)
                                                  # 003
                                                  MPN: 670178996
                                                  AIR INLET MODULE
                                                  Suitable for: ITALY, USA
                                                  from £168.78
                                                  from £168.78
                                                  AIR INLET MODULE Genuine Maserati Part - New (to order)
                                                  # 004
                                                  MPN: 670215189
                                                  AIR FILTER
                                                  from £45.24
                                                  from £45.24
                                                  Cabin Air Filter Genuine Maserati Part - New (to order)
                                                  # 005
                                                  MPN: 675001186
                                                  NUT
                                                  from £1.14
                                                  from £1.14
                                                  NUT Genuine Maserati Part - New (to order)
                                                  # 006
                                                  MPN: 675001364
                                                  WASHER
                                                  from £1.26
                                                  from £1.26
                                                  WASHER Genuine Maserati Part - New (to order)
                                                  # 007
                                                  MPN: 675001115
                                                  SCREW
                                                  from £5.85
                                                  from £5.85
                                                  SCREW Genuine Maserati Part - New (to order)
                                                  # 008
                                                  MPN: 670178477
                                                  CLIP
                                                  from £0.59
                                                  from £0.59
                                                  CLIP Genuine Maserati Part - New (to order)
                                                  # 009
                                                  MPN: 673012115
                                                  STUD
                                                  from £37.61
                                                  from £37.61
                                                  THREAD INSERT M6X50.5 Genuine Maserati Part - New (to order)
                                                  # 010
                                                  MPN: 673012116
                                                  CLIP
                                                  from £7.53
                                                  from £7.53
                                                  WIRE HARNESS FIXING CLAMPS Genuine Maserati Part - New (to order)
                                                  # 011
                                                  MPN: 673014094
                                                  CENTRAL BODY
                                                  from £204.76
                                                  from £204.76
                                                  CENTRAL HVAC CORE Genuine Maserati Part - New (to order)
                                                  # 012
                                                  MPN: 673012111
                                                  AIR INLET/REC KINEMATICS
                                                  from £7.05
                                                  from £7.05
                                                  AIR INLET/REC KINEMATICS Genuine Maserati Part - New (to order)
                                                  # 013
                                                  MPN: 673012105
                                                  KIT WATER PIPES
                                                  from £25.66
                                                  from £25.66
                                                  KIT WATER PIPES Genuine Maserati Part - New (to order)
                                                  # 014
                                                  MPN: 673012106
                                                  HEATER CORE W PIPES
                                                  from £301.38
                                                  from £301.38
                                                  HEATER CORE W PIPES Genuine Maserati Part - New (to order)
                                                  # 015
                                                  MPN: 673012113
                                                  EVAPORATOR ASSEMBLY
                                                  from £388.32
                                                  from £388.32
                                                  evaporator Genuine Maserati Part - New (to order)
                                                  # 016
                                                  MPN: 673012114
                                                  TXV
                                                  from £95.03
                                                  from £95.03
                                                  TXV Genuine Maserati Part - New (to order)
                                                  # 017
                                                  MPN: 673012108
                                                  GASKET KIT
                                                  from £56.12
                                                  from £56.12
                                                  KIT SEALINGS Genuine Maserati Part - New (to order)
                                                  # 018
                                                  MPN: 673012104
                                                  A/C WIRING
                                                  from £107.90
                                                  from £107.90
                                                  A/C WIRE HARNESS Genuine Maserati Part - New (to order)
                                                  # 019
                                                  MPN: 673012112
                                                  ELECTROFAN
                                                  from £301.31
                                                  from £301.31
                                                  BLOWER Genuine Maserati Part - New (to order)
                                                  # 020
                                                  MPN: 673012107
                                                  KIT DRAIN PIPE
                                                  from £19.72
                                                  from £19.72
                                                  KIT DRAIN PIPE Genuine Maserati Part - New (to order)
                                                  # 021
                                                  MPN: 673012117
                                                  FRONT DRAIN WALL TO CHASSIS
                                                  from £351.79
                                                  from £351.79
                                                  FRONT AIR INTAKE Genuine Maserati Part - New (to order)
                                                  # 022
                                                  MPN: 673012301
                                                  KIT FRONT AIR INLET/REC CASES
                                                  from £23.44
                                                  from £23.44
                                                  KIT FRONT AIR INLET/REC CASE Genuine Maserati Part - New (to order)
                                                  # 023
                                                  MPN: 670104418
                                                  ACTUATOR
                                                  from £42.94
                                                  from £42.94
                                                  ACTUATOR Genuine Maserati Part - New (to order)
                                                  # 024
                                                  MPN: 675001306
                                                  NUT
                                                  from £0.92
                                                  from £0.92
                                                  This part replaces part number 675001330
                                                  NUT Genuine Maserati Part - New (to order)
                                                  # 025
                                                  MPN: 673009339
                                                  GASKET KIT
                                                  from £31.14
                                                  from £31.14
                                                  GASKET KIT Genuine Maserati Part - New (to order)
                                                  # 026
                                                  MPN: 673012110
                                                  FLOOR DUCT
                                                  from £25.66
                                                  from £25.66
                                                  FLOOR DUCT Genuine Maserati Part - New (to order)
