09.08.1 - CENTRAL MONOCOQUE

Maserati MC20 Cielo (2023) CENTRAL MONOCOQUE Parts Diagram

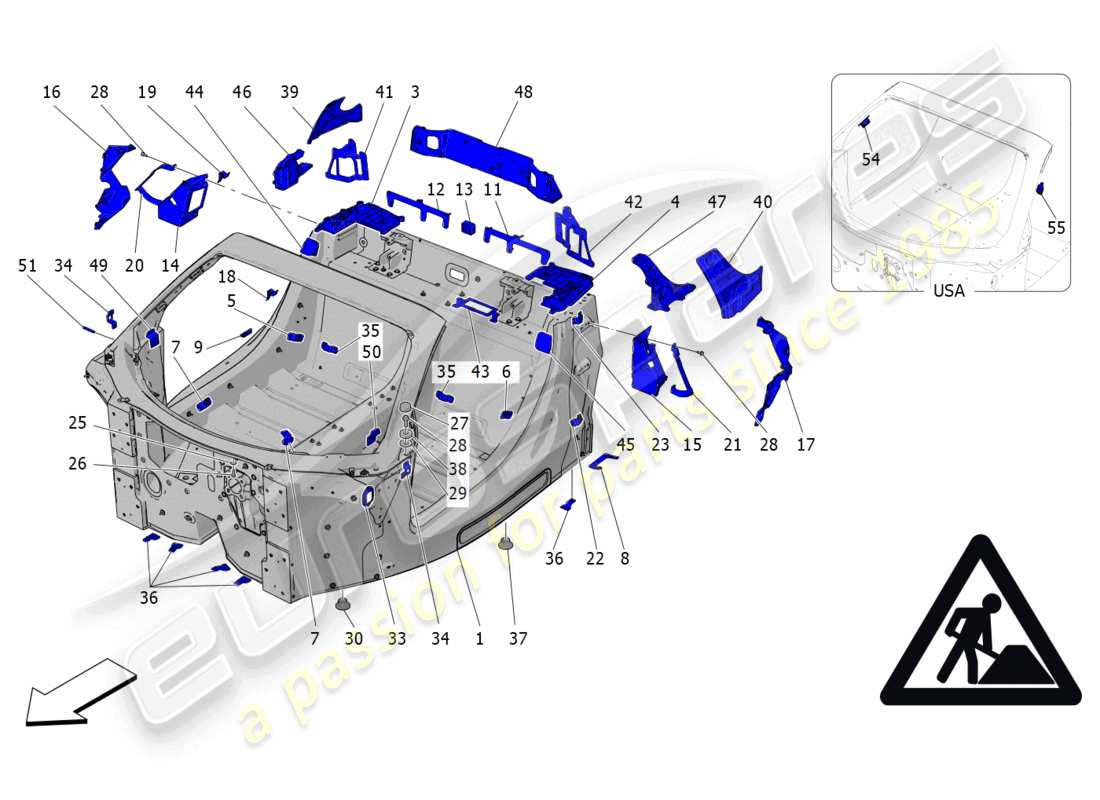

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Key
                                                                                          Price
                                                                                          # 001
                                                                                          -
                                                                                          CENTRAL MONOCOQUE
                                                                                          # 003
                                                                                          MPN: 670176339
                                                                                          RH CENTRAL PILLAR REINFORCEMENT
                                                                                          from £320.15
                                                                                          from £320.15
                                                                                          RH PILLAR REINFORCMENT Genuine Maserati Part - New (to order)
                                                                                          # 004
                                                                                          MPN: 670176340
                                                                                          LH CENTRAL PILLAR REINFORCEMENT
                                                                                          from £310.49
                                                                                          from £310.49
                                                                                          LH PILLAR REINFORCMENT Genuine Maserati Part - New (to order)
                                                                                          # 005
                                                                                          MPN: 670160196
                                                                                          RH BRACKET
                                                                                          from £16.38
                                                                                          from £16.38
                                                                                          RH SIDE BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 006
                                                                                          MPN: 670176089
                                                                                          LH BRACKET
                                                                                          from £12.38
                                                                                          from £12.38
                                                                                          LH SIDE BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 007
                                                                                          MPN: 670162237
                                                                                          LH INSERT
                                                                                          from £15.25
                                                                                          from £15.25
                                                                                          LH INSERT Genuine Maserati Part - New (to order)
                                                                                          # 008
                                                                                          MPN: 670181246
                                                                                          LH BRACKET
                                                                                          from £30.23
                                                                                          from £30.23
                                                                                          BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 009
                                                                                          MPN: 670219976
                                                                                          PLATE
                                                                                          from £13.92
                                                                                          from £13.92
                                                                                          PLATE Genuine Maserati Part - New (to order)
                                                                                          # 011
                                                                                          MPN: 670298541
                                                                                          LH BRACKET
                                                                                          from £34.74
                                                                                          from £34.74
                                                                                          LH BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 012
                                                                                          MPN: 670298540
                                                                                          RH BRACKET
                                                                                          from £34.74
                                                                                          from £34.74
                                                                                          RH BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 013
                                                                                          MPN: 670160180
                                                                                          REINFORCEMENT
                                                                                          from £23.10
                                                                                          from £23.10
                                                                                          REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                                          # 014
                                                                                          MPN: 670160174
                                                                                          RH REINFORCEMENT
                                                                                          from £45.89
                                                                                          from £45.89
                                                                                          RH DOOR LOCK REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                                          # 015
                                                                                          MPN: 670160175
                                                                                          LH REINFORCEMENT
                                                                                          from £45.89
                                                                                          from £45.89
                                                                                          LH DOOR LOCK REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                                          # 016
                                                                                          MPN: 670160201
                                                                                          RH REINFORCEMENT
                                                                                          from £298.55
                                                                                          from £298.55
                                                                                          RH FENDER REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                                          # 017
                                                                                          MPN: 670160202
                                                                                          LH REINFORCEMENT
                                                                                          from £298.55
                                                                                          from £298.55
                                                                                          LH FENDER REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                                          # 018
                                                                                          MPN: 670162166
                                                                                          RH MUDGUARD SUPPORT BRACKET
                                                                                          from £21.14
                                                                                          from £21.14
                                                                                          RH FENDER BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 019
                                                                                          MPN: 670162167
                                                                                          RH BRACKET
                                                                                          from £21.14
                                                                                          from £21.14
                                                                                          RH SIDE CONNECTION BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 020
                                                                                          MPN: 670295913
                                                                                          RH REINFORCEMENT
                                                                                          Valid from assembly: 7001365.
                                                                                          from £15.99
                                                                                          from £15.99
                                                                                          RH REAR DOOR LOCK REINFORCEM Genuine Maserati Part - New (to order)
                                                                                          # 021
                                                                                          MPN: 670295914
                                                                                          LH REINFORCEMENT
                                                                                          Valid from assembly: 7001365.
                                                                                          from £15.99
                                                                                          from £15.99
                                                                                          LH REAR DOOR LOCK REINFORCEM Genuine Maserati Part - New (to order)
                                                                                          # 022
                                                                                          MPN: 670176091
                                                                                          LH MUDGUARD SUPPORT BRACKET
                                                                                          from £21.14
                                                                                          from £21.14
                                                                                          LH FENDER BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 023
                                                                                          MPN: 670176092
                                                                                          LH BRACKET
                                                                                          from £21.14
                                                                                          from £21.14
                                                                                          LH SIDE CONNECTION BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 025
                                                                                          MPN: 675001364
                                                                                          WASHER
                                                                                          from £1.26
                                                                                          from £1.26
                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                          # 026
                                                                                          MPN: 675001355
                                                                                          SCREW
                                                                                          from £1.47
                                                                                          from £1.47
                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                          # 027
                                                                                          MPN: 675001373
                                                                                          CAP
                                                                                          from £3.12
                                                                                          from £3.12
                                                                                          CAP 17X10.5 Genuine Maserati Part - New (to order)
                                                                                          # 028
                                                                                          MPN: 670213828
                                                                                          SCREW
                                                                                          from £12.29
                                                                                          from £12.29
                                                                                          SCREW M10X1.5 Genuine Maserati Part - New (to order)
                                                                                          # 029
                                                                                          MPN: 675001366
                                                                                          WASHER
                                                                                          from £2.93
                                                                                          from £2.93
                                                                                          FLAT WASHER Genuine Maserati Part - New (to order)
                                                                                          # 030
                                                                                          MPN: 670214549
                                                                                          PLUG
                                                                                          from £12.13
                                                                                          from £12.13
                                                                                          PLUG Genuine Maserati Part - New (to order)
                                                                                          # 033
                                                                                          MPN: 670295539
                                                                                          PLATE
                                                                                          from £32.60
                                                                                          from £32.60
                                                                                          PLATE Genuine Maserati Part - New (to order)
                                                                                          # 034
                                                                                          MPN: 670162247
                                                                                          BRACKET
                                                                                          from £14.42
                                                                                          from £14.42
                                                                                          UPPER RH SUPPORT Genuine Maserati Part - New (to order)
                                                                                          # 035
                                                                                          MPN: 670174187
                                                                                          BRACKET
                                                                                          from £25.49
                                                                                          from £25.49
                                                                                          BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 036
                                                                                          MPN: 670214616
                                                                                          BRACKET
                                                                                          from £14.01
                                                                                          from £14.01
                                                                                          This part replaces part number 670174701
                                                                                          LOWER COVER SUPPORT BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 037
                                                                                          MPN: 670214548
                                                                                          PLUG
                                                                                          from £12.13
                                                                                          from £12.13
                                                                                          PLUG Genuine Maserati Part - New (to order)
                                                                                          # 038
                                                                                          MPN: 670215817
                                                                                          SHIM
                                                                                          from £0.91
                                                                                          from £0.91
                                                                                          This part replaces part number 675001438
                                                                                          SHIM Genuine Maserati Part - New (to order)
                                                                                          # 039
                                                                                          MPN: 670299982
                                                                                          RH CENTRAL PILLAR REINFORCEMENT ASS.
                                                                                          from £99.94
                                                                                          from £99.94
                                                                                          This part replaces part number 670181639
                                                                                          RH UPPER PILLAR REINFORCMENT Genuine Maserati Part - New (to order)
                                                                                          # 040
                                                                                          MPN: 670299983
                                                                                          LH CENTRAL PILLAR REINFORCEMENT ASS.
                                                                                          from £99.94
                                                                                          from £99.94
                                                                                          This part replaces part number 670181640
                                                                                          LH UPPER PILLAR REINFORCMENT Genuine Maserati Part - New (to order)
                                                                                          # 041
                                                                                          MPN: 670293618
                                                                                          RH CENTRAL PILLAR REINFORCEMENT ASS.
                                                                                          from £82.25
                                                                                          from £82.25
                                                                                          RH CONNECTION BAR REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                                          # 042
                                                                                          MPN: 670293619
                                                                                          LH CENTRAL PILLAR REINFORCEMENT ASS.
                                                                                          from £74.98
                                                                                          from £74.98
                                                                                          LH CONNECTION BAR REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                                          # 043
                                                                                          MPN: 670212808
                                                                                          BRACKET
                                                                                          from £24.61
                                                                                          from £24.61
                                                                                          BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 044
                                                                                          MPN: 670231044
                                                                                          EXTERNAL RECEIPT
                                                                                          EXTERNAL RECEIPT Genuine Maserati Part - New (to order)
                                                                                          # 045
                                                                                          MPN: 670231043
                                                                                          EXTERNAL RECEIPT
                                                                                          EXTERNAL RECEIPT Genuine Maserati Part - New (to order)
                                                                                          # 046
                                                                                          MPN: 670176632
                                                                                          RH CENTRAL PILLAR REINFORCEMENT ASS.
                                                                                          from £274.29
                                                                                          from £274.29
                                                                                          RH UPPER PILLAR REINFORCMENT Genuine Maserati Part - New (to order)
                                                                                          # 047
                                                                                          MPN: 670176633
                                                                                          LH CENTRAL PILLAR REINFORCEMENT ASS.
                                                                                          from £250.20
                                                                                          from £250.20
                                                                                          LH UPPER PILLAR REINFORCMENT Genuine Maserati Part - New (to order)
                                                                                          # 048
                                                                                          MPN: 670176636
                                                                                          BULKHEAD
                                                                                          BULKHEAD Genuine Maserati Part - New (to order)
                                                                                          # 049
                                                                                          MPN: 670296472
                                                                                          RH SIDE BRACKET
                                                                                          from £31.29
                                                                                          from £31.29
                                                                                          BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 050
                                                                                          MPN: 670296473
                                                                                          LH CENTRAL PILLAR BRACKET
                                                                                          from £31.29
                                                                                          from £31.29
                                                                                          BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 051
                                                                                          MPN: 670220781
                                                                                          PIN
                                                                                          from £22.95
                                                                                          from £22.95
                                                                                          Fastening Pin Genuine Maserati Part - New (to order)
                                                                                          # 054
                                                                                          MPN: 670221543
                                                                                          RH PILLAR COVER BRACKET
                                                                                          Suitable for: USA
                                                                                          from £61.44
                                                                                          from £61.44
                                                                                          RH PILLAR COVER BRACKET Genuine Maserati Part - New (to order)
                                                                                          # 055
                                                                                          MPN: 670221544
                                                                                          LH PILLAR COVER BRACKET
                                                                                          Suitable for: USA
                                                                                          from £61.44
                                                                                          from £61.44
                                                                                          LH PILLAR COVER BRACKET Genuine Maserati Part - New (to order)
