008 - timing control

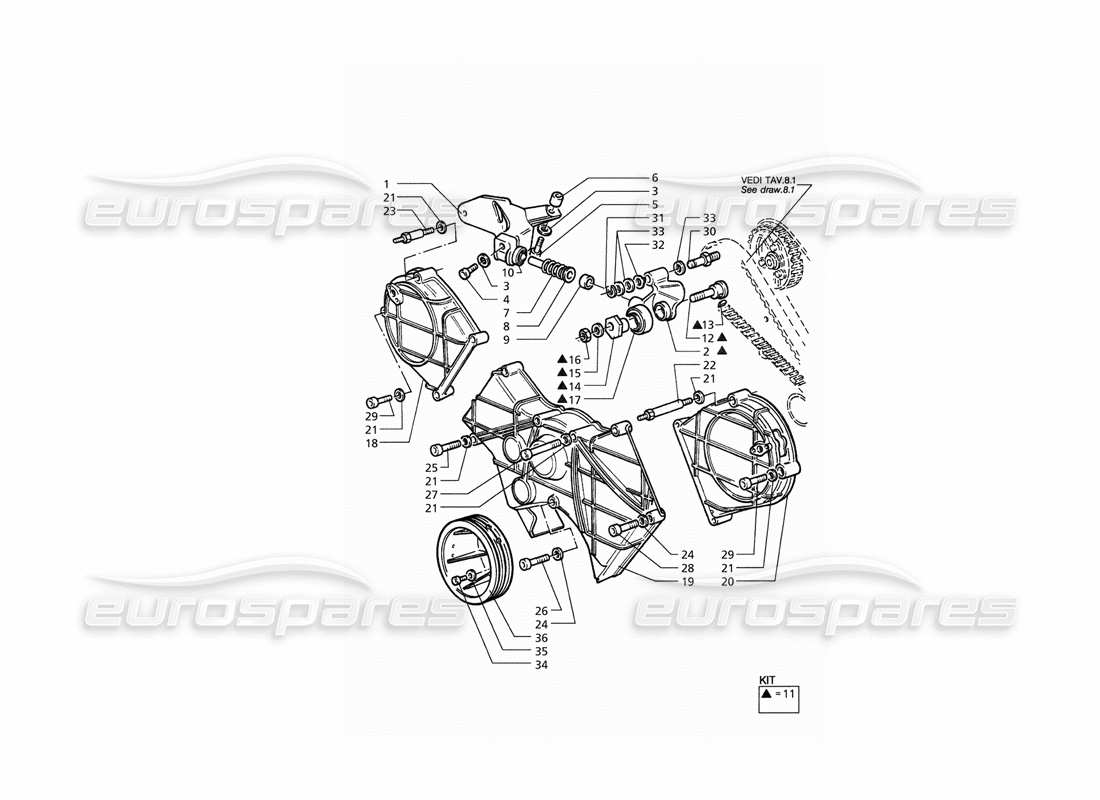

Maserati QTP. 3.2 V8 (1999) Timing Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 317832369
TENSIONER SUPPORT
# 002
MPN: 475038102
TIGHTENING PULLEY
from £85.64
from £85.64
This part replaces part number 475037502
# 003
MPN: 138410080
RETAINING WASHER
# 004
MPN: 14306424
SCREW
from £0.47
from £0.47
This part replaces part number 14306421
# 005
MPN: 108008040
SCREW
# 006
MPN: 311032370
SPACER
# 007
MPN: 310620356
SPRING
# 008
MPN: 475031500
PUSH ROD
from £1.59
from £1.59
# 009
MPN: 475031101
SPACER
from £15.11
from £15.11
# 010
MPN: 475031401
SPRING PLATE
from £1.59
from £1.59
# 011
MPN: 475949602
TIGHTENING PULLEY ASSY
from £190.40
from £190.40
# 012
MPN: 311053353
TIGHTENING PULLEY PIN
# 013
MPN: 311053460
TAB
from £0.71
from £0.71
# 014
MPN: 475033200
ECCENTRIC
from £6.98
from £6.98
# 015
MPN: 452008901
WASHER
from £2.22
from £2.22
# 016
MPN: 326656321
SELF LOCKNING NUT
from £3.65
from £3.65
# 017
MPN: 311020107
TIMING BEARING
from £99.75
from £99.75
# 018
MPN: 571002600
RH COVER TOOTHED BELT
from £19.33
from £19.33
# 019
MPN: 571038700
CENTRE COVER TOOTHED BELT
from £341.39
from £341.39
# 020
MPN: 571007300
LH TOOTHED BELT
from £35.39
from £35.39
# 021
MPN: 95564
WASHER
from £1.35
from £1.35
# 022
MPN: 571003200
STUD BOLT
from £6.58
from £6.58
# 023
MPN: 571003300
STUD BOLT
from £4.76
from £4.76
# 024
MPN: 135000064
WASHER
# 025
MPN: 108006040
SCREW L= 40MM
# 026
MPN: 95988
SCREW L= 50MM
# 027
MPN: 312220323
SCREW L= 60MM
# 028
MPN: 14304821
SCREW L= 55MM
from £0.53
from £0.53
# 029
MPN: 108006025
SCREW
# 030
MPN: 470037600
TIGHTENING PULLEY PIN
from £42.74
from £42.74
This part replaces part number 311020343
# 031
MPN: 151100120
STOP RING
# 032
MPN: 96789
WASHER (2 MM THICK)
from £1.67
from £1.67
This part replaces part number 135200120
# 033
MPN: 311020352
WASHER (0.30 MM THICK)
from £1.11
from £1.11
# 034
MPN: 108006022
SCREW
# 035
MPN: 312220411
WASHER
from £0.47
from £0.47
# 036
MPN: 571023801
PULLEY
from £1,297.43
from £1,297.43
