maserati qtp. (2005) 4.2 transmission pipe parts diagram

040 - Transmission Pipe

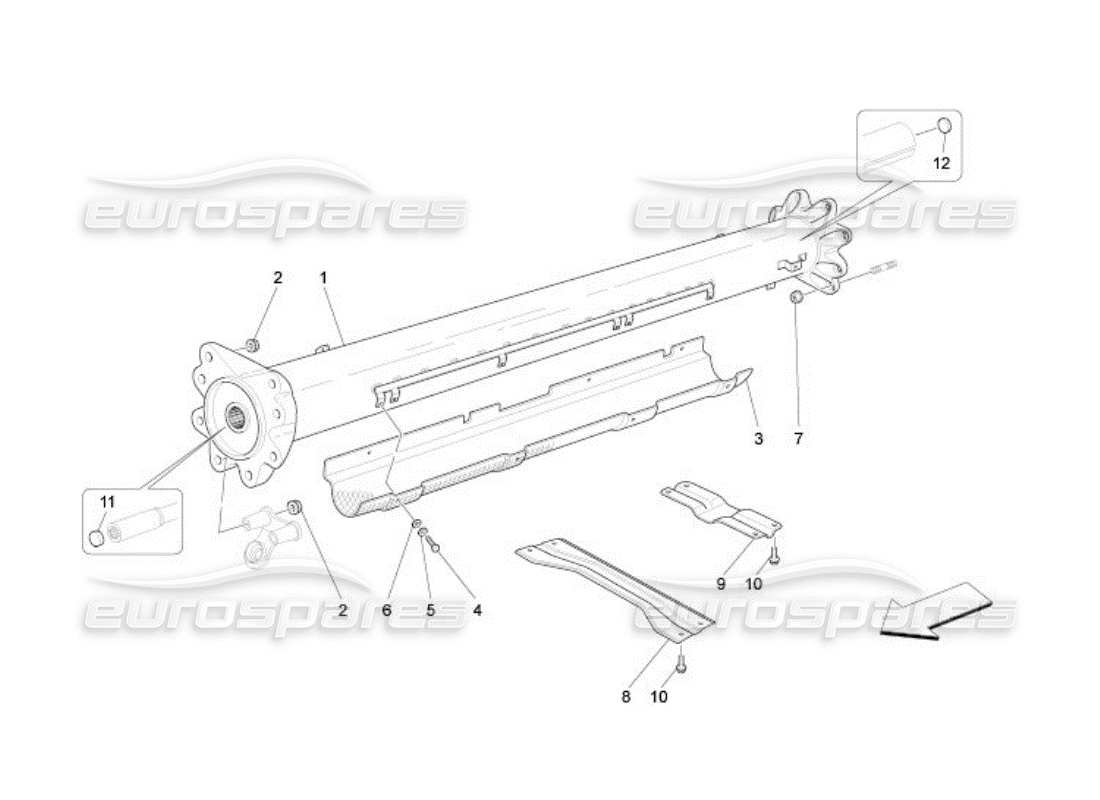

Maserati QTP. (2005) 4.2 Transmission Pipe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 01
                          MPN: 198108
                          ENGINE-GEARBOX CONNECTING TUBE
                          Supersession
                          Supersession
                          # 01
                          MPN: 221974
                          ENGINE-GEARBOX CONNECTING TUBE
                          from £4,300.29
                          from £4,300.29
                          This part replaces part number 220533 which we have in stock
                          # 02
                          MPN: 14059421
                          NUT
                          from £0.51
                          from £0.51
                          This part replaces part number 156462
                          # 03
                          MPN: 197003
                          TRANSMISSION HEAT SHIELD
                          Supersession
                          Supersession
                          # 04
                          MPN: 10856821
                          SCREW
                          from £0.51
                          from £0.51
                          # 05
                          MPN: 12601174
                          WASHER
                          from £0.53
                          from £0.53
                          This part replaces part number 675000100
                          # 06
                          MPN: 12637824
                          WASHER
                          from £0.47
                          from £0.47
                          # 07
                          MPN: 14059421
                          NUT
                          from £0.51
                          from £0.51
                          This part replaces part number 156462
                          # 08
                          MPN: 67487100
                          FRONT CROSS MEMBER
                          from £19.58
                          from £19.58
                          # 09
                          MPN: 66931600
                          REAR CROSS MEMBER
                          from £7.91
                          from £7.91
                          # 10
                          MPN: 11617324
                          SCREW
                          from £1.85
                          from £1.85
                          # 11
                          MPN: 191902
                          SPACER
                          from £19.55
                          from £19.55
                          # 12
                          MPN: 144443
                          SPACER
                          from £2.25
                          from £2.25
