maserati qtp. (2005) 4.2 lines parts diagram

048 - lines

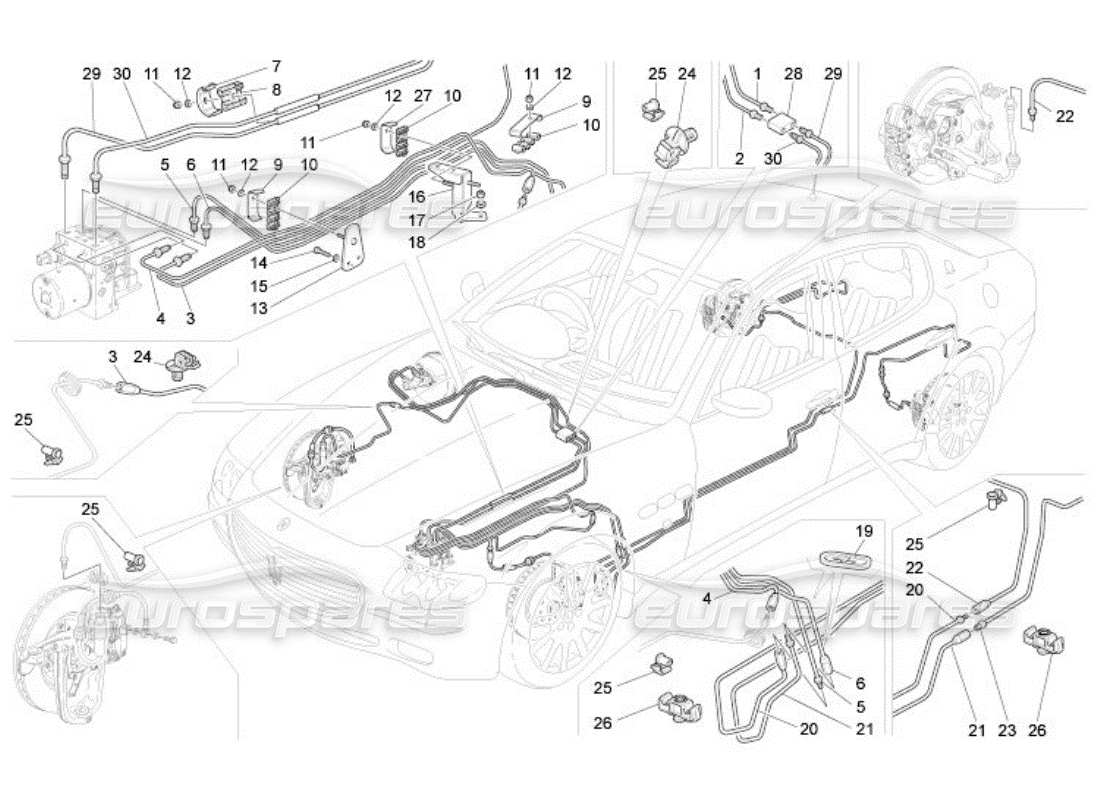

Maserati QTP. (2005) 4.2 Lines Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 000
                                                                MPN: 980139916
                                                                RH REAR SUSPENSION KIT
                                                                from £823.99
                                                                from £823.99
                                                                This part replaces part number 900027751
                                                                # 01
                                                                MPN: 208028
                                                                RIGID PIPE FROM PUMP TO UNION (MC1)
                                                                from £50.52
                                                                from £50.52
                                                                # 02
                                                                MPN: 208031
                                                                RIGID PIPE FROM PUMP TO UNION (MC2)
                                                                from £50.17
                                                                from £50.17
                                                                # 03
                                                                MPN: 203713
                                                                RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION
                                                                from £47.07
                                                                from £47.07
                                                                # 04
                                                                MPN: 194848
                                                                RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION
                                                                from £86.46
                                                                from £86.46
                                                                # 05
                                                                MPN: 194851
                                                                RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE
                                                                from £86.46
                                                                from £86.46
                                                                # 06
                                                                MPN: 194853
                                                                RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE
                                                                from £86.46
                                                                from £86.46
                                                                # 07
                                                                MPN: 193722
                                                                RETAINER
                                                                from £6.42
                                                                from £6.42
                                                                # 08
                                                                MPN: 192275
                                                                CLIP
                                                                from £2.85
                                                                from £2.85
                                                                # 08
                                                                MPN: 255406
                                                                CLIP
                                                                Supersession
                                                                Supersession
                                                                # 09
                                                                MPN: 200288
                                                                RETAINER
                                                                from £6.81
                                                                from £6.81
                                                                This part replaces part number 193721
                                                                # 10
                                                                MPN: 192276
                                                                CLIP
                                                                from £2.85
                                                                from £2.85
                                                                # 11
                                                                MPN: 14075611
                                                                NUT
                                                                from £1.31
                                                                from £1.31
                                                                # 12
                                                                MPN: 12637824
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 13
                                                                MPN: 203822
                                                                BRACKET
                                                                from £5.96
                                                                from £5.96
                                                                # 14
                                                                MPN: 10977624
                                                                SCREW
                                                                from £0.53
                                                                from £0.53
                                                                # 15
                                                                MPN: 12637824
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 16
                                                                MPN: 204366
                                                                BRACKET
                                                                from £26.98
                                                                from £26.98
                                                                # 18
                                                                MPN: 14496524
                                                                WASHER
                                                                from £0.54
                                                                from £0.54
                                                                # 19
                                                                MPN: 221727
                                                                GASKET
                                                                from £4.17
                                                                from £4.17
                                                                # 19
                                                                MPN: 60624899
                                                                GASKET
                                                                from £1.55
                                                                from £1.55
                                                                # 20
                                                                MPN: 194858
                                                                RH INTERMEDIATE RIGID PIPE
                                                                from £21.92
                                                                from £21.92
                                                                # 21
                                                                MPN: 194859
                                                                LH INTERMEDIATE RIGID PIPE
                                                                from £18.81
                                                                from £18.81
                                                                # 22
                                                                MPN: 198081
                                                                RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
                                                                from £28.12
                                                                from £28.12
                                                                # 22
                                                                MPN: 227265
                                                                RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
                                                                from £29.04
                                                                from £29.04
                                                                # 23
                                                                MPN: 194857
                                                                RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL
                                                                from £86.46
                                                                from £86.46
                                                                # 24
                                                                MPN: 192277
                                                                CLIP
                                                                from £1.55
                                                                from £1.55
                                                                # 25
                                                                MPN: 192279
                                                                CLIP
                                                                from £1.08
                                                                from £1.08
                                                                # 26
                                                                MPN: 192278
                                                                CLIP
                                                                from £1.08
                                                                from £1.08
                                                                # 27
                                                                MPN: 193721
                                                                RETAINER
                                                                Supersession
                                                                Supersession
                                                                # 28
                                                                MPN: 208035
                                                                UNION
                                                                from £34.18
                                                                from £34.18
                                                                # 29
                                                                MPN: 208030
                                                                RIGID PIPE FROM UNION TO CONTROL UNIT (MC1)
                                                                from £32.59
                                                                from £32.59
                                                                # 30
                                                                MPN: 208032
                                                                RIGID PIPE FROM UNION TO CONTROL UNIT (MC2)
                                                                from £32.36
                                                                from £32.36
