maserati qtp. (2005) 4.2 rear chassis parts diagram

061 - rear chassis

Maserati QTP. (2005) 4.2 Rear Chassis Parts Diagram

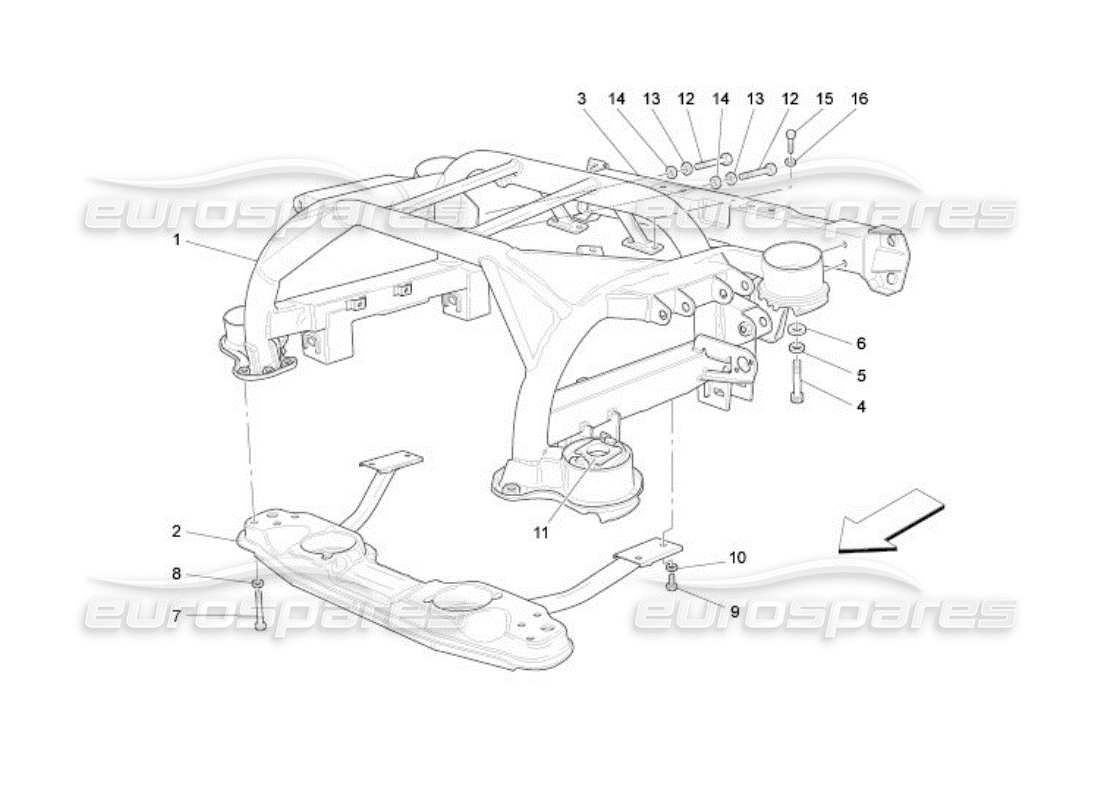

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price

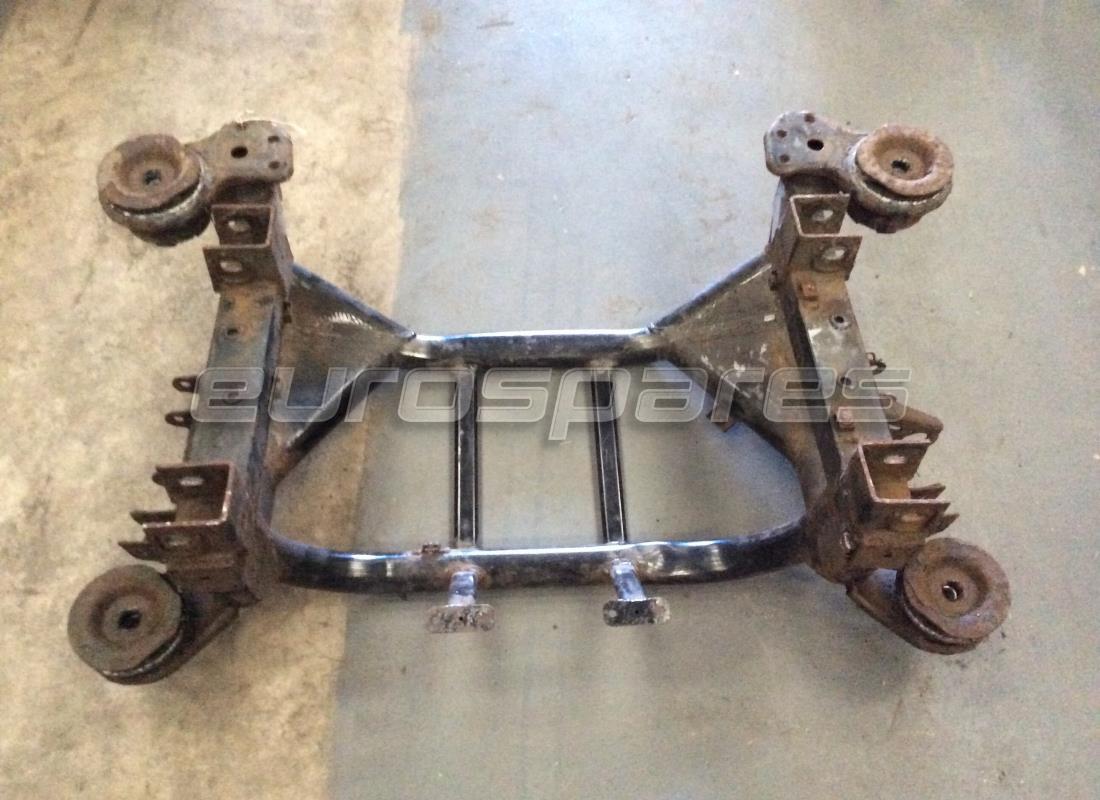

                                  # 01
                                  MPN: 67987900
                                  REAR FRAME ASSEMBLY NOT INCLUDE THE FLEXIBLE PADS (POS. 10)
                                  from £1,705.80
                                  from £1,705.80
                                  This part replaces part number 67480100 - and 1 more. Click to view details
                                  # 02
                                  MPN: 239064
                                  FRONT CROSS MEMBER
                                  Supersession
                                  Supersession
                                  This part replaces part number 67482600 which we have in stock
                                  # 02
                                  MPN: 268638
                                  FRONT CROSS MEMBER
                                  from £523.95
                                  from £523.95
                                  This part replaces part number 239064 - and 2 more. Click to view details
                                  # 02
                                  MPN: 67482600
                                  FRONT CROSS MEMBER
                                  from £1,048.76
                                  from £1,048.76
                                  # 03
                                  MPN: 67483100
                                  REAR CROSS MEMBER
                                  from £610.34
                                  from £610.34
                                  # 04
                                  MPN: 67997900
                                  SCREW
                                  from £7.73
                                  from £7.73
                                  # 05
                                  MPN: 11198674
                                  WASHER
                                  from £1.39
                                  from £1.39
                                  # 06
                                  MPN: 12646934
                                  WASHER
                                  from £1.39
                                  from £1.39
                                  # 07
                                  MPN: 11343724
                                  SCREW M 10X65
                                  Supersession
                                  Supersession
                                  # 07
                                  MPN: 15888824
                                  SCREW M 10X70
                                  from £3.16
                                  from £3.16
                                  This part replaces part number 11343724
                                  # 08
                                  MPN: 14496624
                                  WASHER
                                  from £0.51
                                  from £0.51
                                  # 09
                                  MPN: 10902621
                                  SCREW
                                  Supersession
                                  Supersession
                                  # 10
                                  MPN: 12604579
                                  WASHER
                                  from £0.61
                                  from £0.61
                                  # 11
                                  MPN: 67988000
                                  FLEXIBLE PAD
                                  Supersession
                                  Supersession
                                  # 12
                                  MPN: 11343821
                                  SCREW M 10X50
                                  from £0.63
                                  from £0.63
                                  # 12
                                  MPN: 15971321
                                  SCREW M 10X75
                                  from £7.73
                                  from £7.73
                                  # 13
                                  MPN: 14496624
                                  WASHER
                                  from £0.53
                                  from £0.53
                                  # 14
                                  MPN: 11190577
                                  WASHER
                                  from £0.53
                                  from £0.53
                                  # 15
                                  MPN: 11612424
                                  SCREW
                                  from £1.19
                                  from £1.19
                                  # 16
                                  MPN: 13550221
                                  WASHER
                                  from £0.47
                                  from £0.47
