080 - Side Light Clusters

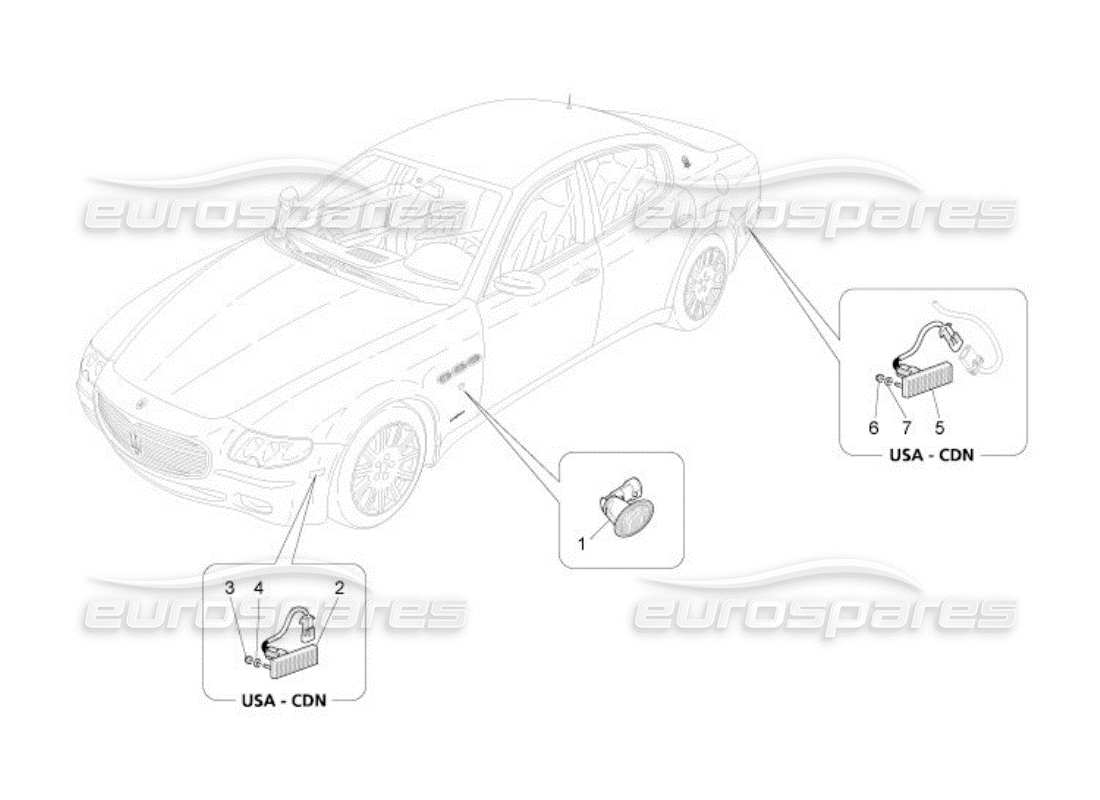

Maserati QTP. (2005) 4.2 Side Light Clusters Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 01
MPN: 247024
SIDE LIGHT
from £7.77
from £7.77
This part replaces part number 198378
# 02
MPN: 205328
RH FRONT SIDE MARKER
from £23.64
from £23.64
# 02
MPN: 205329
LH FRONT SIDE MARKER
from £23.64
from £23.64
# 03
MPN: 14084111
NUT
from £0.47
from £0.47
# 04
MPN: 12638101
WASHER
from £0.71
from £0.71
This part replaces part number 12638121
# 05
MPN: 205326
RH REAR SIDE MARKER
from £34.03
from £34.03
# 05
MPN: 205327
LH REAR SIDE MARKER
from £35.22
from £35.22
# 06
MPN: 14084111
NUT
from £0.47
from £0.47
# 07
MPN: 12638101
WASHER
from £0.71
from £0.71
This part replaces part number 12638121
