120 - RH cylinder head

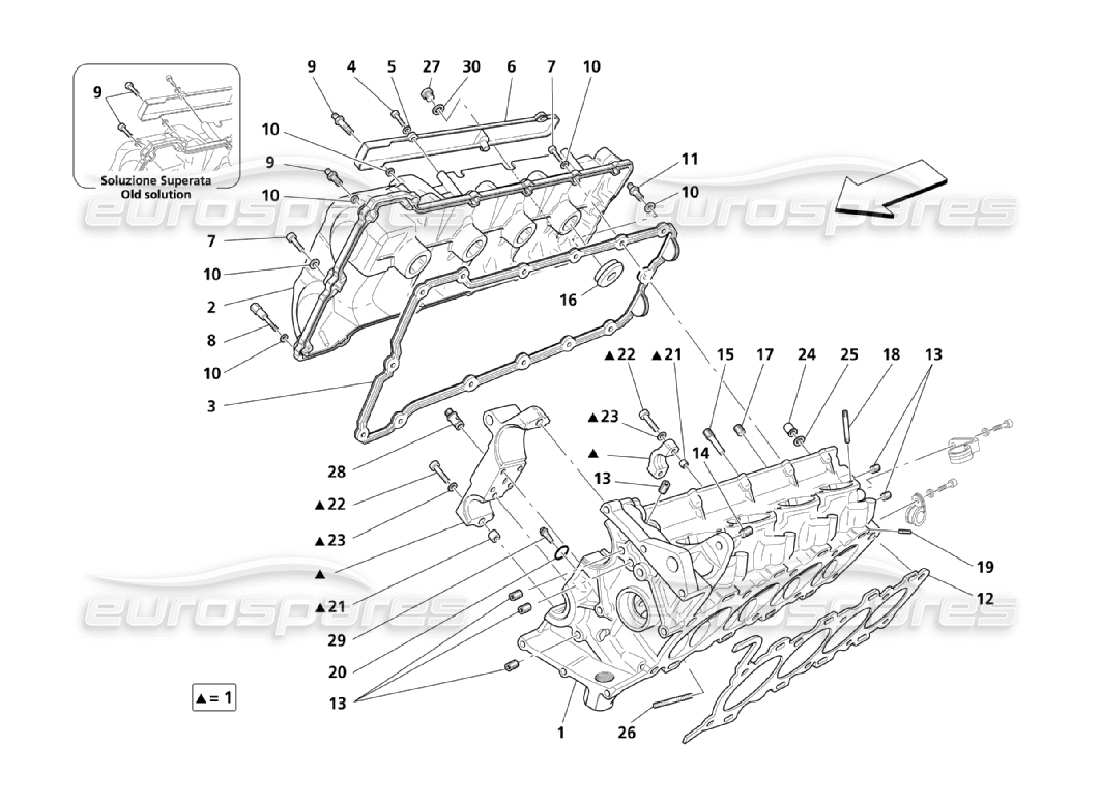

Maserati QTP. (2006) 4.2 R.H. Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 980020008
TOP END GASKET SET
from £439.95
from £439.95
# 001
MPN: 217327
COMPLETE RH HEAD
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274 - Valid till stock exhaustion
Supersession
Supersession
# 001
MPN: 218037
COMPLETE RH HEAD
Not for AUS and J - Not for cars GD opt. japan version
from £1,571.87
from £1,571.87
This part replaces part number 217327
# 001
MPN: 218037
COMPLETE RH HEAD
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £1,571.87
from £1,571.87
This part replaces part number 217327
# 002
MPN: 187815
RH CYLINDERS HEAD COVER
Valid till engine Nr. 102268
from £174.25
from £174.25
# 002
MPN: 216285
RH CYLINDERS HEAD COVER
Valid from engine Nr. 102269
from £183.06
from £183.06
# 003
MPN: 198927
RH HEAD COVER GASKET
Supplied also in the cover gasket revision kit (cod. 980020000) and 980020007)
from £31.50
from £31.50
# 004
MPN: 14304424
SCREW
from £0.52
from £0.52
# 005
MPN: 14497878
WASHER
from £0.47
from £0.47
# 006
MPN: 185276
RH HARNESS SMALL COVER
from £19.77
from £19.77
# 007
MPN: 156830
SCREW
M 6X40
from £0.47
from £0.47
# 007
MPN: 157218
SCREW
M 6X25
from £0.47
from £0.47
# 008
MPN: 200414
STUD
M 6X25,5
from £3.87
from £3.87
# 009
MPN: 156828
SCREW
M 6X50 - Old solution
from £1.59
from £1.59
# 009
MPN: 187710
STUD
M 6X40
from £6.89
from £6.89
# 009
MPN: 187711
STUD
M 6X25
from £53.48
from £53.48
# 009
MPN: 209487
SCREW
M 6X32 - Old solution
from £3.25
from £3.25
# 010
MPN: 11197774
WASHER
from £0.52
from £0.52
# 011
MPN: 204102
STUD
M 6X25
from £8.53
from £8.53
# 012
MPN: 184966
RH HEAD GASKET
Supplied also in the cylinder heads gasket revision kit (cod. 980020003)
from £40.26
from £40.26
# 013
MPN: 14326001
THREADED PLUG
from £0.47
from £0.47
# 014
MPN: 140135
THREADED INSERT
from £1.78
from £1.78
# 015
MPN: 183447
THREADED PLUG
from £4.76
from £4.76
# 016
MPN: 187706
GASKET
Valid till engine Nr. 102268
from £3.33
from £3.33
# 016
MPN: 223982
GASKET
Valid from engine Nr. 102269 - Supplied also in the cover gasket revision kit (cod. 980020007)
from £1.36
from £1.36
# 017
MPN: 164400
THREADED PLUG
from £1.86
from £1.86
# 018
MPN: 13541224
STUD
from £35.84
from £35.84
# 019
MPN: 199760
THREADED PLUG
from £0.47
from £0.47
# 020
MPN: 134233
GASKET
Supplied also in the cover gasket revision kit (cod. 980020005 and 980020007)
from £0.47
from £0.47
# 021
MPN: 102725
CENTERING DOWEL
from £0.62
from £0.62
# 022
MPN: 14305621
SCREW
M 6X35
from £0.71
from £0.71
# 022
MPN: 14305821
SCREW
M 6X40
from £0.53
from £0.53
# 023
MPN: 11197774
WASHER
from £0.51
from £0.51
# 024
MPN: 183524
NUT
from £0.98
from £0.98
# 025
MPN: 151117
WASHER
from £0.32
from £0.32
This part replaces part number 300266 - and 1 more. Click to view details
# 026
MPN: 13543424
STUD
from £1.03
from £1.03
# 027
MPN: 187963
PLUG
from £3.74
from £3.74
# 028
MPN: 184681
OIL PRESSURE CHECK VALVE
from £241.27
from £241.27
# 029
MPN: 180266
OIL FILTER
Supplied also in the cover gasket revision kit (cod. 980020005 and 980020007)
Supersession
Supersession
# 030
MPN: 10263360
GASKET
from £0.47
from £0.47
