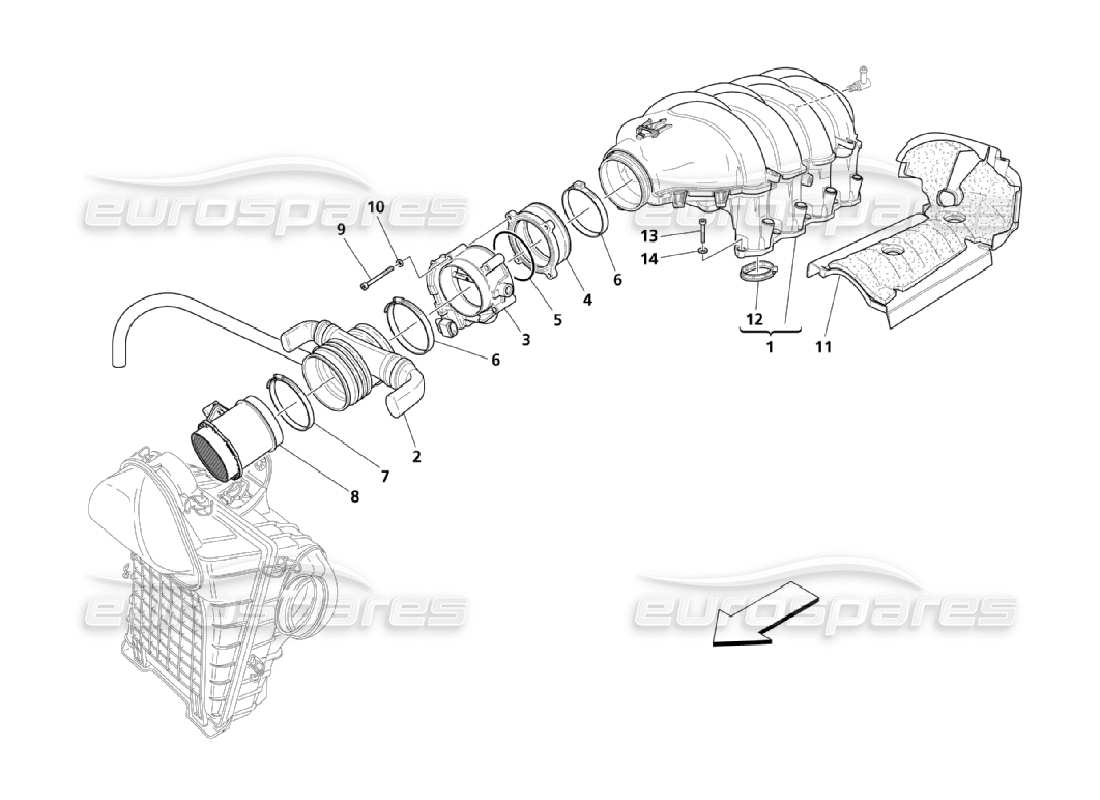

140 - Air Intake Manifold And Throttle Holder
Maserati QTP. (2006) 4.2 Air Intake Manifold And Throttle Holder Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 190008
SUCTION MANIFOLD
Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
from £393.75
from £393.75
# 001
MPN: 212925
SUCTION MANIFOLD
Not for AUS and J - Not for cars GD opt. japan version
from £886.47
from £886.47
# 001
MPN: 212925
SUCTION MANIFOLD
Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
from £886.47
from £886.47
# 002
MPN: 205886
SLEEVE
Not for USA and CDN
from £71.29
from £71.29
This part replaces part number 199766
# 002
MPN: 205887
SLEEVE
Valid for USA and CDN
from £139.39
from £139.39
# 003
MPN: 179912
THROTTLE HOLDER
from £315.29
from £315.29
# 004
MPN: 240262
SPACER
from £59.85
from £59.85
This part replaces part number 195206
# 005
MPN: 150302
O.R. GASKET
from £1.21
from £1.21
# 006
MPN: 190151
CLAMP
from £1.95
from £1.95
# 007
MPN: 204436
CLAMP
from £3.74
from £3.74
# 008
MPN: 180045
AIR FLOW METER
from £148.08
from £148.08
# 009
MPN: 14305924
SCREW
from £0.51
from £0.51
This part replaces part number 14305921 - and 1 more. Click to view details
# 010
MPN: 11197774
WASHER
from £0.53
from £0.53
# 011
MPN: 203712
SILENCER
from £156.05
from £156.05
# 012
MPN: 203134
GASKET
Supplied also in the cylinder heads gasket revision kit (cod. 980020003)
Supersession
Supersession
# 013
MPN: 14305424
SCREW
from £0.47
from £0.47
# 014
MPN: 11193274
WASHER
from £0.52
from £0.52
