144 - Fuel Vapors Recycle System

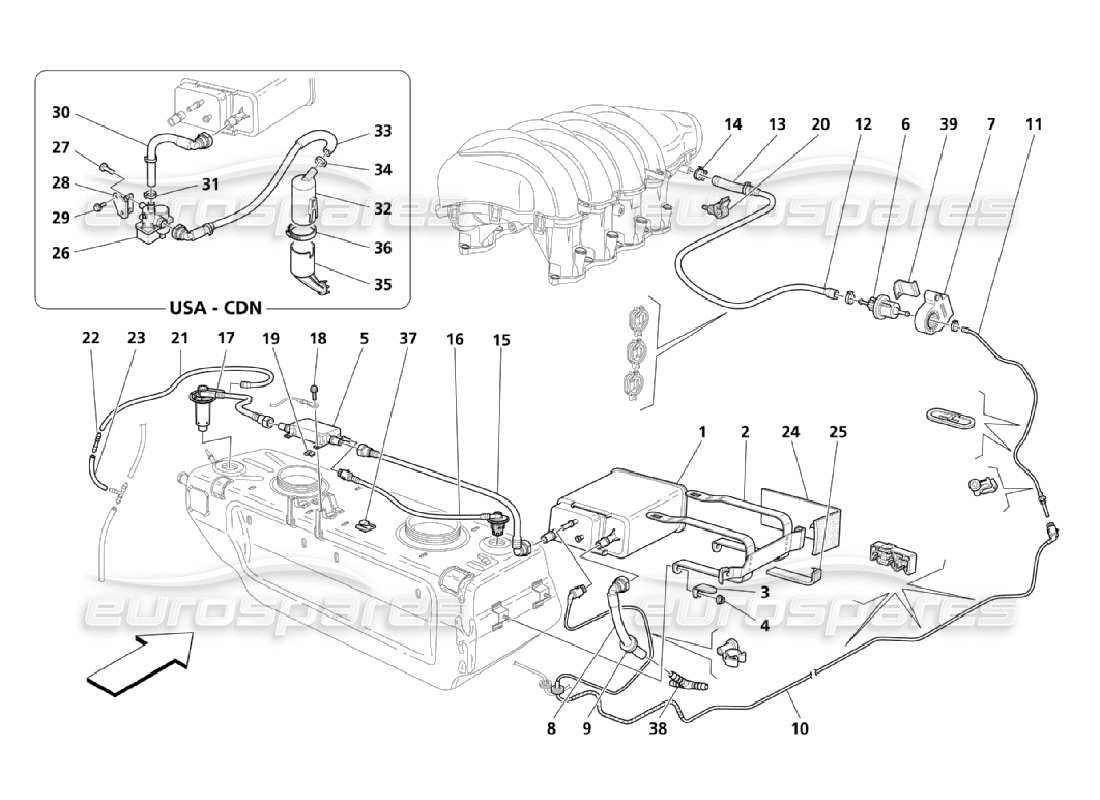

Maserati QTP. (2006) 4.2 Fuel Vapors Recycle System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 220074
FUEL VAPOR FILTER
from £63.15
from £63.15
This part replaces part number 212961 - and 1 more. Click to view details
# 002
MPN: 200002
FUEL VAPOR FILTER SUPPORT BRACKET
Not for USA and CDN - Valid till stock exhaustion
from £10.73
from £10.73
# 002
MPN: 212003
FUEL VAPOR FILTER SUPPORT BRACKET
Not for USA and CDN - Valid after stock exhaustion of 200002
from £61.46
from £61.46
# 002
MPN: 212003
FUEL VAPOR FILTER SUPPORT BRACKET
Valid for USA and CDN
from £61.46
from £61.46
# 003
MPN: 192330
ANGLE PIECE BRACKET
from £63.77
from £63.77
# 004
MPN: 14059211
NUT
from £0.47
from £0.47
This part replaces part number 675000181
# 005
MPN: 192101
DISAREATOR
from £158.06
from £158.06
# 006
MPN: 180861
WASHER VALVE
from £54.40
from £54.40
# 007
MPN: 174623
BUFFER FOR SUPPORT
from £3.75
from £3.75
# 008
MPN: 211925
VAPOR PIPE FROM CANISTER TO WHEELHOUSE
Not for USA and CDN
from £10.62
from £10.62
# 009
MPN: 10396880
CABLE GROMMET
Not for USA and CDN
from £2.38
from £2.38
# 010
MPN: 199847
VAPOR PIPE FROM CANISTER TO WHEEL COMPARTMENT
Valid till car Ass. Nr. 24274
from £57.41
from £57.41
# 010
MPN: 219430
VAPOR PIPE FROM CANISTER TO WHEEL COMPARTMENT
Valid from car Ass. Nr. 24275
from £64.64
from £64.64
# 011
MPN: 199849
VAPOR PIPE
from £105.00
from £105.00
# 012
MPN: 209822
VAPOR PIPE
from £669.13
from £669.13
# 013
MPN: 204968
SLEEVE
from £100.21
from £100.21
# 014
MPN: 13433570
SCREW COLLAR
from £0.47
from £0.47
# 015
MPN: 192210
PIPE FROM SEPARATOR TO CANISTER
from £206.62
from £206.62
# 016
MPN: 192100
EXHAUST VALVE WITH PIPE
from £209.05
from £209.05
# 017
MPN: 192099
VALVE
from £477.83
from £477.83
# 017
MPN: 217194
MULTIFUNCTION VALVE WITH PIPE
from £262.81
from £262.81
This part replaces part number 192099 which we have in stock - and 1 more. Click to view details
# 018
MPN: 16296924
SCREW
from £0.47
from £0.47
# 019
MPN: 14369274
BRACKET
from £0.47
from £0.47
# 020
MPN: 198264
CLIP
from £1.59
from £1.59
# 021
MPN: 199880
PIPE
from £4.77
from £4.77
# 022
MPN: 204955
TWOWAY UNION
from £1.23
from £1.23
# 023
MPN: 68085100
PIPE
from £1.66
from £1.66
# 024
MPN: 177751
RUBBER THICKNESS
Valid till car Ass. Nr. 24274
from £0.71
from £0.71
# 024
MPN: 197800
RUBBER THICKNESS
Valid from car Ass. Nr. 24275
from £8.41
from £8.41
# 025
MPN: 180789
RUBBER THICKNESS
from £0.71
from £0.71
# 026
MPN: 202968
OBD PUMP
Valid for USA and CDN
from £54.60
from £54.60
This part replaces part number 185405
# 027
MPN: 15958701
SCREW
Valid for USA and CDN
from £0.47
from £0.47
# 028
MPN: 204611
BRACKET
Valid for USA and CDN
from £6.11
from £6.11
# 029
MPN: 11730624
SCREW
Valid for USA and CDN
from £0.47
from £0.47
# 030
MPN: 205334
PIPE FROM CANISTER TO OBD PUMP
Valid for USA and CDN
from £39.05
from £39.05
# 031
MPN: 13432670
COLLAR
Valid for USA and CDN
from £3.57
from £3.57
# 032
MPN: 183221
OBD PUMP FILTER
Valid for USA and CDN
from £6.19
from £6.19
# 033
MPN: 205335
PIPE FROM OBD PUMP TO FILTER
Valid for USA and CDN
from £72.44
from £72.44
# 034
MPN: 13432670
COLLAR
Valid for USA and CDN
from £3.57
from £3.57
# 035
MPN: 205330
AIR INTAKE PIPE
Valid for USA and CDN
from £32.10
from £32.10
# 036
MPN: 13000890
SCREW COLLAR
Valid for USA and CDN
from £0.64
from £0.64
This part replaces part number 312020136
# 037
MPN: 198671
CLIP
from £2.38
from £2.38
# 038
MPN: 211389
UNION
Not for USA and CDN
from £2.46
from £2.46
# 039
MPN: 225410
BRACKET
from £5.71
from £5.71
