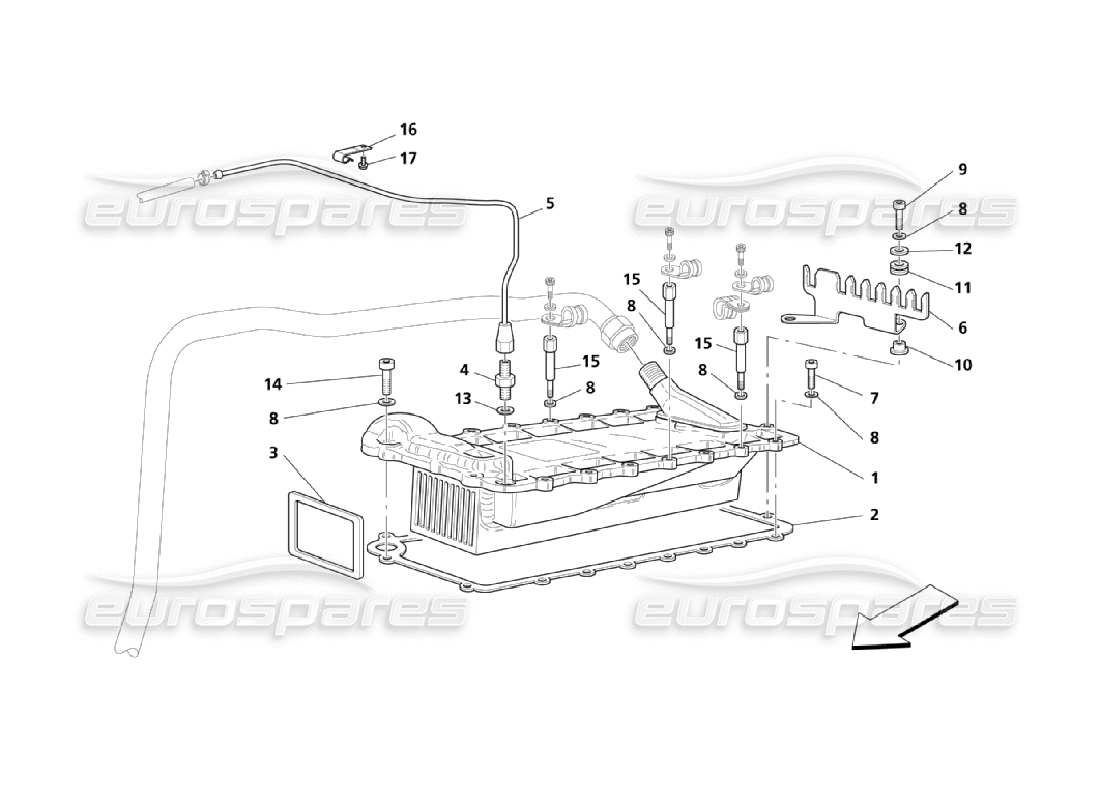

162 - HEAT EXCHANGER

Maserati QTP. (2006) 4.2 Heat Exchanger Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 186356
                      WATER/OIL EXCHANGER
                      from £1,346.60
                      from £1,346.60
                      # 002
                      MPN: 185581
                      GASKET
                      Supplied also in the crankcase gasket revision kit (cod. 980020004)
                      from £26.18
                      from £26.18
                      # 003
                      MPN: 174600
                      GASKET
                      Supplied also in the crankcase gasket revision kit (cod. 980020004)
                      from £4.48
                      from £4.48
                      # 004
                      MPN: 192327
                      UNION
                      from £2.78
                      from £2.78
                      # 005
                      MPN: 202143
                      WATER VENT PIPE
                      from £34.32
                      from £34.32
                      # 006
                      MPN: 191396
                      BRACKET
                      from £4.51
                      from £4.51
                      # 007
                      MPN: 14305424
                      SCREW
                      M 6X25
                      from £0.53
                      from £0.53
                      # 007
                      MPN: 14432224
                      SCREW
                      M 6X22
                      from £0.47
                      from £0.47
                      # 008
                      MPN: 11197774
                      WASHER
                      from £0.51
                      from £0.51
                      # 009
                      MPN: 14305624
                      SCREW
                      M 6X35
                      from £0.53
                      from £0.53
                      # 010
                      MPN: 149707
                      SPACER
                      from £0.78
                      from £0.78
                      # 011
                      MPN: 177576
                      CABLE GROMMET
                      from £1.48
                      from £1.48
                      # 012
                      MPN: 12643724
                      WASHER
                      from £0.53
                      from £0.53
                      # 013
                      MPN: 10284460
                      GASKET
                      from £0.47
                      from £0.47
                      # 014
                      MPN: 14305524
                      SCREW
                      M 6X30
                      from £0.53
                      from £0.53
                      # 015
                      MPN: 198462
                      STUD
                      from £6.46
                      from £6.46
                      # 016
                      MPN: 203130
                      CLIP
                      Included in the Complete suction manifold (Draw 1.40 Pos. 1)
                      from £4.63
                      from £4.63
                      # 017
                      MPN: 203133
                      SCREW
                      Included in the Complete suction manifold (Draw 1.40 Pos. 1)
                      from £4.88
                      from £4.88
