312 - Lay Shaft Gears

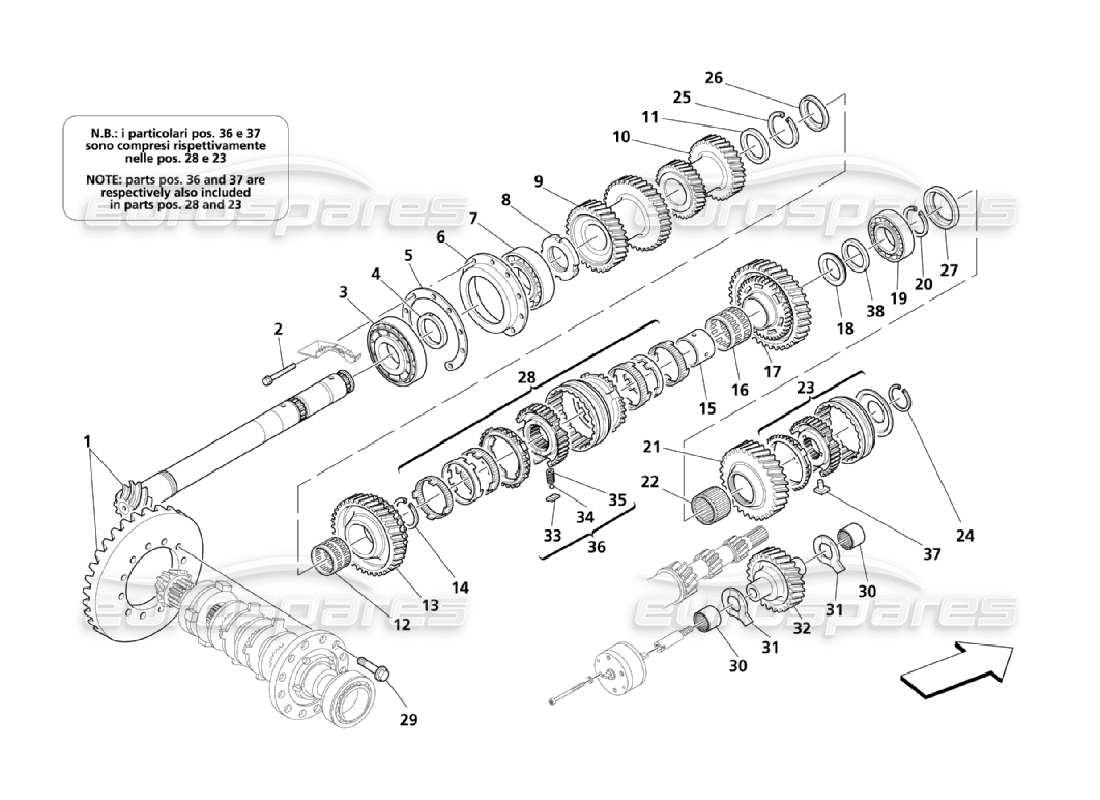

Maserati QTP. (2006) 4.2 Lay Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 201163
                                          COMPLETE BEVEL SET
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £703.89
                                          from £703.89
                                          # 001
                                          MPN: 219689
                                          COMPLETE BEVEL SET
                                          Not for AUS and J - Not for cars GD opt. japan version
                                          from £1,259.48
                                          from £1,259.48
                                          # 001
                                          MPN: 219689
                                          COMPLETE BEVEL SET
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £1,259.48
                                          from £1,259.48
                                          # 002
                                          MPN: 16287731
                                          SCREW
                                          from £1.38
                                          from £1.38
                                          # 003
                                          MPN: 185022
                                          ROLLER BEARING
                                          from £84.52
                                          from £84.52
                                          # 004
                                          MPN: 185045
                                          REGISTER RING
                                          Thickness mm. 7,10 - Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £21.86
                                          from £21.86
                                          # 004
                                          MPN: 185046
                                          REGISTER RING
                                          Thickness mm. 6,85 - Possible fitting - Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £21.86
                                          from £21.86
                                          # 004
                                          MPN: 185047
                                          REGISTER RING
                                          Thickness mm. 6,60 - Possible fitting - Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £21.86
                                          from £21.86
                                          # 004
                                          MPN: 219717
                                          REGISTER RING
                                          Thickness mm. 8,60 - Not for AUS and J - Not for cars GD opt. japan version
                                          from £52.33
                                          from £52.33
                                          # 004
                                          MPN: 219717
                                          REGISTER RING
                                          Thickness mm. 8,60 - Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £52.33
                                          from £52.33
                                          # 005
                                          MPN: 185042
                                          REGISTER RING
                                          Thickness mm. 2,8
                                          from £6.91
                                          from £6.91
                                          # 005
                                          MPN: 185043
                                          REGISTER RING
                                          Thickness mm. 2,5 - Possible fitting
                                          from £9.56
                                          from £9.56
                                          # 005
                                          MPN: 185044
                                          REGISTER RING
                                          Thickness mm. 2,2 - Possible fitting
                                          from £14.64
                                          from £14.64
                                          # 006
                                          MPN: 185020
                                          BEARING SUPPORT
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £74.60
                                          from £74.60
                                          # 006
                                          MPN: 219718
                                          BEARING SUPPORT
                                          Not for AUS and J - Not for cars GD opt. japan version
                                          from £84.17
                                          from £84.17
                                          # 006
                                          MPN: 219718
                                          BEARING SUPPORT
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £84.17
                                          from £84.17
                                          # 007
                                          MPN: 185021
                                          ROLLER BEARING
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £74.89
                                          from £74.89
                                          # 007
                                          MPN: 219720
                                          ROLLER BEARING
                                          Not for AUS and J - Not for cars GD opt. japan version
                                          from £60.14
                                          from £60.14
                                          # 007
                                          MPN: 219720
                                          ROLLER BEARING
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £60.14
                                          from £60.14
                                          # 008
                                          MPN: 196667
                                          RING NUT
                                          from £39.84
                                          from £39.84
                                          # 009
                                          MPN: 182287
                                          3RD AND 4TH DRIVEN GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £219.51
                                          from £219.51
                                          # 009
                                          MPN: 214802
                                          3RD AND 4TH DRIVEN GEAR
                                          Not for AUS and J - Not for cars GD opt. japan version
                                          from £327.61
                                          from £327.61
                                          # 009
                                          MPN: 214802
                                          3RD AND 4TH DRIVEN GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £327.61
                                          from £327.61
                                          # 010
                                          MPN: 205647
                                          5TH AND 6TH DRIVEN GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £234.93
                                          from £234.93
                                          # 010
                                          MPN: 214801
                                          5TH AND 6TH DRIVEN GEAR
                                          Not for AUS and J - Not for cars GD opt. japan version
                                          from £309.10
                                          from £309.10
                                          # 010
                                          MPN: 214801
                                          5TH AND 6TH DRIVEN GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £309.10
                                          from £309.10
                                          # 011
                                          MPN: 188497
                                          SPACER
                                          Thickness mm. 6,25
                                          from £27.51
                                          from £27.51
                                          # 011
                                          MPN: 212457
                                          SPACER
                                          Thickness mm. 6,00 - As an alternative
                                          from £65.27
                                          from £65.27
                                          # 012
                                          MPN: 184014
                                          ROLLER CAGE
                                          from £10.20
                                          from £10.20
                                          # 013
                                          MPN: 182293
                                          COMPLETE PINION FOR 2ND GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £146.14
                                          from £146.14
                                          # 013
                                          MPN: 220016
                                          COMPLETE PINION FOR 2ND GEAR
                                          Not for AUS and J - Not for cars GD opt. japan version
                                          from £189.35
                                          from £189.35
                                          # 013
                                          MPN: 220016
                                          COMPLETE PINION FOR 2ND GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £189.35
                                          from £189.35
                                          # 014
                                          MPN: 183976
                                          FLEXIBLE RING
                                          Thickness mm. 2,10
                                          from £6.56
                                          from £6.56
                                          # 014
                                          MPN: 185036
                                          FLEXIBLE RING
                                          Thickness mm. 1,85 - Possible fitting
                                          from £24.00
                                          from £24.00
                                          # 014
                                          MPN: 185037
                                          FLEXIBLE RING
                                          Thickness mm. 1,60 - Possible fitting
                                          from £23.14
                                          from £23.14
                                          # 015
                                          MPN: 183971
                                          BUSHING
                                          from £43.71
                                          from £43.71
                                          # 016
                                          MPN: 184016
                                          ROLLER CAGE
                                          from £15.32
                                          from £15.32
                                          # 017
                                          MPN: 182299
                                          COMPLETE PINION FOR 1ST GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                          from £339.95
                                          from £339.95
                                          # 017
                                          MPN: 220015
                                          COMPLETE PINION FOR 1ST GEAR
                                          Not for AUS and J - Not for cars GD opt. japan version
                                          from £189.35
                                          from £189.35
                                          # 017
                                          MPN: 220015
                                          COMPLETE PINION FOR 1ST GEAR
                                          Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                          from £189.35
                                          from £189.35
                                          # 018
                                          MPN: 183972
                                          RING
                                          Thickness mm. 5,10
                                          from £41.68
                                          from £41.68
                                          # 018
                                          MPN: 185040
                                          RING
                                          Thickness mm. 4,85 - Possible fitting
                                          from £28.42
                                          from £28.42
                                          # 018
                                          MPN: 185041
                                          RING
                                          Thickness mm. 4,60 - Possible fitting
                                          from £20.13
                                          from £20.13
                                          # 019
                                          MPN: 184020
                                          ROLLER BEARING
                                          from £77.23
                                          from £77.23
                                          # 020
                                          MPN: 184042
                                          FLEXIBLE RING
                                          from £6.76
                                          from £6.76
                                          # 021
                                          MPN: 198602
                                          COMPLETE PINION FOR REVERSE GEAR
                                          from £616.56
                                          from £616.56
                                          # 022
                                          MPN: 184018
                                          ROLLER CAGE
                                          from £15.29
                                          from £15.29
                                          # 023
                                          MPN: 326260
                                          REVERSE GEAR COMPLETE SYNCHRONIZER
                                          from £1,174.42
                                          from £1,174.42
                                          This part replaces part number 193439
                                          # 024
                                          MPN: 184041
                                          FLEXIBLE RING
                                          from £3.09
                                          from £3.09
                                          # 025
                                          MPN: 183976
                                          FLEXIBLE RING
                                          Thickness mm. 2,10
                                          from £6.56
                                          from £6.56
                                          # 025
                                          MPN: 185036
                                          FLEXIBLE RING
                                          Thickness mm. 1,85 - Possible fitting
                                          from £24.00
                                          from £24.00
                                          # 025
                                          MPN: 185037
                                          FLEXIBLE RING
                                          Thickness mm. 1,60 - Possible fitting
                                          from £23.14
                                          from £23.14
                                          # 026
                                          MPN: 203800
                                          RING
                                          Thickness mm. 7,6
                                          from £14.08
                                          from £14.08
                                          # 026
                                          MPN: 203801
                                          RING
                                          Thickness mm. 7,3 - As an alternative
                                          from £43.14
                                          from £43.14
                                          # 027
                                          MPN: 200979
                                          SPACER
                                          from £33.55
                                          from £33.55
                                          # 028
                                          MPN: 185164
                                          1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                          from £712.43
                                          from £712.43
                                          # 029
                                          MPN: 183909
                                          SCREW
                                          Included in the Complete differential (Draw 3.21 Pos. 1)
                                          from £3.28
                                          from £3.28
                                          # 030
                                          MPN: 184017
                                          ROLLER CASING
                                          from £4.88
                                          from £4.88
                                          # 031
                                          MPN: 183975
                                          RING
                                          from £13.71
                                          from £13.71
                                          # 032
                                          MPN: 198612
                                          IDLE GEAR FOR REVERSE
                                          from £359.34
                                          from £359.34
                                          # 033
                                          -
                                          PAD FOR SYNCHRONIZER
                                          # 034
                                          -
                                          BALL
                                          # 035
                                          -
                                          SPRING FOR BALL
                                          # 036
                                          MPN: 188320
                                          PAD FOR SYNCHRONIZER / BALL / SPRING REPLACEMENT KIT
                                          from £6.75
                                          from £6.75
                                          # 037
                                          MPN: 193440
                                          PADS / SYNCHRO REVERSE GEAR KIT
                                          from £2.32
                                          from £2.32
                                          This part replaces part number 193484
                                          # 038
                                          MPN: 182326
                                          SPACER
                                          from £38.30
                                          from £38.30
                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
