340 - Gearbox Control Hydraulics: Power Unit

Maserati QTP. (2006) 4.2 Gearbox Control Hydraulics: Power Unit Parts Diagram

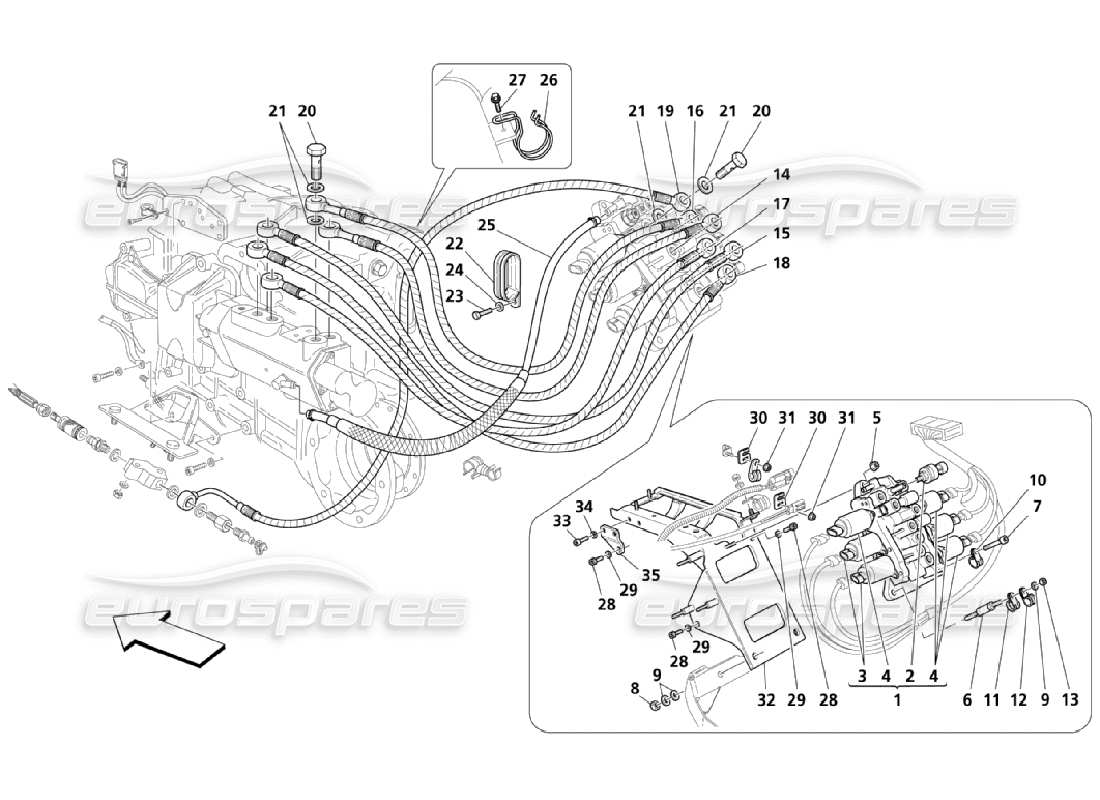

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 179140
                                                                      POWER UNIT
                                                                      from £901.21
                                                                      from £901.21
                                                                      # 002
                                                                      MPN: 980001156
                                                                      PRESSURE SENSOR
                                                                      from £192.72
                                                                      from £192.72
                                                                      This part replaces part number 190662
                                                                      # 003
                                                                      MPN: 980001155
                                                                      PPV VALVE KIT
                                                                      from £546.50
                                                                      from £546.50
                                                                      # 004
                                                                      MPN: 980001154
                                                                      QPV VALVE KIT
                                                                      from £546.50
                                                                      from £546.50
                                                                      # 005
                                                                      MPN: 14066021
                                                                      NUT
                                                                      from £1.61
                                                                      from £1.61
                                                                      # 006
                                                                      MPN: 202174
                                                                      STUD
                                                                      from £3.24
                                                                      from £3.24
                                                                      # 007
                                                                      MPN: 14306824
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 008
                                                                      MPN: 15896214
                                                                      NUT
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 15896211
                                                                      # 009
                                                                      MPN: 12601374
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 010
                                                                      MPN: 10450190
                                                                      BRACKET WITH SHEATH
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 011
                                                                      MPN: 172842
                                                                      BRACKET WITH SHEATH
                                                                      from £5.12
                                                                      from £5.12
                                                                      # 012
                                                                      MPN: 10441390
                                                                      BRACKET WITH SHEATH
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 013
                                                                      MPN: 14058411
                                                                      NUT
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 014
                                                                      MPN: 185977
                                                                      COMPLETE EV1 PIPE
                                                                      from £297.43
                                                                      from £297.43
                                                                      # 015
                                                                      MPN: 185978
                                                                      COMPLETE EV2 PIPE
                                                                      from £270.34
                                                                      from £270.34
                                                                      # 016
                                                                      MPN: 185979
                                                                      COMPLETE EV3 PIPE
                                                                      from £297.43
                                                                      from £297.43
                                                                      # 017
                                                                      MPN: 185980
                                                                      COMPLETE EV4 PIPE
                                                                      from £270.34
                                                                      from £270.34
                                                                      # 018
                                                                      MPN: 185981
                                                                      COMPLETE EV5 PIPE
                                                                      from £270.34
                                                                      from £270.34
                                                                      # 019
                                                                      MPN: 199920
                                                                      PIPE FROM POWER UNIT TO BLOCK
                                                                      from £277.02
                                                                      from £277.02
                                                                      # 020
                                                                      MPN: 171454
                                                                      UNION
                                                                      from £26.41
                                                                      from £26.41
                                                                      # 020
                                                                      MPN: 204543
                                                                      UNION
                                                                      Actuator side
                                                                      from £53.29
                                                                      from £53.29
                                                                      # 020
                                                                      MPN: 204545
                                                                      UNION
                                                                      Power unit side
                                                                      from £55.03
                                                                      from £55.03
                                                                      # 021
                                                                      MPN: 10261060
                                                                      GASKET
                                                                      from £0.49
                                                                      from £0.49
                                                                      This part replaces part number 274036
                                                                      # 022
                                                                      MPN: 186299
                                                                      CLAMP
                                                                      from £23.79
                                                                      from £23.79
                                                                      # 023
                                                                      MPN: 14305724
                                                                      SCREW
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 024
                                                                      MPN: 12601279
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 025
                                                                      MPN: 980001161
                                                                      RECYCLE PIPE KIT
                                                                      from £76.38
                                                                      from £76.38
                                                                      This part replaces part number 260538 - and 2 more. Click to view details
                                                                      # 026
                                                                      MPN: 188971
                                                                      BRACKET
                                                                      from £2.97
                                                                      from £2.97
                                                                      # 027
                                                                      MPN: 16297034
                                                                      SCREW
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 028
                                                                      MPN: 14301924
                                                                      SCREW
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 029
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12601270
                                                                      # 030
                                                                      MPN: 162606
                                                                      CLIP
                                                                      from £0.84
                                                                      from £0.84
                                                                      # 031
                                                                      MPN: 14058411
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 033
                                                                      MPN: 14305724
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 034
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12601270
                                                                      # 035
                                                                      MPN: 186906
                                                                      BRACKET
                                                                      from £18.09
                                                                      from £18.09
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
