600 - Wheel Rim And Tyre

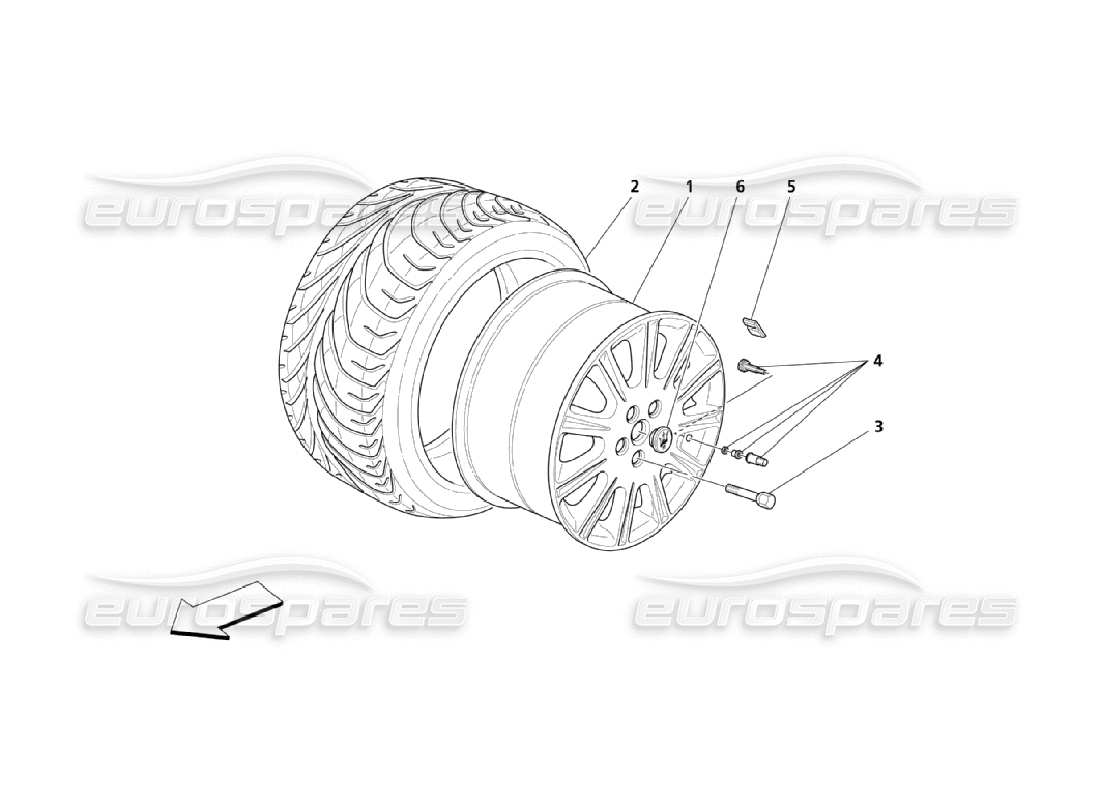

Maserati QTP. (2006) 4.2 Wheel Rim And Tyre Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
192263
FRONT WHEEL RIM 18
STANDARD
from
£418.18
from
£418.18
#
001
MPN:
192264
Rear WHEEL18
from
£236.25
from
£236.25
#
001
MPN:
193841
REAR WHEEL RIM 19
optional
Supersession
Supersession
#
001
MPN:
212062
FRONT WHEEL RIM 19
Optional - BallPolished
Supersession
Supersession
#
001
MPN:
212063
REAR WHEEL 19
CHROME POLISHED
from
£472.50
from
£472.50
#
001
MPN:
244861
FRONT WHEEL RIM
20 Multitrident
Supersession
Supersession
#
001
MPN:
82380706
FRONT WHEEL RIM 19
optional
from
£664.98
from
£664.98
This part replaces part number 193840
#
001
MPN:
82380906
FRONT WHEEL RIM 20
Version Sport GT
from
£413.36
from
£413.36
This part replaces part number 219321
#
001
MPN:
82381006
REAR WHEEL RIM 20
Version Sport GT
from
£240.16
from
£240.16
This part replaces part number 219322
- and 2 more. Click to view details
#
002
-
FRONT TYRE
not as spare part
#
002
-
REAR TYRE
not as spare part
#
003
MPN:
247702
WHEEL STUD
from
£7.50
from
£7.50
This part replaces part number 192724
#
004
MPN:
184240
VALVE
STANDARD
from
£9.58
from
£9.58
#
004
MPN:
185328
VALVE
Optional - Tyres pressure control system
from
£12.33
from
£12.33
#
005
MPN:
10770693
COUNTERWEIGHT
5 GR.
Supersession
Supersession
This part replaces part number 155302
#
005
MPN:
10770793
COUNTERWEIGHT
10 GR.
Supersession
Supersession
This part replaces part number 162677 which we have in stock
#
005
MPN:
155302
COUNTERWEIGHT
60 Gr. - Valid till stock exhaustion
Supersession
Supersession
#
005
MPN:
162677
COUNTERWEIGHT
90 Gr. - Valid till stock exhaustion
from
£5.65
from
£5.65
#
006
MPN:
82336806
WHEEL BADGE
(SILVER)
from
£13.97
from
£13.97
This part replaces part number 217753
#
006
MPN:
82364606
RIM CUP
Version Sport GT
from
£13.97
from
£13.97
This part replaces part number 217754
#
01
MPN:
82380001
19'' WHEELS SET
(82380706 X2 & 82380806 X2)
from
£1,989.75
from
£1,989.75
