maserati qtp. (2006) 4.2 side lights parts diagram

832 - Side Lights

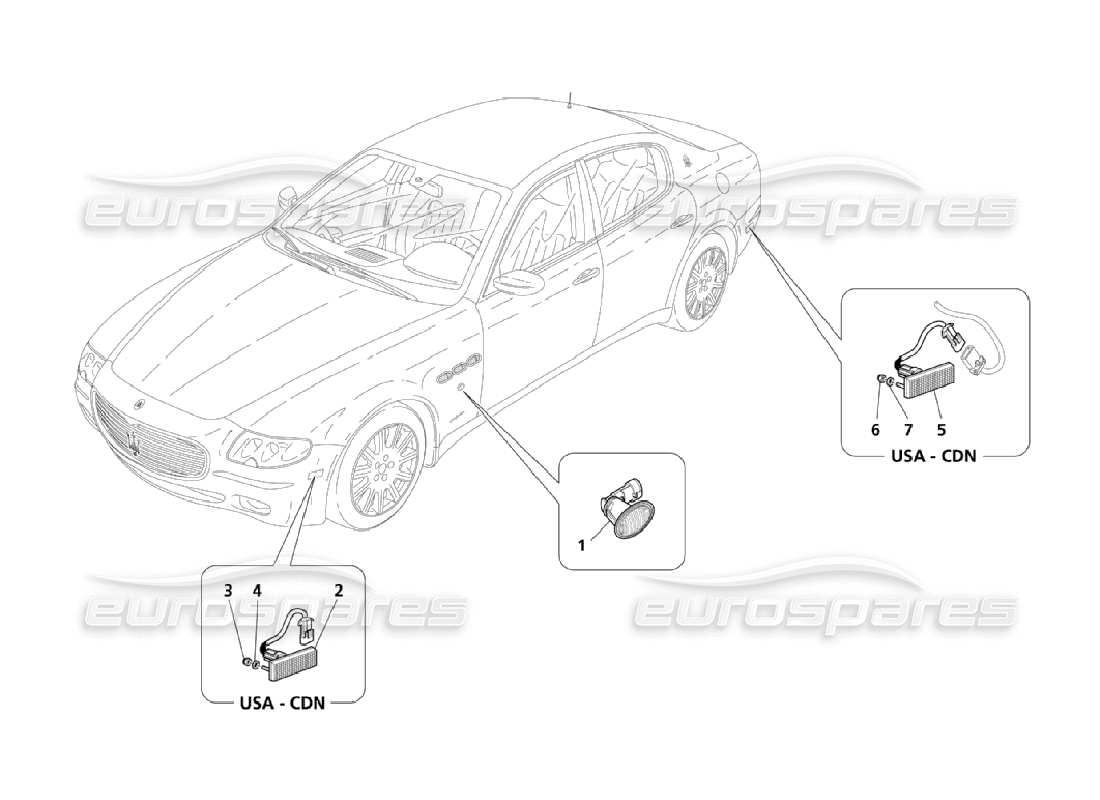

Maserati QTP. (2006) 4.2 Side Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 247024
SIDE LIGHT
replaces: 198378
from £7.57
from £7.57
This part replaces part number 198378
# 001
MPN: 247024
SIDE LIGHT
from £7.57
from £7.57
This part replaces part number 198378
# 002
MPN: 205328
RH FRONT SIDEMARKER LAMP
Valid for USA and CDN
from £23.03
from £23.03
# 002
MPN: 205329
LH FRONT SIDEMARKER LAMP
Valid for USA and CDN
from £23.03
from £23.03
# 003
MPN: 14084111
NUT
Valid for USA and CDN
from £0.53
from £0.53
# 004
MPN: 12638124
WASHER
Valid for USA and CDN
from £0.53
from £0.53
# 005
MPN: 205326
RH REAR SIDEMARKER LAMP
Valid for USA and CDN
from £33.17
from £33.17
# 005
MPN: 205327
LH REAR SIDEMARKER LAMP
Valid for USA and CDN
from £34.33
from £34.33
# 006
MPN: 14084111
NUT
Valid for USA and CDN
from £0.53
from £0.53
# 007
MPN: 12638124
WASHER
Valid for USA and CDN
from £0.53
from £0.53
