841 - A.C. Group: Dashboard Parts

Maserati QTP. (2006) 4.2 A.C. Group: Dashboard Parts Parts Diagram

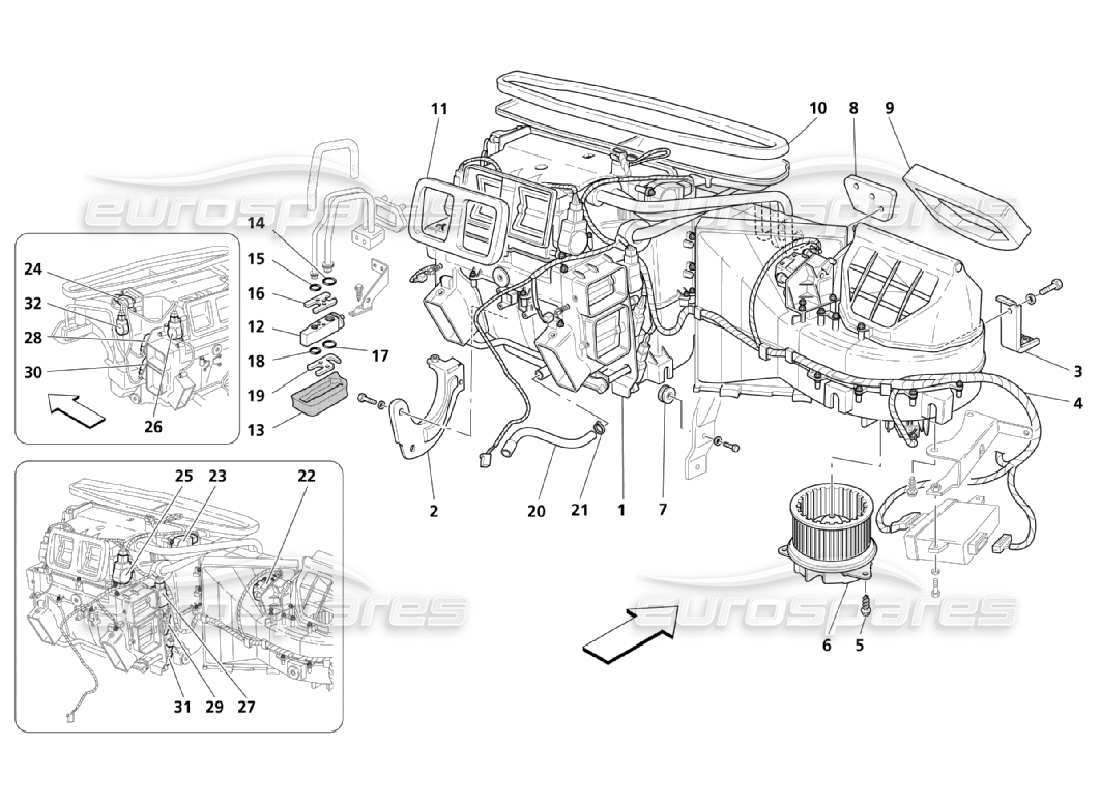

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 66551700
                                  COMPLETE AIR CONDITION SET
                                  Not for GD - Valid till stock exhaustion
                                  Supersession
                                  Supersession
                                  # 001
                                  MPN: 67861700
                                  COMPLETE AIR CONDITION SET
                                  Valid for GD - Valid till stock exhaustion
                                  from £1,380.29
                                  from £1,380.29
                                  # 001
                                  MPN: 68462300
                                  COMPLETE AIR CONDITION SET
                                  Not for GD - Valid after stock exhaustion of 66551700
                                  from £2,509.62
                                  from £2,509.62
                                  This part replaces part number 66551700
                                  # 001
                                  MPN: 68462400
                                  COMPLETE AIR CONDITION SET
                                  Valid for GD - Valid after stock exhaustion of 67861700
                                  from £1,380.29
                                  from £1,380.29
                                  This part replaces part number 67861700 which we have in stock - and 1 more. Click to view details
                                  # 002
                                  MPN: 67265400
                                  A.C. SUPPORT BRACKET
                                  Not for GD - Not Included in the Complete air condition set (Pos. 1)
                                  from £13.86
                                  from £13.86
                                  # 002
                                  MPN: 67715600
                                  A.C. SUPPORT BRACKET
                                  Valid for GD - Not Included in the Complete air condition set (Pos. 1)
                                  from £13.49
                                  from £13.49
                                  # 003
                                  MPN: 67265100
                                  REAR BRACKET
                                  Not Included in the Complete air condition set (Pos. 1)
                                  from £13.49
                                  from £13.49
                                  # 004
                                  MPN: 68391200
                                  ELECTRIC WIRING
                                  Not for GD
                                  from £322.68
                                  from £322.68
                                  # 004
                                  MPN: 68615900
                                  ELECTRIC WIRING
                                  Valid for GD
                                  from £335.95
                                  from £335.95
                                  # 005
                                  MPN: 68391900
                                  SCREW
                                  from £1.84
                                  from £1.84
                                  # 006
                                  MPN: 85256500
                                  FAN
                                  Not for GD
                                  from £473.99
                                  from £473.99
                                  This part replaces part number 68391000
                                  # 006
                                  MPN: 85256600
                                  FAN
                                  Valid for GD
                                  from £493.28
                                  from £493.28
                                  This part replaces part number 68615800
                                  # 007
                                  MPN: 68389800
                                  RUBBER
                                  from £4.57
                                  from £4.57
                                  # 008
                                  MPN: 68392400
                                  WATER PIPE SINK
                                  from £12.57
                                  from £12.57
                                  # 009
                                  MPN: 68389500
                                  INLET SINK
                                  from £18.84
                                  from £18.84
                                  # 010
                                  MPN: 68390000
                                  SINK FOR DEFROST DUCTING
                                  from £17.45
                                  from £17.45
                                  # 011
                                  MPN: 68391800
                                  FRONT SINK
                                  from £3.20
                                  from £3.20
                                  # 012
                                  MPN: 68391100
                                  TGK VALVE
                                  from £71.14
                                  from £71.14
                                  # 013
                                  MPN: 68389600
                                  SINK FOR VALVE
                                  from £2.95
                                  from £2.95
                                  # 014
                                  MPN: 68391300
                                  O.R. GASKET
                                  from £2.30
                                  from £2.30
                                  # 015
                                  MPN: 66309300
                                  O.R. GASKET
                                  from £0.95
                                  from £0.95
                                  # 016
                                  MPN: 64281500
                                  UPPER FLANGE
                                  from £2.70
                                  from £2.70
                                  This part replaces part number 67592000
                                  # 017
                                  MPN: 66309500
                                  O.R. GASKET
                                  from £10.65
                                  from £10.65
                                  # 018
                                  MPN: 66309400
                                  O.R. GASKET
                                  from £10.65
                                  from £10.65
                                  # 019
                                  MPN: 67588300
                                  LOWER FLANGE
                                  from £12.99
                                  from £12.99
                                  # 020
                                  MPN: 68392500
                                  SLEEVE
                                  from £15.37
                                  from £15.37
                                  # 021
                                  MPN: 68392600
                                  CLAMP
                                  from £5.91
                                  from £5.91
                                  # 022
                                  MPN: 68887800
                                  ACTUATOR
                                  Recycle - Not for GD
                                  Supersession
                                  Supersession
                                  # 022
                                  MPN: 69050700
                                  ACTUATOR
                                  Recycle - Valid for GD
                                  from £111.98
                                  from £111.98
                                  # 023
                                  MPN: 69050000
                                  ACTUATOR
                                  RH defroster ducting
                                  Supersession
                                  Supersession
                                  # 024
                                  MPN: 69050300
                                  ACTUATOR
                                  LH defroster ducting
                                  Supersession
                                  Supersession
                                  # 025
                                  MPN: 69050100
                                  ACTUATOR
                                  RH front ventilation
                                  Supersession
                                  Supersession
                                  # 026
                                  MPN: 69050200
                                  ACTUATOR
                                  LH front ventilation
                                  Supersession
                                  Supersession
                                  # 027
                                  MPN: 68886800
                                  ACTUATOR
                                  RH lateral ventilation
                                  Supersession
                                  Supersession
                                  # 028
                                  MPN: 85470300
                                  ACTUATOR
                                  LH lateral ventilation
                                  from £141.99
                                  from £141.99
                                  This part replaces part number 69050500
                                  # 029
                                  MPN: 68886700
                                  ACTUATOR
                                  RH floor air ducting
                                  Supersession
                                  Supersession
                                  # 030
                                  MPN: 69050600
                                  ACTUATOR
                                  LH floor air ducting
                                  Supersession
                                  Supersession
                                  # 031
                                  MPN: 68887700
                                  ACTUATOR
                                  REAR AIR DUCTING
                                  Supersession
                                  Supersession
                                  # 032
                                  MPN: 69050400
                                  ACTUATOR
                                  ByPass
                                  from £107.24
                                  from £107.24
