maserati qtp. (2006) 4.2 main cables (page 2-2) parts diagram

860b - Main Cables (Page 2-2)

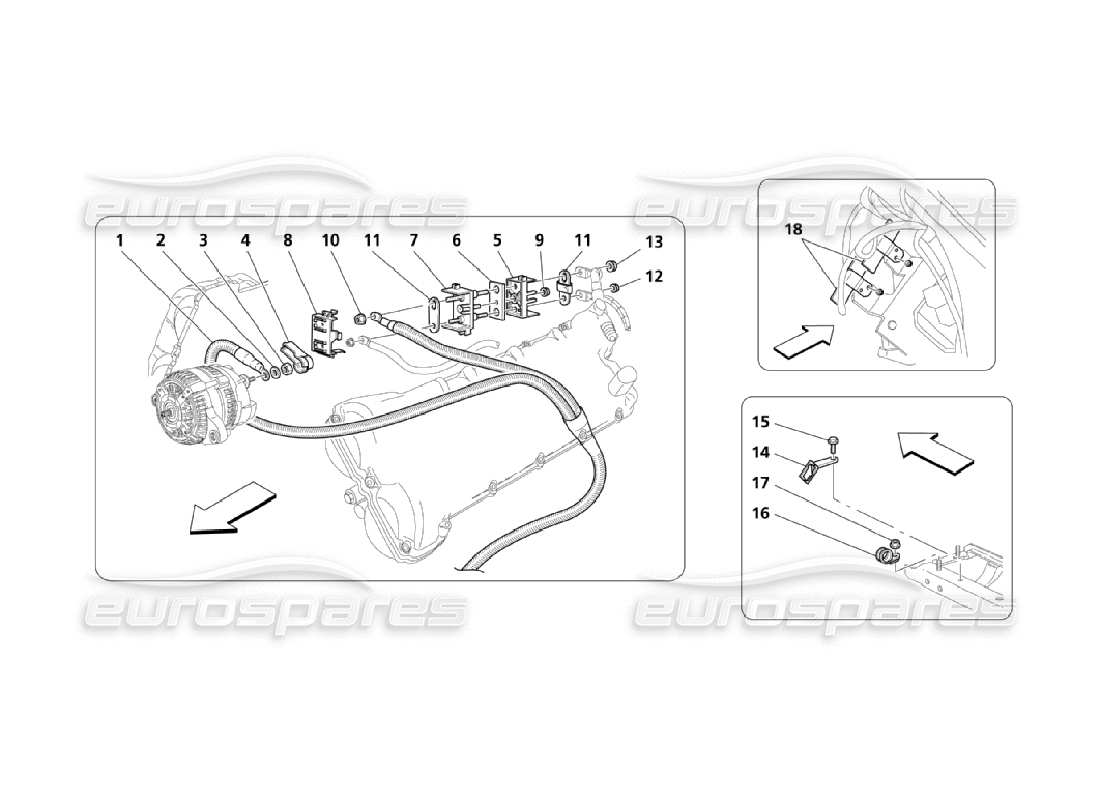

Maserati QTP. (2006) 4.2 Main Cables (Page 2-2) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 194536
                                CABLE FROM ALTERNATOR TO STARTER MOTOR
                                Not for GD - Valid till stock exhaustion
                                from £62.73
                                from £62.73
                                # 001
                                MPN: 203301
                                CABLE FROM ALTERNATOR TO STARTER MOTOR
                                Valid for GD - Valid till stock exhaustion
                                from £88.68
                                from £88.68
                                # 001
                                MPN: 225456
                                CABLE FROM ALTERNATOR TO STARTER MOTOR
                                Not for GD - Valid after stock exhaustion of 194536
                                from £62.73
                                from £62.73
                                This part replaces part number 194536 which we have in stock
                                # 001
                                MPN: 225457
                                CABLE FROM ALTERNATOR TO STARTER MOTOR
                                Valid for GD - Valid after stock exhaustion of 203301
                                from £48.77
                                from £48.77
                                # 002
                                MPN: 12601374
                                WASHER
                                from £0.47
                                from £0.47
                                # 003
                                MPN: 16102314
                                NUT
                                from £0.47
                                from £0.47
                                # 004
                                MPN: 154803
                                PROTECTION BOOT
                                from £2.58
                                from £2.58
                                # 005
                                MPN: 60510161
                                INSERT
                                from £1.58
                                from £1.58
                                # 006
                                MPN: 393050343
                                GASKET
                                from £1.55
                                from £1.55
                                # 007
                                MPN: 60510160
                                INSERT
                                from £10.11
                                from £10.11
                                INSERTO GUIDA FILI Genuine Maserati Part - Used In stock
                                COMPLETE WITH 5,6,8,9,10,11,12 SEE PICTURE
                                # 008
                                MPN: 60616507
                                COVER
                                from £2.30
                                from £2.30
                                This part replaces part number 393050340
                                # 009
                                MPN: 14084211
                                NUT
                                from £0.71
                                from £0.71
                                This part replaces part number 14084217
                                # 010
                                MPN: 14059311
                                NUT
                                from £0.26
                                from £0.26
                                # 011
                                MPN: 393050344
                                CONNECTION ELEMENT
                                from £1.79
                                from £1.79
                                # 012
                                MPN: 14059214
                                NUT M6
                                from £0.47
                                from £0.47
                                This part replaces part number 12578121
                                # 013
                                MPN: 14084417
                                NUT
                                from £1.21
                                from £1.21
                                # 014
                                MPN: 189936
                                BRACKET FOR CONNECTOR FIXING
                                from £31.51
                                from £31.51
                                # 016
                                MPN: 10441790
                                BRACKET WITH SHEATH
                                from £0.47
                                from £0.47
                                # 017
                                MPN: 14058411
                                NUT
                                from £0.47
                                from £0.47
                                # 018
                                MPN: 183276
                                RESISTOR
                                Included in the trunk compartment cable (Draw 8.60 Pos. 2)
                                from £40.14
                                from £40.14
