maserati qtp. (2006) 4.2 info-telematic system (page 2-3) parts diagram

871b - Info-Telematic System (Page 2-3)

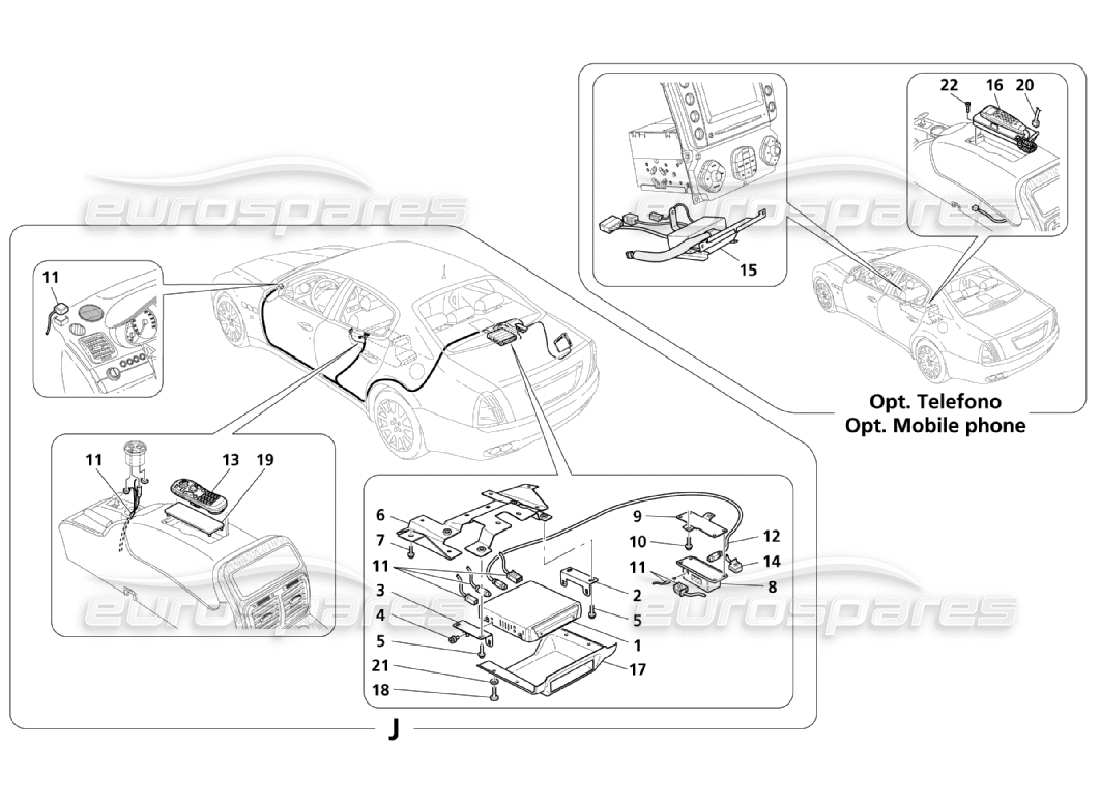

Maserati QTP. (2006) 4.2 Info-Telematic System (Page 2-3) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 191158
NIT
Valid for J
from £6,120.85
from £6,120.85
# 002
MPN: 209818
RH BRACKET
Valid for J
from £18.09
from £18.09
# 003
MPN: 209816
LH BRACKET
Valid for J
from £79.99
from £79.99
# 004
MPN: 209819
SCREW
Valid for J
from £12.44
from £12.44
# 005
MPN: 16285924
SCREW
Valid for J
from £0.53
from £0.53
# 006
MPN: 208500
BRACKET
Valid for J
from £44.21
from £44.21
# 007
MPN: 16285924
SCREW
Valid for J
from £0.52
from £0.52
# 008
MPN: 206748
VIDEO CONVERTER
Valid for J
from £658.89
from £658.89
# 009
MPN: 208501
BRACKET
Valid for J
from £19.39
from £19.39
# 010
MPN: 16285924
SCREW
Valid for J
from £0.53
from £0.53
# 011
MPN: 191162
CABLE CONNECTION NIT TO VIDEO CONVERTER
Valid for J
from £1,445.07
from £1,445.07
# 012
MPN: 209008
CABLE CONNECTION NIT TO VIDEO CONVERTER
Valid for J
from £321.67
from £321.67
# 013
MPN: 191156
REMOTE CONTROL
Valid for J
from £287.01
from £287.01
# 014
MPN: 191169
CABLE CONNECTION TV CONTROL UNIT TO VIDEO CONVERTER
Optional TV - Valid for J
from £55.15
from £55.15
# 015
MPN: 16285924
SCREW
from £0.54
from £0.54
# 015
MPN: 198558
GSMBOX
Optional Mobile phone - Not for USA, CDN and J
from £937.41
from £937.41
# 015
MPN: 198559
GSMBOX
Optional Mobile phone - Valid for USA and CDN
from £2,223.10
from £2,223.10
# 016
MPN: 206376
COMPLETE PHONE RECEIVER
Optional Mobile phone - Not for J
from £675.85
from £675.85
# 017
MPN: 68194300
COVER
Valid for J
from £47.00
from £47.00
# 018
MPN: 13274472
SCREW
Valid for J
from £0.51
from £0.51
# 019
MPN: 68199300
REMOTE CONTROL SUPPORT
Valid for J - Included in the Complete tunnel cover box (Draw 9.51 Pos. 2)
from £763.01
from £763.01
# 020
MPN: 204328
PHONE RECEIVER CABLE
Optional Mobile phone - Not for J - Included in the Complete tunnel cover box (Draw 9.51 Pos. 2)
from £22.75
from £22.75
# 021
MPN: 12638170
WASHER
Valid for J
from £1.08
from £1.08
# 022
MPN: 67069700
SCREW
Optional Mobile phone - Not for J
from £1.31
from £1.31
