930 - Front Doors: Upholstery

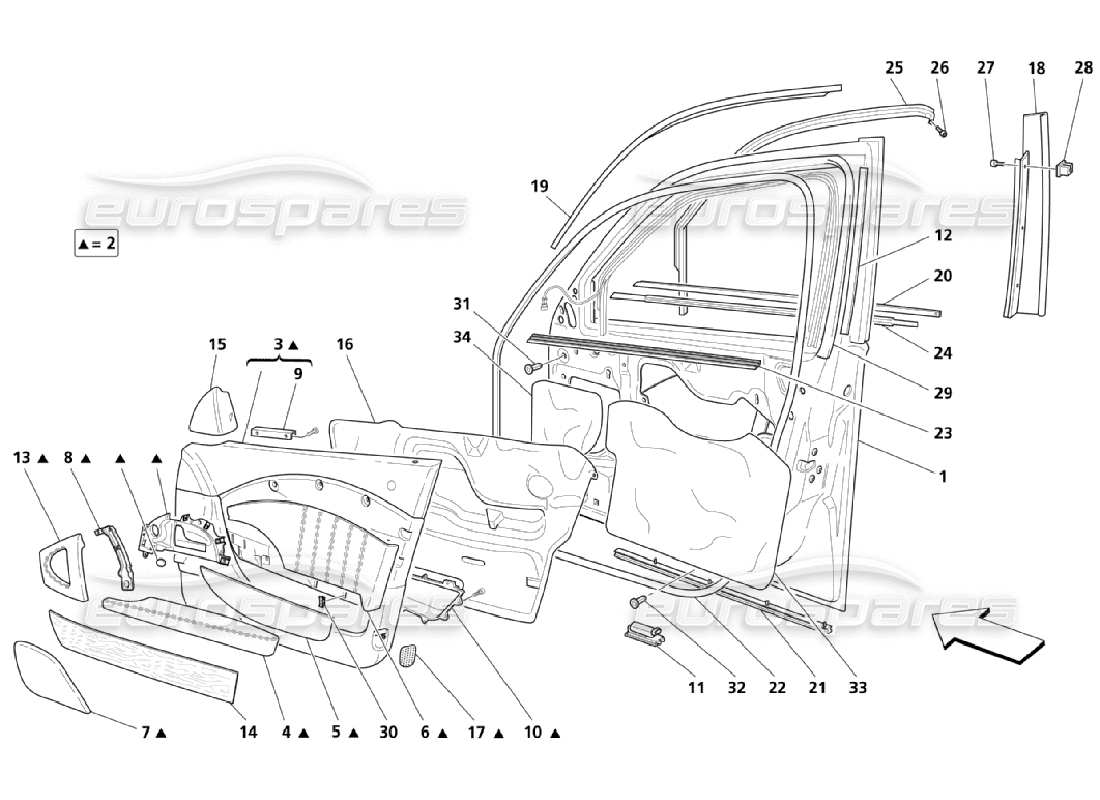

Maserati QTP. (2006) 4.2 Front Doors: Upholstery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67062000
COMPLETE RH FRONT DOOR
from £1,621.04
from £1,621.04
# 001
MPN: 67062100
COMPLETE LH FRONT DOOR
from £1,621.04
from £1,621.04
# 002
MPN: 98601...
COMPLETE RH FRONT DOOR PANEL
Leather lining - Not for GD
# 002
MPN: 98602...
COMPLETE LH FRONT DOOR PANEL
Leather lining - Not for GD
# 002
MPN: 98605...
COMPLETE RH FRONT DOOR PANEL
Leather lining - Valid for GD
# 002
MPN: 98606...
COMPLETE LH FRONT DOOR PANEL
Leather lining - Valid for GD
# 002
MPN: 98609...
COMPLETE RH FRONT DOOR PANEL
Natural leather lining - Not for GD
# 002
MPN: 98610...
COMPLETE LH FRONT DOOR PANEL
Natural leather lining - Not for GD
# 002
MPN: 98613...
COMPLETE RH FRONT DOOR PANEL
Natural leather lining - Valid for GD
# 002
MPN: 98614...
COMPLETE LH FRONT DOOR PANEL
Natural leather lining - Valid for GD

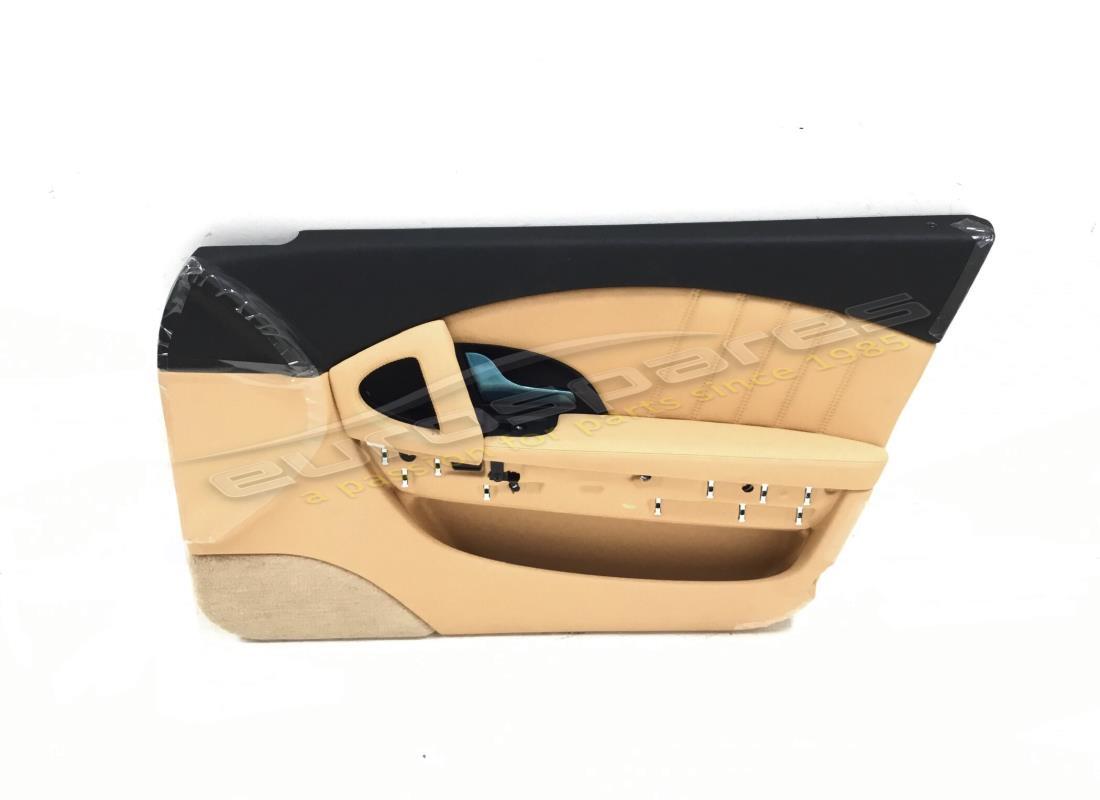

# 003
MPN: 981328201
RH FRONT DOOR PANEL
-Beige
from £250.95
from £250.95
# 003
MPN: 98603...
RH FRONT DOOR PANEL
Leather lining - Not for GD
# 003
MPN: 986040000
LH FRONT DOOR PANEL
Leather lining - Not for GD - Black
from £2,100.08
from £2,100.08
PANNELLO PORTA ANT.SX.NERO-N Genuine Maserati Part - New (other) In stock
Leather lining - Not for GD - Black
Leather lining - Not for GD - Black
# 003
MPN: 98607...
RH FRONT DOOR PANEL
Leather lining - Valid for GD
# 003
MPN: 98608...
LH FRONT DOOR PANEL
Leather lining - Valid for GD
# 003
MPN: 98611...
RH FRONT DOOR PANEL
Natural leather lining - Not for GD
# 003
MPN: 98611...
RH FRONT DOOR PANEL
Natural leather lining - Valid for GD
# 003
MPN: 98612...
LH FRONT DOOR PANEL
Natural leather lining - Not for GD
# 003
MPN: 98616...
LH FRONT DOOR PANEL
Natural leather lining - Valid for GD
# 004
MPN: 9813033..
RH FRONT ARMREST
Leather lining - Not for GD
Supersession
Supersession
# 004
MPN: 9813034..
LH FRONT ARMREST
Leather lining - Not for GD
Supersession
Supersession
# 004
MPN: 9813258..
LH FRONT ARMREST
Natural leather lining - Valid for GD
# 004
MPN: 9813284..
RH FRONT ARMREST
Leather lining - Valid for GD
Supersession
Supersession
# 004
MPN: 9813285..
LH FRONT ARMREST
Leather lining - Valid for GD
Supersession
Supersession
# 004
MPN: 9813844..
RH FRONT ARMREST
Natural leather lining - Not for GD
Supersession
Supersession
# 004
MPN: 9813845..
LH FRONT ARMREST
Natural leather lining - Not for GD
Supersession
Supersession
# 004
MPN: 9813846..
RH FRONT ARMREST
Natural leather lining - Valid for GD
Supersession
Supersession
# 005
MPN: 66936800
INNER COVER FOR RH FRONT POCKET
from £34.46
from £34.46
# 005
MPN: 66936900
INNER COVER FOR LH FRONT POCKET
from £45.19
from £45.19
# 006
MPN: 9813037..
RH FRONT PANEL
Leather lining
Supersession
Supersession
# 006
MPN: 9813038..
LH FRONT PANEL
Leather lining
Supersession
Supersession
# 006
MPN: 9813848..
RH FRONT PANEL
Natural leather lining
Supersession
Supersession
# 006
MPN: 9813849..
LH FRONT PANEL
Natural leather lining
Supersession
Supersession
# 007
MPN: 9813039..
RH FRONT ANGLE PIECE PANEL
Supersession
Supersession
# 007
MPN: 981304001
LH FRONT ANGLE PIECE PANEL
BEIGE
from £204.58
from £204.58
# 008
MPN: 66939400
RH DOOR HANDLE
from £41.39
from £41.39
# 008
MPN: 66939500
LH DOOR HANDLE
from £22.94
from £22.94
# 009
MPN: 66938400
PROFILE
from £26.64
from £26.64
# 010
MPN: 9813018..
RH FRONT POCKET INSERT
Leather lining
Supersession
Supersession
# 010
MPN: 9813019..
LH FRONT POCKET INSERT
Leather lining
Supersession
Supersession
# 010
MPN: 9813850..
RH FRONT POCKET INSERT
Natural leather lining
Supersession
Supersession
# 010
MPN: 9813851..
LH FRONT POCKET INSERT
Natural leather lining
Supersession
Supersession
# 011
MPN: 273981
UNDER DOOR LAMP
from £11.74
from £11.74
This part replaces part number 188254
# 012
MPN: 67860600
FRONT DOOR PILLAR GASKET
from £13.69
from £13.69
# 013
MPN: 9813041..
RH DOOR HANDLE
Leather lining
Supersession
Supersession
# 013
MPN: 9813042..
LH DOOR HANDLE
Leather lining
Supersession
Supersession
# 013
MPN: 9813852..
RH DOOR HANDLE
Natural leather lining
Supersession
Supersession
# 013
MPN: 9813853..
LH DOOR HANDLE
Natural leather lining
Supersession
Supersession
# 014
MPN: 9813369..
COMPLETE RH FRONT MOULDING
from £65.10
from £65.10
# 014
MPN: 9813370..
COMPLETE LH FRONT MOULDING
from £47.25
from £47.25
# 015
MPN: 67203200
RH INNER MOULDING TRIANGLE
from £11.34
from £11.34
# 015
MPN: 67203300
LH INNER MOULDING TRIANGLE
from £14.75
from £14.75
# 016
MPN: 67277600
RH WATER SHIELD IN THE DOOR
from £30.50
from £30.50
# 016
MPN: 67277700
LH WATER SHIELD IN THE DOOR
from £30.50
from £30.50
# 017
MPN: 66938200
RH REFLECTOR
from £17.17
from £17.17
# 017
MPN: 66938300
LH REFLECTOR
from £26.22
from £26.22
# 018
MPN: 67066300
RH FRONT DOOR OUTER TRIM
from £143.90
from £143.90
# 018
MPN: 67066400
LH FRONT DOOR OUTER TRIM
from £79.15
from £79.15
# 019
MPN: 66513000
RH UPPER FRONT MOULDING
from £116.30
from £116.30
# 019
MPN: 66513100
LH UPPER FRONT MOULDING
from £153.00
from £153.00
# 020
MPN: 68473100
RH LOWER FRONT MOULDING
from £58.33
from £58.33
This part replaces part number 66513200
# 020
MPN: 68473200
LH LOWER FRONT MOULDING
from £165.88
from £165.88
This part replaces part number 66513300
# 021
MPN: 67476600
RH FRONT UNDERDOOR GASKET
from £23.44
from £23.44
# 021
MPN: 67560800
LH FRONT UNDERDOOR GASKET
from £23.44
from £23.44
# 022
MPN: 67474000
RH FRONT DOOR INTERMEDIATE GASKET
from £56.84
from £56.84
# 022
MPN: 67474100
LH FRONT DOOR INTERMEDIATE GASKET
from £56.84
from £56.84
# 023
MPN: 66512600
RH FRONT INNER GLASS SCRAPER GASKET
Valid till stock exhaustion
Supersession
Supersession
# 023
MPN: 66512700
LH FRONT INNER GLASS SCRAPER GASKET
Valid till stock exhaustion
Supersession
Supersession
# 023
MPN: 68472100
RH FRONT INNER GLASS SCRAPER GASKET
Valid after stock exhaustion of 66512600
from £37.83
from £37.83
This part replaces part number 66512600 - and 1 more. Click to view details
# 023
MPN: 68472200
LH FRONT INNER GLASS SCRAPER GASKET
Valid after stock exhaustion of 66512700
from £37.83
from £37.83
This part replaces part number 66512700 - and 2 more. Click to view details
# 024
MPN: 67475900
RH FRONT OUTER GLASS SCRAPER GASKET
from £78.75
from £78.75
# 024
MPN: 67476000
LH FRONT OUTER GLASS SCRAPER GASKET
from £69.20
from £69.20
# 025
MPN: 67473200
RH FRONT DOOR UPPER GASKET
from £127.58
from £127.58
# 025
MPN: 67473300
LH FRONT DOOR UPPER GASKET
from £127.58
from £127.58
# 026
MPN: 14590787
FIXING BUTTON
from £1.13
from £1.13
# 027
MPN: 16082704
SCREW
from £1.13
from £1.13
This part replaces part number 16082701
# 028
MPN: 14115680
BLOCK
from £0.53
from £0.53
# 029
MPN: 67860800
RH FRONT DOOR FRAME COVER
from £37.63
from £37.63
# 029
MPN: 67860900
LH FRONT DOOR FRAME COVER
from £27.20
from £27.20
# 030
MPN: 67874900
CLIP
from £3.48
from £3.48
# 031
MPN: 67874800
BUSHING
from £1.61
from £1.61
# 032
MPN: 67874700
BUSHING
from £1.13
from £1.13
# 033
MPN: 67985200
RH FRONT DOOR WATER SHIELD
from £13.60
from £13.60
# 033
MPN: 67985300
LH FRONT DOOR WATER SHIELD
from £13.60
from £13.60
# 034
MPN: 68191100
RH FRONT UPPER DEFLECTOR
from £6.68
from £6.68
# 034
MPN: 68191200
LH FRONT UPPER DEFLECTOR
from £6.68
from £6.68
-4.2-part-diagram-931.webp "MASERATI QTP. (2006) 4.2 FRONT DOORS: MOVEMENT DEVICES PARTS DIAGRAM")
-4.2-part-diagram-932.webp "MASERATI QTP. (2006) 4.2 REAR DOORS: PANELS PARTS DIAGRAM")
-4.2-part-diagram-933.webp "MASERATI QTP. (2006) 4.2 REAR DOORS: MOVEMENT DEVICES PARTS DIAGRAM")
-4.2-part-diagram-934.webp "MASERATI QTP. (2006) 4.2 GLASSES AND GASKETS PARTS DIAGRAM")
-4.2-part-diagram-935.webp "MASERATI QTP. (2006) 4.2 INNER AND OUTER REARVIEW MIRROR PARTS DIAGRAM")
-4.2-part-diagram-940.webp "MASERATI QTP. (2006) 4.2 FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-4.2-part-diagram-941.webp "MASERATI QTP. (2006) 4.2 FRONT SEATS: MECHANICS & ELECTRONICS PARTS DIAGRAM")
-4.2-part-diagram-942.webp "MASERATI QTP. (2006) 4.2 REAR SEATS: LININGS PARTS DIAGRAM")
-4.2-part-diagram-943.webp "MASERATI QTP. (2006) 4.2 REAR SEATS: MECHANICAL AND ELECTRONIC UNITS PARTS DIAGRAM")
-4.2-part-diagram-944.webp "MASERATI QTP. (2006) 4.2 SIDE FLANK AND PASSENGERS COMPARTMENT PILLAR UPHOLSTERY PARTS DIAGRAM")
-4.2-part-diagram-945.webp "MASERATI QTP. (2006) 4.2 ROOF AND SUN VISORS PARTS DIAGRAM")
-4.2-part-diagram-946.webp "MASERATI QTP. (2006) 4.2 UNDER REAR WINDOW MOULDING PARTS DIAGRAM")
-4.2-part-diagram-950.webp "MASERATI QTP. (2006) 4.2 DASHBOARD ASSEMBLY PARTS DIAGRAM")
-4.2-part-diagram-951.webp "MASERATI QTP. (2006) 4.2 TUNNEL AND ACCESSORIES COMPARTMENT PARTS DIAGRAM")
-4.2-part-diagram-952.webp "MASERATI QTP. (2006) 4.2 DASHBOARD DRAWERS PARTS DIAGRAM")
-4.2-part-diagram-960.webp "MASERATI QTP. (2006) 4.2 PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-4.2-part-diagram-961.webp "MASERATI QTP. (2006) 4.2 TRUNK HOOD CARPETS PARTS DIAGRAM")
-4.2-part-diagram-962.webp "MASERATI QTP. (2006) 4.2 SOUND INSULATION IN CAR PARTS DIAGRAM")
-4.2-part-diagram-963.webp "MASERATI QTP. (2006) 4.2 THERMAL INSULATIONS IN CAR PARTS DIAGRAM")
-4.2-part-diagram-971.webp "MASERATI QTP. (2006) 4.2 REMOVABLE ROOF PARTS DIAGRAM")
-4.2-part-diagram-000.webp "MASERATI QTP. (2006) 4.2 SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-4.2-part-diagram-100.webp "MASERATI QTP. (2006) 4.2 CRANKCASE PARTS DIAGRAM")
-4.2-part-diagram-110.webp "MASERATI QTP. (2006) 4.2 CRANK MECHANISM PARTS DIAGRAM")
-4.2-part-diagram-111.webp "MASERATI QTP. (2006) 4.2 BELTS AUXILIARY PARTS PARTS DIAGRAM")
-4.2-part-diagram-120.webp "MASERATI QTP. (2006) 4.2 RH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-121.webp "MASERATI QTP. (2006) 4.2 LH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-122.webp "MASERATI QTP. (2006) 4.2 CAMSHAFTS FOR RH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-123.webp "MASERATI QTP. (2006) 4.2 CAMSHAFTS FOR LH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-124.webp "MASERATI QTP. (2006) 4.2 TIMING PARTS DIAGRAM")
-4.2-part-diagram-125.webp "MASERATI QTP. (2006) 4.2 VALVES PARTS DIAGRAM")
-4.2-part-diagram-126.webp "MASERATI QTP. (2006) 4.2 HYDRAULICS FOR TIMING PARTS DIAGRAM")
-4.2-part-diagram-140.webp "MASERATI QTP. (2006) 4.2 AIR INTAKE MANIFOLD AND THROTTLE HOLDER PARTS DIAGRAM")
-4.2-part-diagram-141.webp "MASERATI QTP. (2006) 4.2 AIR FILTER, INTAKE AND CONVEYOR PARTS DIAGRAM")
-4.2-part-diagram-142.webp "MASERATI QTP. (2006) 4.2 FUEL TANKS PARTS DIAGRAM")
-4.2-part-diagram-143a.webp "MASERATI QTP. (2006) 4.2 FUEL PUMPS AND PIPING - VALID TILL CAR 24274 PARTS DIAGRAM")
-4.2-part-diagram-143b.webp "MASERATI QTP. (2006) 4.2 FUEL PUMPS AND PIPING - VALID FROM CAR 24275 PARTS DIAGRAM")
-4.2-part-diagram-144.webp "MASERATI QTP. (2006) 4.2 FUEL VAPORS RECYCLE SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-150.webp "MASERATI QTP. (2006) 4.2 ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-160.webp "MASERATI QTP. (2006) 4.2 LUBRICATION: PIPING AND RECOVER PARTS DIAGRAM")
-4.2-part-diagram-161.webp "MASERATI QTP. (2006) 4.2 LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-4.2-part-diagram-162.webp "MASERATI QTP. (2006) 4.2 HEAT EXCHANGER PARTS DIAGRAM")
-4.2-part-diagram-163.webp "MASERATI QTP. (2006) 4.2 BLOW - BY SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-170.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: RADIATORS AND AIR CONVEYORS PARTS DIAGRAM")
-4.2-part-diagram-171.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: NOURICE AND PIPING PARTS DIAGRAM")
-4.2-part-diagram-172.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-4.2-part-diagram-180.webp "MASERATI QTP. (2006) 4.2 PRECATALYST AND CATALYST PARTS DIAGRAM")
-4.2-part-diagram-181.webp "MASERATI QTP. (2006) 4.2 SILENCERS PARTS DIAGRAM")
-4.2-part-diagram-190.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROL: INJECTION AND PHASE CHECK PARTS DIAGRAM")
-4.2-part-diagram-191.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROL: ENGINE STARTING PARTS DIAGRAM")
-4.2-part-diagram-201.webp "MASERATI QTP. (2006) 4.2 HYDRAULIC CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-211.webp "MASERATI QTP. (2006) 4.2 CLUTCH DISC & HOUSING FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-290.webp "MASERATI QTP. (2006) 4.2 CLUTCH ELECTRONIC CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-301.webp "MASERATI QTP. (2006) 4.2 DRIVER CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-310.webp "MASERATI QTP. (2006) 4.2 GEARS HOUSING PARTS DIAGRAM")
-4.2-part-diagram-311.webp "MASERATI QTP. (2006) 4.2 MAIN SHAFT GEARS PARTS DIAGRAM")
-4.2-part-diagram-312.webp "MASERATI QTP. (2006) 4.2 LAY SHAFT GEARS PARTS DIAGRAM")
-4.2-part-diagram-313.webp "MASERATI QTP. (2006) 4.2 INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-4.2-part-diagram-321.webp "MASERATI QTP. (2006) 4.2 REAR DIFFERENTIAL AND AXLE SHAFTS PARTS DIAGRAM")
-4.2-part-diagram-330.webp "MASERATI QTP. (2006) 4.2 TRANSMISSION TUBE PARTS DIAGRAM")
-4.2-part-diagram-340.webp "MASERATI QTP. (2006) 4.2 GEARBOX CONTROL HYDRAULICS: POWER UNIT PARTS DIAGRAM")
-4.2-part-diagram-341.webp "MASERATI QTP. (2006) 4.2 GEARBOX CONTROL HYDRAULICS: TANK AND PUMP PARTS DIAGRAM")
-4.2-part-diagram-350.webp "MASERATI QTP. (2006) 4.2 LUBRICATION AND COOLING FOR GEARBOX OIL PARTS DIAGRAM")
-4.2-part-diagram-390.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROLS (GEARBOX) PARTS DIAGRAM")
-4.2-part-diagram-400.webp "MASERATI QTP. (2006) 4.2 BRAKE BOOSTER SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-410.webp "MASERATI QTP. (2006) 4.2 FRONT WHEELS BRAKING PARTS PARTS DIAGRAM")
-4.2-part-diagram-411.webp "MASERATI QTP. (2006) 4.2 REAR WHEELS BRAKING PARTS PARTS DIAGRAM")
-4.2-part-diagram-420a.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 1-4) PARTS DIAGRAM")
-4.2-part-diagram-420b.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 2-4) PARTS DIAGRAM")
-4.2-part-diagram-420c.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 3-4) PARTS DIAGRAM")
-4.2-part-diagram-420d.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 4-4) PARTS DIAGRAM")
-4.2-part-diagram-430.webp "MASERATI QTP. (2006) 4.2 HAND-BRAKE CONTROL PARTS DIAGRAM")
-4.2-part-diagram-490.webp "MASERATI QTP. (2006) 4.2 BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-4.2-part-diagram-500.webp "MASERATI QTP. (2006) 4.2 SHAFT AND STEERING WHEEL GROUP PARTS DIAGRAM")
-4.2-part-diagram-510.webp "MASERATI QTP. (2006) 4.2 STEERING BOX & SERVO-CONTROL PUMP PARTS DIAGRAM")
-4.2-part-diagram-520.webp "MASERATI QTP. (2006) 4.2 COMPLETE PEDAL SUPPORT PARTS DIAGRAM")
-4.2-part-diagram-600.webp "MASERATI QTP. (2006) 4.2 WHEEL RIM AND TYRE PARTS DIAGRAM")
-4.2-part-diagram-610.webp "MASERATI QTP. (2006) 4.2 FRONT SUSPENSION PARTS DIAGRAM")
-4.2-part-diagram-611.webp "MASERATI QTP. (2006) 4.2 FRONT SUSPENSION PARTS PARTS DIAGRAM")
-4.2-part-diagram-612.webp "MASERATI QTP. (2006) 4.2 FRONT UNDERFRAME PARTS DIAGRAM")
-4.2-part-diagram-620.webp "MASERATI QTP. (2006) 4.2 REAR SUSPENSIONS PARTS DIAGRAM")
-4.2-part-diagram-621.webp "MASERATI QTP. (2006) 4.2 REAR SUSPENSION PARTS PARTS DIAGRAM")
-4.2-part-diagram-622.webp "MASERATI QTP. (2006) 4.2 REAR UNDERFRAME PARTS DIAGRAM")
-4.2-part-diagram-690.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROLS (SUSPENSIONS) PARTS DIAGRAM")
-4.2-part-diagram-700.webp "MASERATI QTP. (2006) 4.2 FRONT AIR-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-701.webp "MASERATI QTP. (2006) 4.2 PASSENGER AIR-BAG BLOCKING SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-702.webp "MASERATI QTP. (2006) 4.2 FRONT SIDE-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-704.webp "MASERATI QTP. (2006) 4.2 WINDOW-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-705.webp "MASERATI QTP. (2006) 4.2 CRASH SENSORS PARTS DIAGRAM")
-4.2-part-diagram-710.webp "MASERATI QTP. (2006) 4.2 FRONT SAFETY BELTS PARTS DIAGRAM")
-4.2-part-diagram-711.webp "MASERATI QTP. (2006) 4.2 REAR SAFETY BELTS PARTS DIAGRAM")
-4.2-part-diagram-720.webp "MASERATI QTP. (2006) 4.2 TYRES PRESSURE CONTROL SYSTEM -OPTIONAL- PARTS DIAGRAM")
-4.2-part-diagram-731.webp "MASERATI QTP. (2006) 4.2 TOOLS AND ACCESSORIES PARTS DIAGRAM")
-4.2-part-diagram-732.webp "MASERATI QTP. (2006) 4.2 TOOLS AND ACCESSORIES PARTS DIAGRAM")
-4.2-part-diagram-800.webp "MASERATI QTP. (2006) 4.2 CAR OUTER SERVICES PARTS DIAGRAM")
-4.2-part-diagram-810.webp "MASERATI QTP. (2006) 4.2 CAR INNER SERVICES PARTS DIAGRAM")
-4.2-part-diagram-820.webp "MASERATI QTP. (2006) 4.2 POWER PRODUCTION AND BATTERY PARTS DIAGRAM")
-4.2-part-diagram-830.webp "MASERATI QTP. (2006) 4.2 FRONT HEADLIGHTS PARTS DIAGRAM")
-4.2-part-diagram-831.webp "MASERATI QTP. (2006) 4.2 REAR LIGHTS PARTS DIAGRAM")
-4.2-part-diagram-832.webp "MASERATI QTP. (2006) 4.2 SIDE LIGHTS PARTS DIAGRAM")
-4.2-part-diagram-839.webp "MASERATI QTP. (2006) 4.2 HEADLIGHT SYSTEM CONTROL PARTS DIAGRAM")
-4.2-part-diagram-840a.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ENGINE COMPARTMENT PARTS (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-840b.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ENGINE COMPARTMENT PARTS (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-841.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: DASHBOARD PARTS PARTS DIAGRAM")
-4.2-part-diagram-842.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: DIFFUSION PARTS DIAGRAM")
-4.2-part-diagram-849.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ELECTRONIC CONTROL PARTS DIAGRAM")
-4.2-part-diagram-850.webp "MASERATI QTP. (2006) 4.2 DASHBOARD SERVICES PARTS DIAGRAM")
-4.2-part-diagram-851.webp "MASERATI QTP. (2006) 4.2 TUNNEL SERVICES PARTS DIAGRAM")
-4.2-part-diagram-852.webp "MASERATI QTP. (2006) 4.2 DOORS SERVICES PARTS DIAGRAM")
-4.2-part-diagram-853a.webp "MASERATI QTP. (2006) 4.2 ALARM SYSTEM AND IMMOBILIZER (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-853b.webp "MASERATI QTP. (2006) 4.2 ALARM SYSTEM AND IMMOBILIZER (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-860a.webp "MASERATI QTP. (2006) 4.2 MAIN CABLES (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-860b.webp "MASERATI QTP. (2006) 4.2 MAIN CABLES (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-861.webp "MASERATI QTP. (2006) 4.2 RELAYS, FUSES AND CASES PARTS DIAGRAM")
-4.2-part-diagram-870.webp "MASERATI QTP. (2006) 4.2 SOUND PROOF SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-871a.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 1-3) PARTS DIAGRAM")
-4.2-part-diagram-871b.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 2-3) PARTS DIAGRAM")
-4.2-part-diagram-871c.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 3-3) PARTS DIAGRAM")
-4.2-part-diagram-872.webp "MASERATI QTP. (2006) 4.2 SYSTEM FOR RECEPTION AND CONNECTION PARTS DIAGRAM")
-4.2-part-diagram-900.webp "MASERATI QTP. (2006) 4.2 FRONT OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-901.webp "MASERATI QTP. (2006) 4.2 CENTRAL OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-902.webp "MASERATI QTP. (2006) 4.2 REAR OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-903.webp "MASERATI QTP. (2006) 4.2 FRONT STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-904.webp "MASERATI QTP. (2006) 4.2 CENTRAL STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-905.webp "MASERATI QTP. (2006) 4.2 REAR STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-910.webp "MASERATI QTP. (2006) 4.2 FRONT BUMPER PARTS DIAGRAM")
-4.2-part-diagram-911.webp "MASERATI QTP. (2006) 4.2 REAR BUMPER PARTS DIAGRAM")
-4.2-part-diagram-912.webp "MASERATI QTP. (2006) 4.2 PARKING SENSORS -OPTIONAL- PARTS DIAGRAM")
-4.2-part-diagram-913.webp "MASERATI QTP. (2006) 4.2 WHEELHOUSE AND DOORS PARTS DIAGRAM")
-4.2-part-diagram-914.webp "MASERATI QTP. (2006) 4.2 FLAT FLOOR AND UNDERBODY SHIELDS PARTS DIAGRAM")
-4.2-part-diagram-915.webp "MASERATI QTP. (2006) 4.2 SHIELDS, MOULDINGS AND COVERS PARTS DIAGRAM")
-4.2-part-diagram-916.webp "MASERATI QTP. (2006) 4.2 MARKS AND SYMBOLS PARTS DIAGRAM")
-4.2-part-diagram-917.webp "MASERATI QTP. (2006) 4.2 ADHESIVES AND PLATES PARTS DIAGRAM")
-4.2-part-diagram-920.webp "MASERATI QTP. (2006) 4.2 FRONT HOOD PARTS DIAGRAM")
-4.2-part-diagram-921.webp "MASERATI QTP. (2006) 4.2 REAR HOOD PARTS DIAGRAM")
-4.2-part-diagram-922.webp "MASERATI QTP. (2006) 4.2 FUEL DOOR AND CONTROLS PARTS DIAGRAM")
-4.2-part-diagram-923.webp "MASERATI QTP. (2006) 4.2 FRONT HOOD OPENING DEVICE PARTS DIAGRAM")
-4.2-part-diagram-924.webp "MASERATI QTP. (2006) 4.2 REAR HOOD OPENING DEVICE PARTS DIAGRAM")
