maserati qtp. (2006) 4.2 f1 rh cylinder head parts diagram

005 - RH cylinder head

Maserati QTP. (2006) 4.2 F1 Rh Cylinder Head Parts Diagram

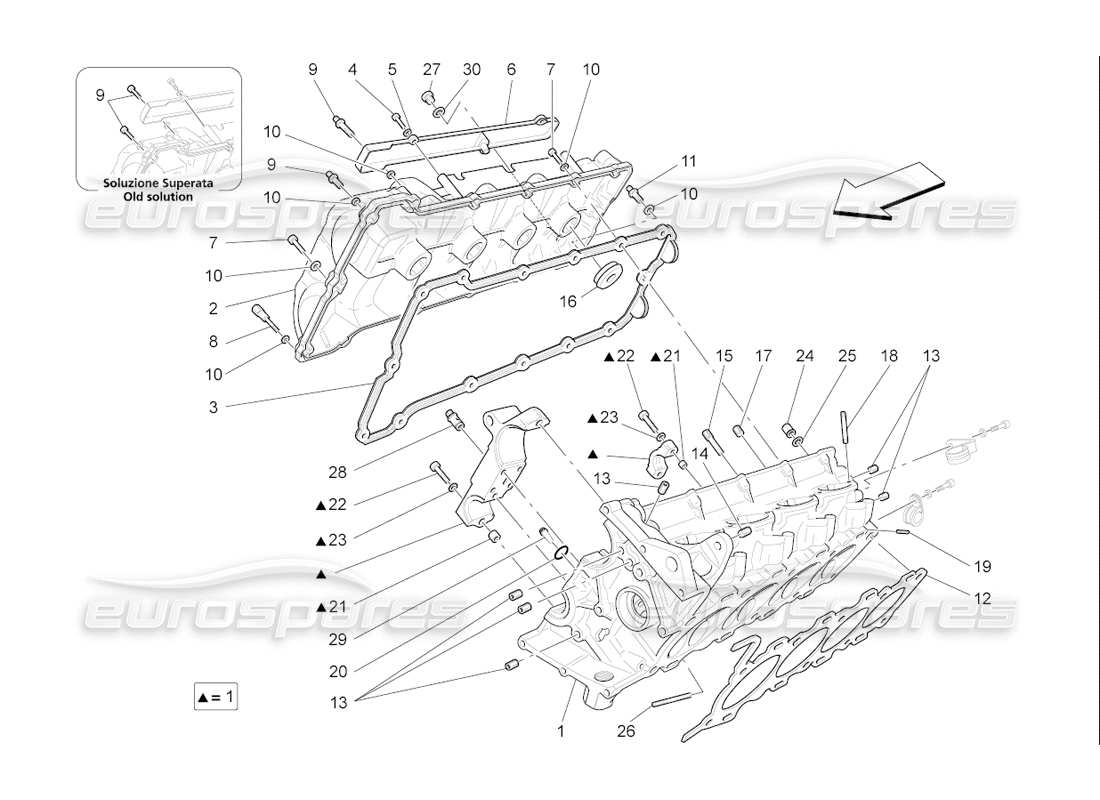

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 01
                                                            MPN: 218037
                                                            COMPLETE RH HEAD
                                                            from £1,531.90
                                                            from £1,531.90
                                                            This part replaces part number 217327
                                                            # 02
                                                            MPN: 216285
                                                            RH CYLINDERS HEAD COVER
                                                            from £178.41
                                                            from £178.41
                                                            # 03
                                                            MPN: 198927
                                                            RH HEAD COVER GASKET
                                                            Supplied also in the cover gasket revision kit (cod. 980020000) and 980020007)
                                                            from £31.50
                                                            from £31.50
                                                            # 04
                                                            MPN: 14304424
                                                            SCREW
                                                            from £0.52
                                                            from £0.52
                                                            # 05
                                                            MPN: 14497878
                                                            WASHER
                                                            from £0.52
                                                            from £0.52
                                                            # 06
                                                            MPN: 185276
                                                            RH HARNESS SMALL COVER
                                                            from £19.27
                                                            from £19.27
                                                            # 07
                                                            MPN: 156830
                                                            SCREW M 6X40
                                                            from £0.57
                                                            from £0.57
                                                            # 07
                                                            MPN: 157218
                                                            SCREW M 6X25
                                                            from £0.51
                                                            from £0.51
                                                            # 08
                                                            MPN: 200414
                                                            STUD M 6X25,5
                                                            from £3.78
                                                            from £3.78
                                                            # 09
                                                            MPN: 156828
                                                            SCREW M 6X50 - OLD SOLUTION
                                                            from £2.13
                                                            from £2.13
                                                            # 09
                                                            MPN: 187710
                                                            STUD M 6X40
                                                            from £6.72
                                                            from £6.72
                                                            # 09
                                                            MPN: 187711
                                                            STUD M 6X25
                                                            from £52.12
                                                            from £52.12
                                                            # 09
                                                            MPN: 209487
                                                            SCREW M 6X32 - OLD SOLUTION
                                                            from £3.16
                                                            from £3.16
                                                            # 10
                                                            MPN: 11197774
                                                            WASHER
                                                            from £0.52
                                                            from £0.52
                                                            # 11
                                                            MPN: 204102
                                                            STUD M 6X25
                                                            from £8.39
                                                            from £8.39
                                                            # 13
                                                            MPN: 14326001
                                                            THREADED PLUG
                                                            from £0.50
                                                            from £0.50
                                                            # 14
                                                            MPN: 140135
                                                            THREADED INSERT
                                                            from £1.74
                                                            from £1.74
                                                            # 15
                                                            MPN: 183447
                                                            THREADED PLUG
                                                            from £4.63
                                                            from £4.63
                                                            # 16
                                                            MPN: 187706
                                                            GASKET
                                                            from £3.24
                                                            from £3.24
                                                            # 16
                                                            MPN: 223982
                                                            GASKET
                                                            from £1.40
                                                            from £1.40
                                                            # 17
                                                            MPN: 164400
                                                            THREADED PLUG
                                                            from £2.16
                                                            from £2.16
                                                            # 18
                                                            MPN: 13541224
                                                            STUD
                                                            from £34.93
                                                            from £34.93
                                                            # 19
                                                            MPN: 199760
                                                            THREADED PLUG
                                                            from £0.53
                                                            from £0.53
                                                            # 20
                                                            MPN: 134233
                                                            GASKET
                                                            from £0.53
                                                            from £0.53
                                                            # 21
                                                            MPN: 102725
                                                            CENTERING DOWEL
                                                            from £0.60
                                                            from £0.60
                                                            # 22
                                                            MPN: 14305621
                                                            SCREW M 6X35
                                                            from £0.71
                                                            from £0.71
                                                            # 22
                                                            MPN: 14305821
                                                            SCREW M 6X40
                                                            from £0.53
                                                            from £0.53
                                                            # 23
                                                            MPN: 11197774
                                                            WASHER
                                                            from £0.51
                                                            from £0.51
                                                            # 24
                                                            MPN: 183524
                                                            NUT
                                                            from £1.20
                                                            from £1.20
                                                            # 25
                                                            MPN: 151117
                                                            WASHER
                                                            from £0.31
                                                            from £0.31
                                                            This part replaces part number 300266 - and 1 more. Click to view details
                                                            # 26
                                                            MPN: 13543424
                                                            STUD
                                                            from £1.04
                                                            from £1.04
                                                            # 27
                                                            MPN: 187963
                                                            PLUG
                                                            from £3.63
                                                            from £3.63
                                                            # 28
                                                            MPN: 184681
                                                            OIL PRESSURE CHECK VALVE
                                                            from £237.18
                                                            from £237.18
                                                            # 29
                                                            MPN: 180266
                                                            OIL FILTER
                                                            Supersession
                                                            Supersession
                                                            # 30
                                                            MPN: 10263360
                                                            GASKET
                                                            from £0.54
                                                            from £0.54
                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
