maserati qtp. (2006) 4.2 f1 cooling system: nourice and lines parts diagram

024 - cooling system: nourice and lines

Maserati QTP. (2006) 4.2 F1 Cooling System: Nourice And Lines Parts Diagram

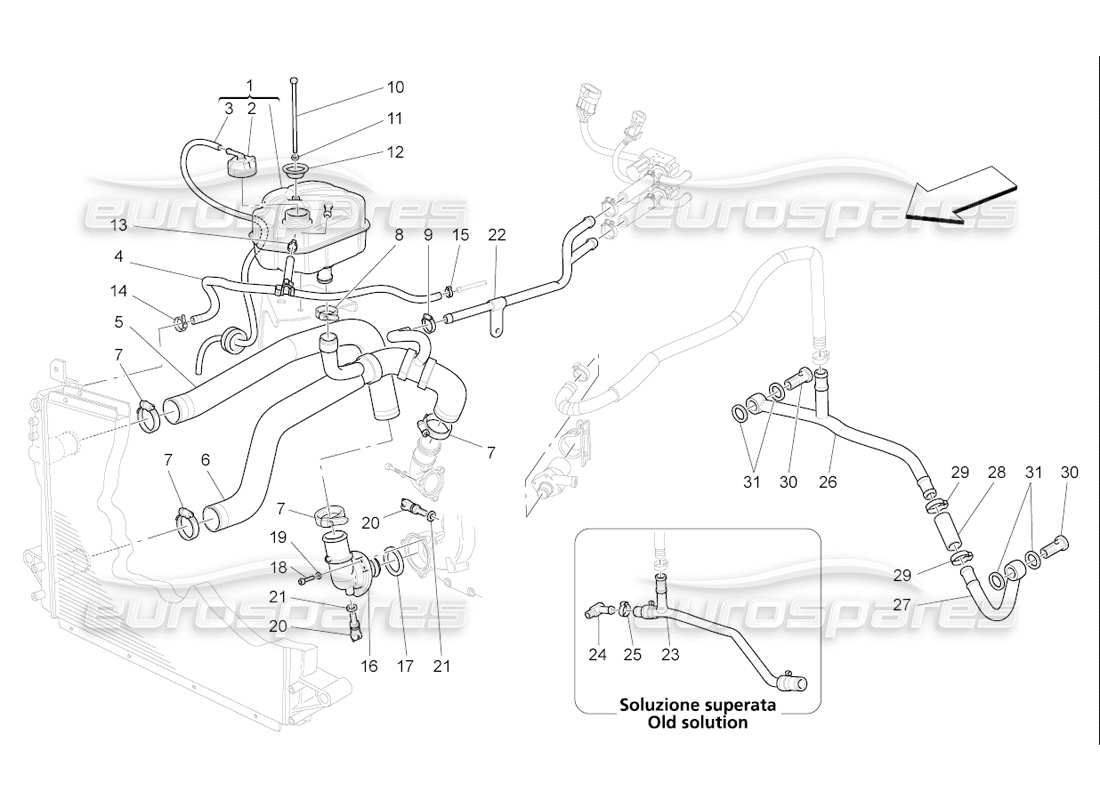

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 01
                                                              MPN: 384000102
                                                              COMPLETE EXPANSION TANK
                                                              WITH CAP
                                                              from £91.53
                                                              from £91.53
                                                              This part replaces part number 60597447
                                                              # 02
                                                              MPN: 980145477
                                                              TANK PLUG
                                                              from £12.21
                                                              from £12.21
                                                              This part replaces part number 46556738
                                                              # 03
                                                              MPN: 384001316
                                                              HOSE
                                                              from £7.54
                                                              from £7.54
                                                              # 04
                                                              MPN: 212501
                                                              VENT PIPE
                                                              from £67.71
                                                              from £67.71
                                                              This part replaces part number 200895
                                                              # 05
                                                              MPN: 195104
                                                              DELIVERY PIPE FROM ENGINE TO RADIATOR
                                                              from £24.81
                                                              from £24.81
                                                              # 06
                                                              MPN: 245321
                                                              RETURN PIPE FROM RADIATOR TO ENGINE
                                                              from £116.27
                                                              from £116.27
                                                              This part replaces part number 195105
                                                              # 06
                                                              MPN: 245321
                                                              RETURN PIPE FROM RADIATOR TO ENGINE
                                                              from £116.27
                                                              from £116.27
                                                              This part replaces part number 195105
                                                              # 07
                                                              MPN: 13000790
                                                              SCREW COLLAR
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 312420106
                                                              # 08
                                                              MPN: 13000490
                                                              SCREW COLLAR
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 13127870 - and 1 more. Click to view details
                                                              # 09
                                                              MPN: 13000190
                                                              SCREW COLLAR
                                                              from £0.54
                                                              from £0.54
                                                              # 11
                                                              MPN: 12601274
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 12601270
                                                              # 12
                                                              MPN: 82404496
                                                              CUP
                                                              from £1.89
                                                              from £1.89
                                                              # 13
                                                              MPN: 13125470
                                                              COLLAR
                                                              from £0.53
                                                              from £0.53
                                                              # 14
                                                              MPN: 13000190
                                                              SCREW COLLAR
                                                              from £0.54
                                                              from £0.54
                                                              # 15
                                                              MPN: 13125370
                                                              COLLAR
                                                              from £1.08
                                                              from £1.08
                                                              # 16
                                                              MPN: 230889
                                                              THERMOSTAT WITH COVER
                                                              from £79.67
                                                              from £79.67
                                                              This part replaces part number 224624
                                                              # 16
                                                              MPN: 230889
                                                              THERMOSTAT WITH COVER
                                                              from £79.67
                                                              from £79.67
                                                              This part replaces part number 224624
                                                              # 17
                                                              MPN: 137873
                                                              GASKET
                                                              from £2.95
                                                              from £2.95
                                                              # 18
                                                              MPN: 14305324
                                                              SCREW
                                                              from £0.52
                                                              from £0.52
                                                              This part replaces part number 14305321
                                                              # 19
                                                              MPN: 11197774
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              # 21
                                                              MPN: 10298460
                                                              GASKET
                                                              from £0.47
                                                              from £0.47
                                                              # 22
                                                              MPN: 66949800
                                                              RIGID PIPE
                                                              from £25.69
                                                              from £25.69
                                                              # 23
                                                              MPN: 201712
                                                              WATER PIPE FROM CYLINDER HEAD OLD SOLUTION
                                                              from £449.75
                                                              from £449.75
                                                              # 24
                                                              MPN: 201192
                                                              RH UNION OLD SOLUTION
                                                              from £182.85
                                                              from £182.85
                                                              # 24
                                                              MPN: 201193
                                                              LH UNION OLD SOLUTION
                                                              from £182.85
                                                              from £182.85
                                                              # 25
                                                              MPN: 178053
                                                              CLAMP OLD SOLUTION
                                                              from £0.97
                                                              from £0.97
                                                              # 26
                                                              MPN: 203783
                                                              WATER PIPE FROM RH CYLINDER HEAD
                                                              from £98.99
                                                              from £98.99
                                                              # 26
                                                              MPN: 210083
                                                              WATER PIPE FROM RH CYLINDER HEAD
                                                              from £180.95
                                                              from £180.95
                                                              # 27
                                                              MPN: 203779
                                                              WATER PIPE FROM LH CYLINDER HEAD
                                                              from £185.10
                                                              from £185.10
                                                              # 27
                                                              MPN: 210084
                                                              WATER PIPE FROM LH CYLINDER HEAD
                                                              from £55.30
                                                              from £55.30
                                                              # 29
                                                              MPN: 178053
                                                              CLAMP
                                                              from £0.97
                                                              from £0.97
                                                              # 30
                                                              MPN: 203787
                                                              UNION
                                                              from £5.75
                                                              from £5.75
                                                              # 31
                                                              MPN: 10259960
                                                              GASKET
                                                              from £0.47
                                                              from £0.47
