038 - Lay Shaft Gears

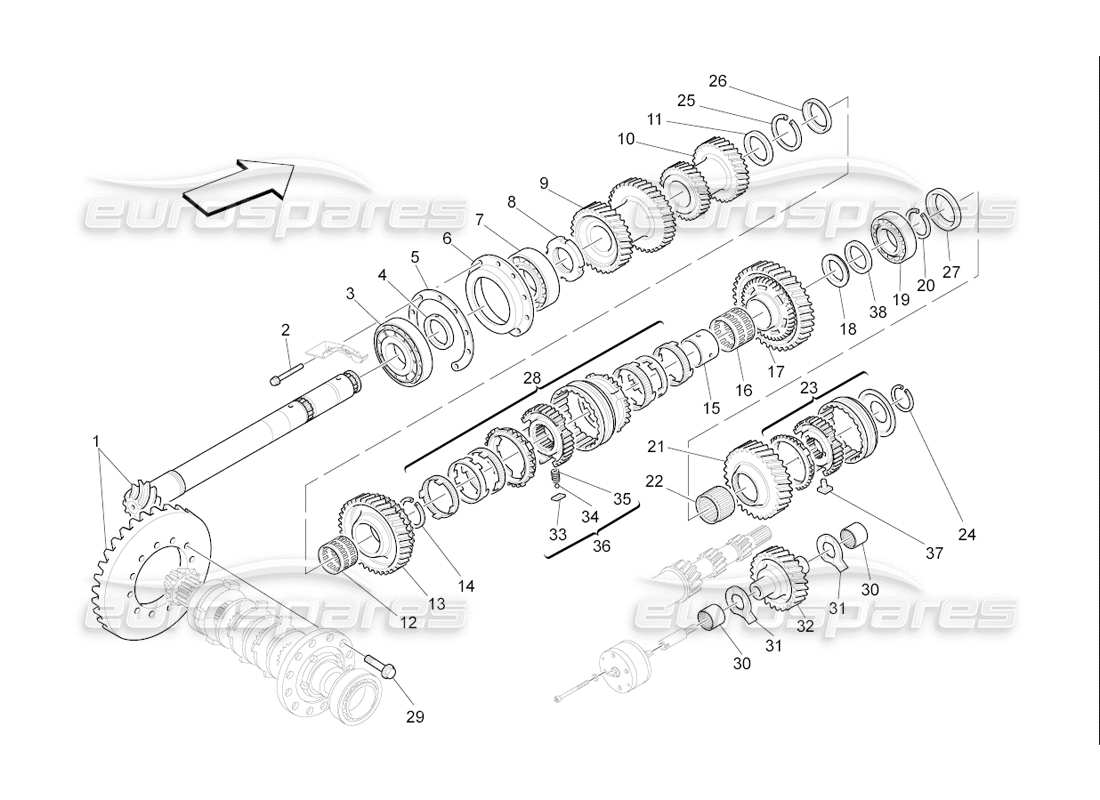

Maserati QTP. (2006) 4.2 F1 Lay Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 01
                                                                              MPN: 219689
                                                                              COMPLETE BEVEL SET
                                                                              from £1,270.53
                                                                              from £1,270.53
                                                                              # 02
                                                                              MPN: 16287731
                                                                              SCREW
                                                                              from £1.38
                                                                              from £1.38
                                                                              # 03
                                                                              MPN: 185022
                                                                              ROLLER BEARING
                                                                              from £85.26
                                                                              from £85.26
                                                                              # 04
                                                                              MPN: 219717
                                                                              REGISTER RING THICKNESS MM. 8,60
                                                                              from £52.79
                                                                              from £52.79
                                                                              # 05
                                                                              MPN: 185042
                                                                              REGISTER RING THICKNESS MM. 2,8
                                                                              from £6.91
                                                                              from £6.91
                                                                              # 05
                                                                              MPN: 185043
                                                                              REGISTER RING THICKNESS MM. 2,5 - POSSIBLE FITTING
                                                                              from £9.56
                                                                              from £9.56
                                                                              # 05
                                                                              MPN: 185044
                                                                              REGISTER RING THICKNESS MM. 2,2 - POSSIBLE FITTING
                                                                              from £14.77
                                                                              from £14.77
                                                                              # 06
                                                                              MPN: 219718
                                                                              BEARING SUPPORT
                                                                              from £84.90
                                                                              from £84.90
                                                                              # 07
                                                                              MPN: 219720
                                                                              ROLLER BEARING
                                                                              from £60.66
                                                                              from £60.66
                                                                              # 08
                                                                              MPN: 196667
                                                                              RING NUT
                                                                              from £39.84
                                                                              from £39.84
                                                                              # 09
                                                                              MPN: 214802
                                                                              3RD AND 4TH DRIVEN GEAR
                                                                              from £330.49
                                                                              from £330.49
                                                                              # 10
                                                                              MPN: 214801
                                                                              5TH AND 6TH DRIVEN GEAR
                                                                              from £311.81
                                                                              from £311.81
                                                                              # 11
                                                                              MPN: 188497
                                                                              SPACER THICKNESS MM. 6,25
                                                                              from £27.75
                                                                              from £27.75
                                                                              # 11
                                                                              MPN: 212457
                                                                              SPACER THICKNESS MM. 6,00 - AS AN ALTERNATIVE
                                                                              from £65.84
                                                                              from £65.84
                                                                              # 12
                                                                              MPN: 184014
                                                                              ROLLER CAGE
                                                                              from £10.20
                                                                              from £10.20
                                                                              # 13
                                                                              MPN: 220016
                                                                              COMPLETE PINION FOR 2ND GEAR
                                                                              from £191.02
                                                                              from £191.02
                                                                              # 14
                                                                              MPN: 183976
                                                                              FLEXIBLE RING THICKNESS MM. 2,10
                                                                              from £6.56
                                                                              from £6.56
                                                                              # 14
                                                                              MPN: 185036
                                                                              FLEXIBLE RING THICKNESS MM. 1,85 - POSSIBLE FITTING
                                                                              from £24.00
                                                                              from £24.00
                                                                              # 14
                                                                              MPN: 185037
                                                                              FLEXIBLE RING THICKNESS MM. 1,60 - POSSIBLE FITTING
                                                                              from £23.35
                                                                              from £23.35
                                                                              # 15
                                                                              MPN: 183971
                                                                              BUSHING
                                                                              from £43.71
                                                                              from £43.71
                                                                              # 16
                                                                              MPN: 184016
                                                                              ROLLER CAGE
                                                                              from £15.32
                                                                              from £15.32
                                                                              # 17
                                                                              MPN: 220015
                                                                              COMPLETE PINION FOR 1ST GEAR
                                                                              from £191.02
                                                                              from £191.02
                                                                              # 18
                                                                              MPN: 183972
                                                                              RING THICKNESS MM. 5,10
                                                                              from £42.04
                                                                              from £42.04
                                                                              # 18
                                                                              MPN: 185040
                                                                              RING THICKNESS MM. 4,85 - POSSIBLE FITTING
                                                                              from £28.42
                                                                              from £28.42
                                                                              # 18
                                                                              MPN: 185041
                                                                              RING THICKNESS MM. 4,60 - POSSIBLE FITTING
                                                                              from £20.13
                                                                              from £20.13
                                                                              # 19
                                                                              MPN: 184020
                                                                              ROLLER BEARING
                                                                              from £77.23
                                                                              from £77.23
                                                                              # 20
                                                                              MPN: 184042
                                                                              FLEXIBLE RING
                                                                              from £6.76
                                                                              from £6.76
                                                                              # 21
                                                                              MPN: 198602
                                                                              COMPLETE PINION FOR REVERSE GEAR
                                                                              from £621.97
                                                                              from £621.97
                                                                              # 22
                                                                              MPN: 184018
                                                                              ROLLER CAGE
                                                                              from £15.29
                                                                              from £15.29
                                                                              # 23
                                                                              MPN: 326260
                                                                              REVERSE GEAR COMPLETE SYNCHRONIZER
                                                                              from £1,184.72
                                                                              from £1,184.72
                                                                              This part replaces part number 193439
                                                                              # 24
                                                                              MPN: 184041
                                                                              FLEXIBLE RING
                                                                              from £3.09
                                                                              from £3.09
                                                                              # 25
                                                                              MPN: 183976
                                                                              FLEXIBLE RING THICKNESS MM. 2,10
                                                                              from £6.56
                                                                              from £6.56
                                                                              # 25
                                                                              MPN: 185036
                                                                              FLEXIBLE RING THICKNESS MM. 1,85 - POSSIBLE FITTING
                                                                              from £24.00
                                                                              from £24.00
                                                                              # 25
                                                                              MPN: 185037
                                                                              FLEXIBLE RING THICKNESS MM. 1,60 - POSSIBLE FITTING
                                                                              from £23.35
                                                                              from £23.35
                                                                              # 26
                                                                              MPN: 203800
                                                                              RING THICKNESS MM. 7,6
                                                                              from £14.08
                                                                              from £14.08
                                                                              # 26
                                                                              MPN: 203801
                                                                              RING THICKNESS MM. 7,3 - AS AN ALTERNATIVE
                                                                              from £43.14
                                                                              from £43.14
                                                                              # 27
                                                                              MPN: 200979
                                                                              SPACER
                                                                              from £33.84
                                                                              from £33.84
                                                                              # 28
                                                                              MPN: 185164
                                                                              1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                                              from £718.68
                                                                              from £718.68
                                                                              # 29
                                                                              MPN: 183909
                                                                              SCREW
                                                                              from £3.28
                                                                              from £3.28
                                                                              # 30
                                                                              MPN: 184017
                                                                              ROLLER CASING
                                                                              from £4.88
                                                                              from £4.88
                                                                              # 31
                                                                              MPN: 183975
                                                                              RING
                                                                              from £13.71
                                                                              from £13.71
                                                                              # 32
                                                                              MPN: 198612
                                                                              IDLE GEAR FOR REVERSE
                                                                              from £362.49
                                                                              from £362.49
                                                                              # 33
                                                                              -
                                                                              PAD FOR SYNCHRONIZER NOT AS SPARE PART
                                                                              # 34
                                                                              -
                                                                              BALL NOT AS SPARE PART
                                                                              # 35
                                                                              -
                                                                              SPRING FOR BALL NOT AS SPARE PART
                                                                              # 36
                                                                              MPN: 188320
                                                                              PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                                              from £6.75
                                                                              from £6.75
                                                                              # 37
                                                                              MPN: 193440
                                                                              PADS/SYNCHRO REVERSE GEAR KIT
                                                                              from £2.32
                                                                              from £2.32
                                                                              This part replaces part number 193484
                                                                              # 38
                                                                              MPN: 182326
                                                                              SPACER
                                                                              from £38.64
                                                                              from £38.64
