maserati qtp. (2006) 4.2 f1 braking control systems parts diagram

054 - braking control systems

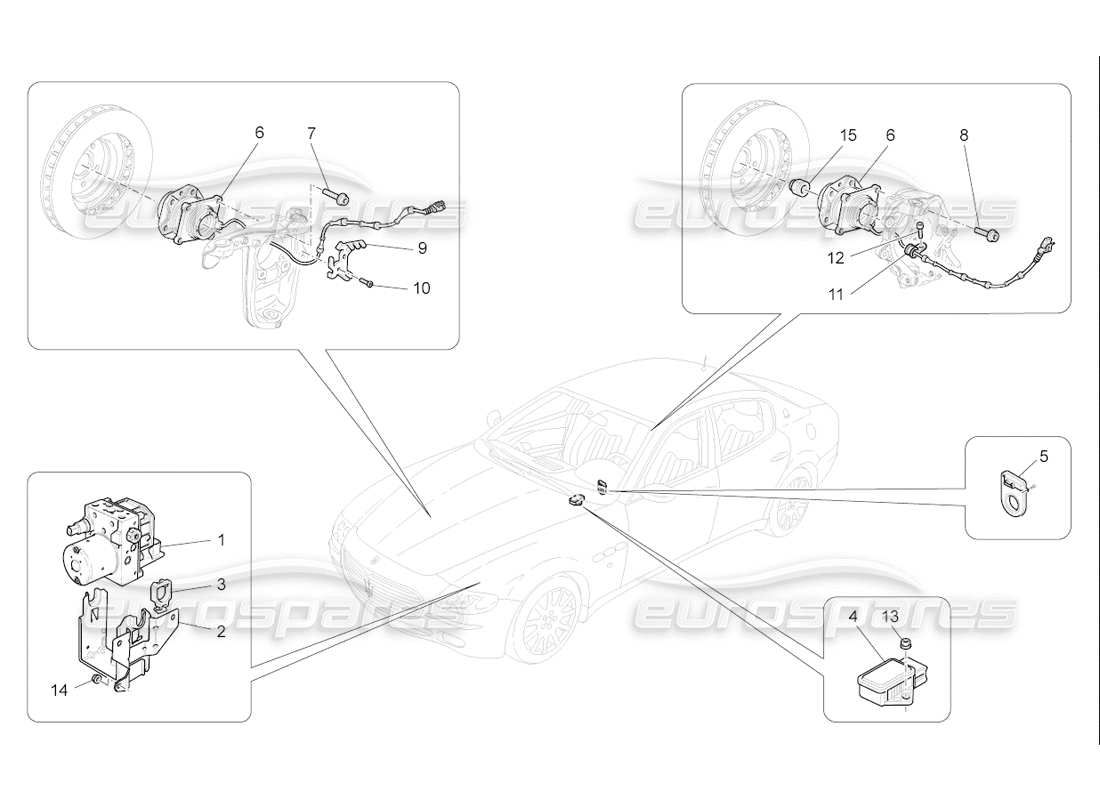

Maserati QTP. (2006) 4.2 F1 Braking Control Systems Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 01
                                MPN: 192354
                                ABS/ASR HYDRAULIC GROUP
                                from £1,778.96
                                from £1,778.96
                                # 02
                                MPN: 194860
                                ABS/ASR HYDRAULIC GROUP FIXING BRACKET
                                from £22.65
                                from £22.65
                                # 03
                                MPN: 193877
                                CLIP
                                from £0.53
                                from £0.53
                                # 04
                                MPN: 188172
                                ACCELERATOR SENSOR
                                from £355.03
                                from £355.03
                                # 05
                                MPN: 188171
                                STEERING ANGLE SENSOR INCLUDED IN THE COMPLETE UNHOOK DEVIATION (DRAW 8.50 POS. 15)
                                from £182.61
                                from £182.61
                                # 06
                                MPN: 197118
                                COMPLETE BEARING WHEEL
                                from £637.19
                                from £637.19
                                # 07
                                MPN: 203135
                                SCREW
                                from £1.99
                                from £1.99
                                This part replaces part number 191238
                                # 08
                                MPN: 190723
                                SCREW
                                from £5.26
                                from £5.26
                                This part replaces part number 14834021 - and 1 more. Click to view details
                                # 09
                                MPN: 197060
                                LH BRACKET
                                from £42.96
                                from £42.96
                                # 09
                                MPN: 197061
                                RH BRACKET
                                from £15.38
                                from £15.38
                                # 10
                                MPN: 204177
                                SCREW
                                Supersession
                                Supersession
                                # 11
                                MPN: 10440890
                                BRACKET WITH SHEATH
                                from £0.51
                                from £0.51
                                # 12
                                MPN: 204177
                                SCREW
                                Supersession
                                Supersession
                                # 13
                                MPN: 14040611
                                NUT
                                from £0.53
                                from £0.53
                                # 14
                                MPN: 14040614
                                NUT
                                from £0.54
                                from £0.54
                                # 15
                                MPN: 203780
                                NUT
                                from £14.27
                                from £14.27
                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
