maserati qtp. (2006) 4.2 f1 steering box and hydraulic steering pump parts diagram

056 - Steering Box And Hydraulic Steering Pump

Maserati QTP. (2006) 4.2 F1 Steering Box And Hydraulic Steering Pump Parts Diagram

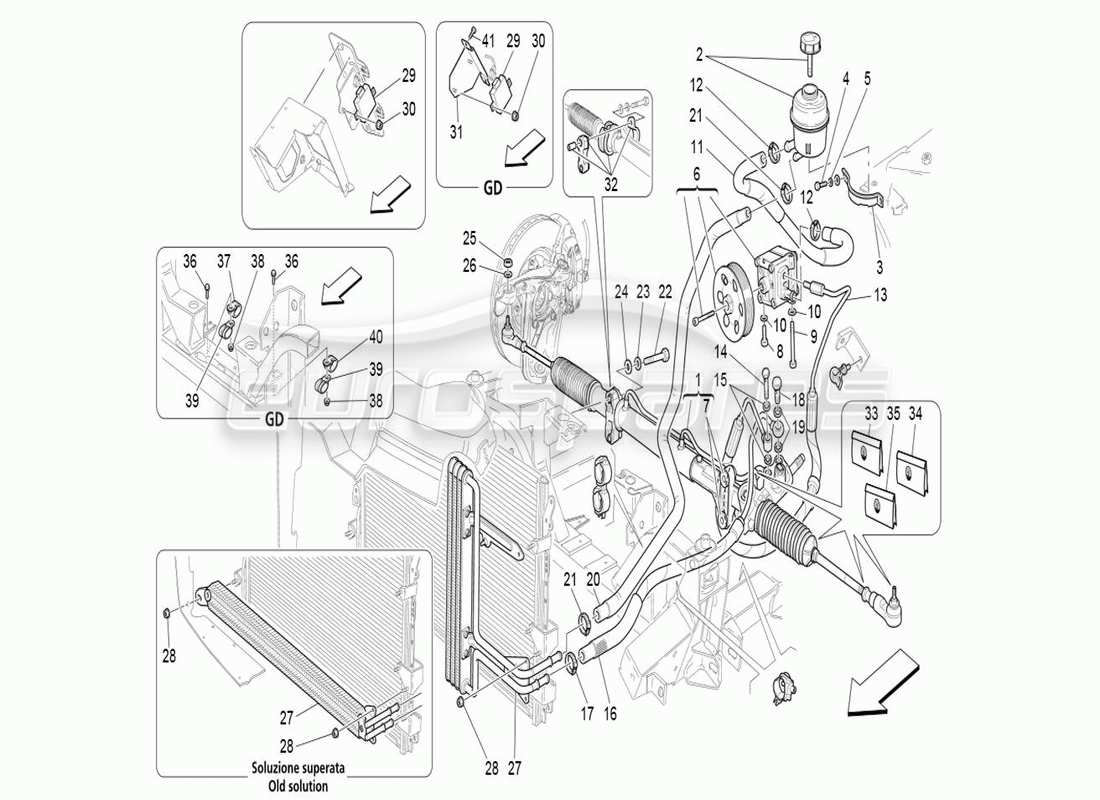

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 01
                                                                      MPN: 321590
                                                                      STEERING RACK (RHD)
                                                                      from £3,021.90
                                                                      from £3,021.90
                                                                      This part replaces part number 267185
                                                                      # 02
                                                                      MPN: 193933
                                                                      OIL TANK FOR HYDRAULIC SERVO-CONTROL PUMP
                                                                      from £16.01
                                                                      from £16.01
                                                                      # 03
                                                                      MPN: 194873
                                                                      COLLAR
                                                                      from £6.81
                                                                      from £6.81
                                                                      # 04
                                                                      MPN: 10902424
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 05
                                                                      MPN: 12644424
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 13550214
                                                                      # 06
                                                                      MPN: 255278
                                                                      HYDRAULIC SERVO-CONTROL PUMP
                                                                      from £220.48
                                                                      from £220.48
                                                                      This part replaces part number 204070
                                                                      # 06
                                                                      MPN: 980145407
                                                                      HYDRAULIC SERVO-CONTROL PUMP
                                                                      from £492.32
                                                                      from £492.32
                                                                      This part replaces part number 980145383
                                                                      # 07
                                                                      MPN: 980138228
                                                                      SILENTBLOCK
                                                                      from £13.52
                                                                      from £13.52
                                                                      # 08
                                                                      MPN: 198519
                                                                      SCREW
                                                                      from £3.62
                                                                      from £3.62
                                                                      # 09
                                                                      MPN: 180604
                                                                      SCREW
                                                                      from £2.13
                                                                      from £2.13
                                                                      # 10
                                                                      MPN: 11193874
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 11
                                                                      MPN: 192320
                                                                      PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP
                                                                      from £12.86
                                                                      from £12.86
                                                                      # 12
                                                                      MPN: 13000490
                                                                      SCREW COLLAR
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 13127870 - and 1 more. Click to view details
                                                                      # 13
                                                                      MPN: 210379
                                                                      PIPE FROM PUMP TO STEERING BOX
                                                                      from £65.10
                                                                      from £65.10
                                                                      # 14
                                                                      MPN: 205821
                                                                      UNION
                                                                      from £8.73
                                                                      from £8.73
                                                                      # 14
                                                                      MPN: 250145
                                                                      UNION
                                                                      from £8.73
                                                                      from £8.73
                                                                      # 15
                                                                      MPN: 10261360
                                                                      GASKET
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 16
                                                                      MPN: 212179
                                                                      PIPE FROM STEERING BOX TO EXCHANGER
                                                                      Valid for GD
                                                                      from £56.66
                                                                      from £56.66
                                                                      This part replaces part number 210381 which we have in stock - and 3 more. Click to view details
                                                                      # 17
                                                                      MPN: 13000390
                                                                      SCREW COLLAR
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 13121170 - and 1 more. Click to view details
                                                                      # 18
                                                                      MPN: 188930
                                                                      UNION
                                                                      from £8.42
                                                                      from £8.42
                                                                      # 18
                                                                      MPN: 250144
                                                                      UNION
                                                                      from £8.42
                                                                      from £8.42
                                                                      # 19
                                                                      MPN: 10280060
                                                                      GASKET
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 20
                                                                      MPN: 192319
                                                                      PIPE FROM EXCHANGER TO TANK
                                                                      from £28.32
                                                                      from £28.32
                                                                      # 21
                                                                      MPN: 13000390
                                                                      SCREW COLLAR
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 13121170 - and 1 more. Click to view details
                                                                      # 22
                                                                      MPN: 206926
                                                                      SCREW M 10X55
                                                                      from £5.49
                                                                      from £5.49
                                                                      # 23
                                                                      MPN: 12641024
                                                                      WASHER
                                                                      from £1.40
                                                                      from £1.40
                                                                      # 24
                                                                      MPN: 12641024
                                                                      WASHER
                                                                      from £1.40
                                                                      from £1.40
                                                                      # 25
                                                                      MPN: 102742
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 26
                                                                      MPN: 12626224
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 27
                                                                      MPN: 231014
                                                                      COMPLETE POWER STEERING EXCHANGER
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 205785
                                                                      # 27
                                                                      MPN: 233098
                                                                      COMPLETE POWER STEERING EXCHANGER
                                                                      from £184.68
                                                                      from £184.68
                                                                      This part replaces part number 231014
                                                                      # 27
                                                                      MPN: 233098
                                                                      COMPLETE POWER STEERING EXCHANGER
                                                                      from £184.68
                                                                      from £184.68
                                                                      This part replaces part number 231014
                                                                      # 28
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575421
                                                                      # 29
                                                                      MPN: 211697
                                                                      HYDRAULIC STEERING CONTROL ELECTRIC UNIT
                                                                      from £114.98
                                                                      from £114.98
                                                                      # 30
                                                                      MPN: 14059211
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 675000181
                                                                      # 31
                                                                      MPN: 67720200
                                                                      CONTROL UNIT SUPPORT BRACKET
                                                                      from £5.53
                                                                      from £5.53
                                                                      # 32
                                                                      MPN: 980138275
                                                                      STEERING BOX FIXING KIT
                                                                      from £117.39
                                                                      from £117.39
                                                                      # 33
                                                                      MPN: 980139058
                                                                      PIPES REPLACEMENT KIT FOR STEERING BOX
                                                                      from £235.91
                                                                      from £235.91
                                                                      # 34
                                                                      MPN: 980001706
                                                                      TRACK ROD END
                                                                      from £88.98
                                                                      from £88.98
                                                                      This part replaces part number 980000968
                                                                      # 35
                                                                      MPN: 980139056
                                                                      STEERING RACK BOOTS KIT
                                                                      from £68.71
                                                                      from £68.71
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
