maserati qtp. (2006) 4.2 f1 complete pedal board unit parts diagram

058 - COMPLETE PEDAL BOARD UNIT

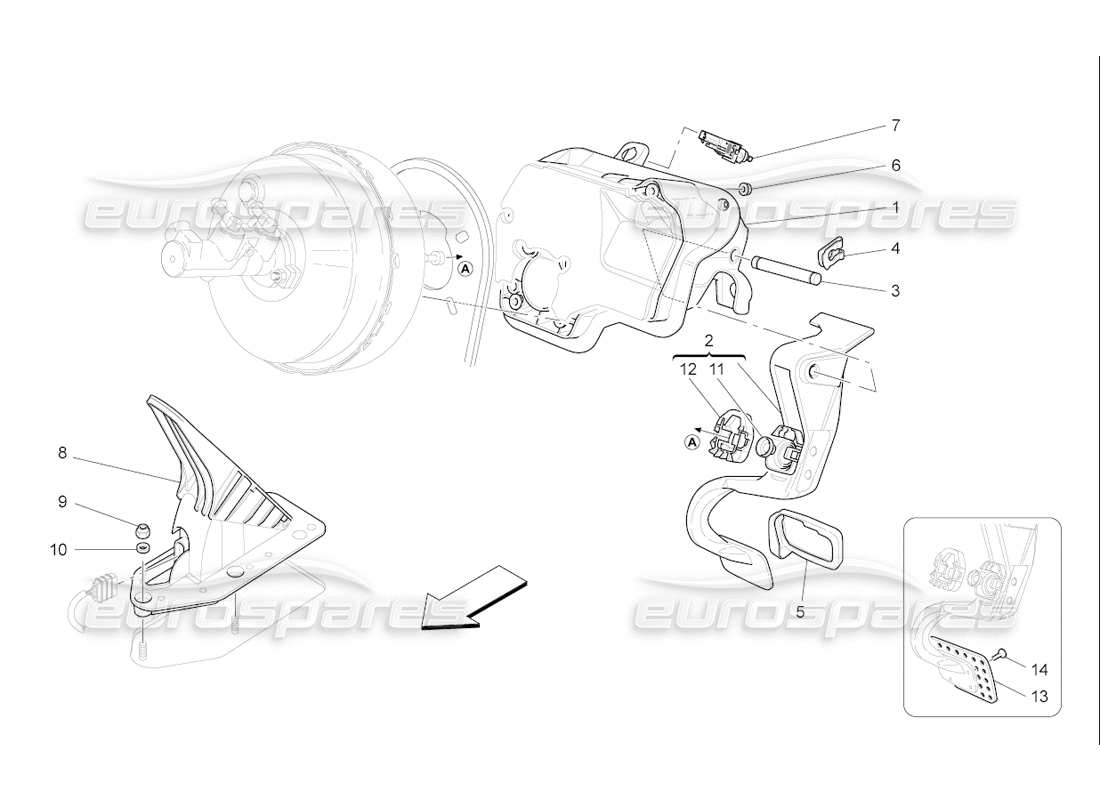

Maserati QTP. (2006) 4.2 F1 Complete Pedal Board Unit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 02
                              -
                              COMPLETE BRAKE PEDAL
                              # 03
                              MPN: 189870
                              PIN
                              from £46.39
                              from £46.39
                              # 04
                              MPN: 11064471
                              RETAINER
                              from £11.13
                              from £11.13
                              # 05
                              MPN: 246126
                              BRAKE PEDAL COVER
                              from £16.86
                              from £16.86
                              This part replaces part number 197659
                              # 06
                              MPN: 12578211
                              NUT
                              from £0.53
                              from £0.53
                              # 07
                              MPN: 201957
                              PUSH-BUTTON SWITCH
                              from £13.11
                              from £13.11
                              This part replaces part number 187869
                              # 08
                              -
                              COMPLETE ACCELERATOR PEDAL
                              # 09
                              MPN: 102741
                              NUT
                              from £0.52
                              from £0.52
                              This part replaces part number 12575421
                              # 10
                              MPN: 12601274
                              WASHER
                              from £0.53
                              from £0.53
                              This part replaces part number 12601270
                              # 11
                              MPN: 189864
                              CUP
                              from £21.81
                              from £21.81
                              # 12
                              MPN: 189863
                              SMALL BLOCK
                              from £17.33
                              from £17.33
                              # 13
                              MPN: 222695
                              BRAKE PEDAL PLATE
                              from £104.57
                              from £104.57
                              # 14
                              MPN: 14441324
                              SCREW
                              from £0.51
                              from £0.51
