082 - external vehicle devices

Maserati QTP. (2006) 4.2 F1 External Vehicle Devices Parts Diagram

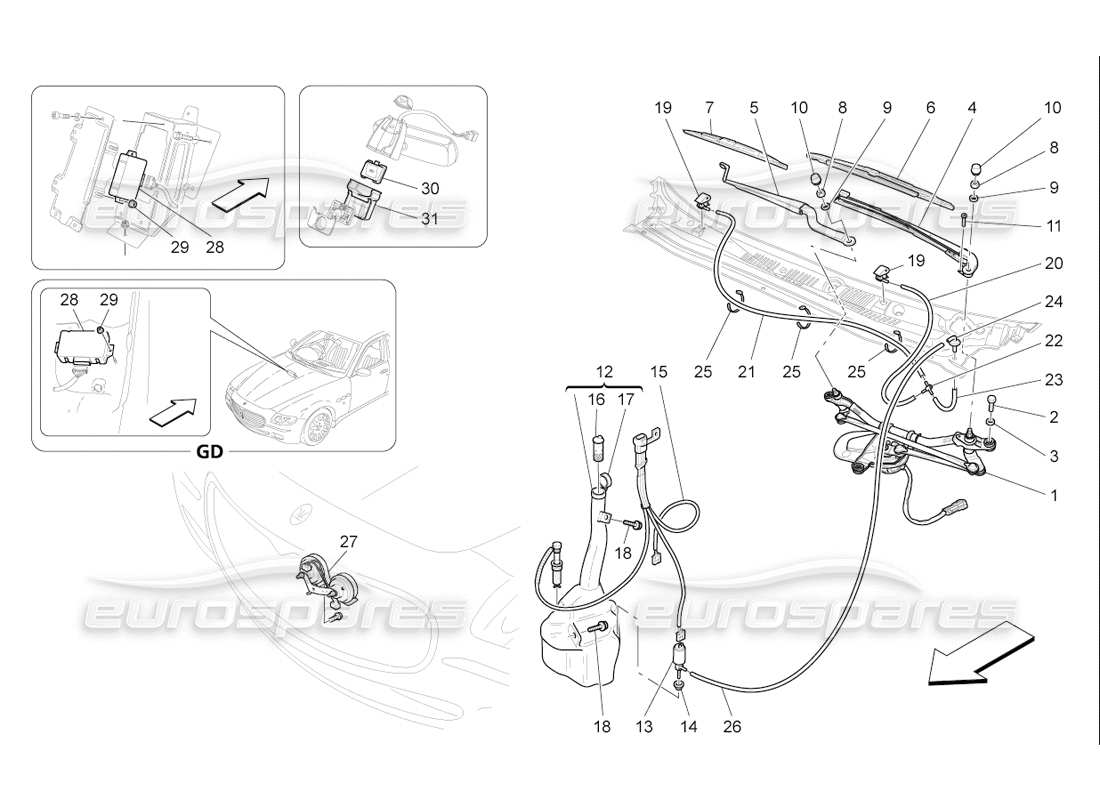

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 01
                                                                MPN: 68468100
                                                                RHD WINDSHIELD MOTOR
                                                                from £590.24
                                                                from £590.24
                                                                This part replaces part number 67869400
                                                                # 02
                                                                MPN: 16050626
                                                                SCREW
                                                                from £1.08
                                                                from £1.08
                                                                # 03
                                                                MPN: 12648901
                                                                WASHER
                                                                from £0.50
                                                                from £0.50
                                                                # 04
                                                                MPN: 67843100
                                                                PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                from £43.36
                                                                from £43.36
                                                                # 04
                                                                MPN: 68468300
                                                                PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                from £41.31
                                                                from £41.31
                                                                This part replaces part number 67843100 which we have in stock - and 1 more. Click to view details
                                                                # 05
                                                                MPN: 67843000
                                                                PILOT SIDE WINDSHIELD WIPER ARM
                                                                from £155.93
                                                                from £155.93
                                                                # 06
                                                                MPN: 980139980
                                                                LHD WIPER BLADES SET
                                                                from £68.06
                                                                from £68.06
                                                                # 06
                                                                MPN: 980139981
                                                                RHD WIPER BLADES SET
                                                                from £68.06
                                                                from £68.06
                                                                # 07
                                                                MPN: 980139980
                                                                LHD WIPER BLADES SET
                                                                from £68.06
                                                                from £68.06
                                                                # 07
                                                                MPN: 980139981
                                                                RHD WIPER BLADES SET
                                                                from £68.06
                                                                from £68.06
                                                                # 08
                                                                MPN: 10791014
                                                                NUT
                                                                from £0.71
                                                                from £0.71
                                                                # 09
                                                                MPN: 12601474
                                                                WASHER
                                                                from £0.54
                                                                from £0.54
                                                                # 10
                                                                MPN: 15811787
                                                                PROTECTION BOOT
                                                                from £0.60
                                                                from £0.60
                                                                # 11
                                                                MPN: 67929800
                                                                SCREW
                                                                from £1.44
                                                                from £1.44
                                                                # 12
                                                                MPN: 980139432
                                                                WINDSCREEN WASHER TANK
                                                                from £101.60
                                                                from £101.60
                                                                This part replaces part number 67075900 - and 1 more. Click to view details
                                                                # 13
                                                                MPN: 65358700
                                                                WIPER PUMP
                                                                from £20.25
                                                                from £20.25
                                                                # 14
                                                                MPN: 65775100
                                                                GASKET
                                                                from £3.19
                                                                from £3.19
                                                                # 15
                                                                MPN: 188214
                                                                ELECTRIC WIRING WITH SENSOR
                                                                from £53.72
                                                                from £53.72
                                                                # 16
                                                                MPN: 66645100
                                                                FILTER
                                                                from £5.50
                                                                from £5.50
                                                                # 17
                                                                MPN: 67729200
                                                                PLUG
                                                                from £7.73
                                                                from £7.73
                                                                # 18
                                                                MPN: 11617324
                                                                SCREW
                                                                from £1.85
                                                                from £1.85
                                                                # 19
                                                                MPN: 67876200
                                                                JET FOR WINDOW WASHING INCLUDED IN THE COMPLETE UNDER WINDSHIELD PLATE (DRAW 9.15 POS. 8)
                                                                from £27.49
                                                                from £27.49
                                                                # 20
                                                                MPN: 67984400
                                                                PIPE INCLUDED IN THE COMPLETE UNDER WINDSHIELD PLATE (DRAW 9.15 POS. 8)
                                                                from £7.83
                                                                from £7.83
                                                                # 21
                                                                MPN: 67984300
                                                                PIPE INCLUDED IN THE COMPLETE UNDER WINDSHIELD PLATE (DRAW 9.15 POS. 8)
                                                                from £12.68
                                                                from £12.68
                                                                # 22
                                                                MPN: 65581900
                                                                NONRETURN VALVE INCLUDED IN THE COMPLETE UNDER WINDSHIELD PLATE (DRAW 9.15 POS. 8)
                                                                from £7.05
                                                                from £7.05
                                                                # 23
                                                                MPN: 67984600
                                                                PIPE INCLUDED IN THE COMPLETE UNDER WINDSHIELD PLATE (DRAW 9.15 POS. 8)
                                                                from £7.54
                                                                from £7.54
                                                                # 24
                                                                MPN: 67984700
                                                                UNION INCLUDED IN THE COMPLETE UNDER WINDSHIELD PLATE (DRAW 9.15 POS. 8)
                                                                from £6.69
                                                                from £6.69
                                                                # 25
                                                                MPN: 67579900
                                                                CLIP INCLUDED IN THE COMPLETE UNDER WINDSHIELD PLATE (DRAW 9.15 POS. 8)
                                                                from £0.47
                                                                from £0.47
                                                                # 26
                                                                MPN: 67729400
                                                                PIPE
                                                                from £25.51
                                                                from £25.51
                                                                # 27
                                                                MPN: 206167
                                                                ELECTRO-MAGNETIC HORN WITH BRACKET
                                                                from £41.11
                                                                from £41.11
                                                                This part replaces part number 201191
                                                                # 28
                                                                MPN: 204958
                                                                WINDSHIELD WIPER CONTROL UNIT
                                                                from £97.94
                                                                from £97.94
                                                                This part replaces part number 191458 which we have in stock - and 1 more. Click to view details
                                                                # 28
                                                                MPN: 253903
                                                                WINDSHIELD WIPER CONTROL UNIT
                                                                from £151.17
                                                                from £151.17
                                                                This part replaces part number 212916
                                                                # 28
                                                                MPN: 253903
                                                                WINDSHIELD WIPER CONTROL UNIT
                                                                from £151.17
                                                                from £151.17
                                                                This part replaces part number 212916
                                                                # 29
                                                                MPN: 14059111
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                # 30
                                                                MPN: 190935
                                                                CONTROL STATION FOR RAIN AND TWILIGHT SENSORS
                                                                Supersession
                                                                Supersession
                                                                # 30
                                                                MPN: 60684944
                                                                CONTROL STATION FOR RAIN AND TWILIGHT SENSORS
                                                                from £129.77
                                                                from £129.77
                                                                This part replaces part number 190935
                                                                # 31
                                                                MPN: 67882000
                                                                SENSOR BOX
                                                                from £7.34
                                                                from £7.34
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
