130 - rear doors: trim panels

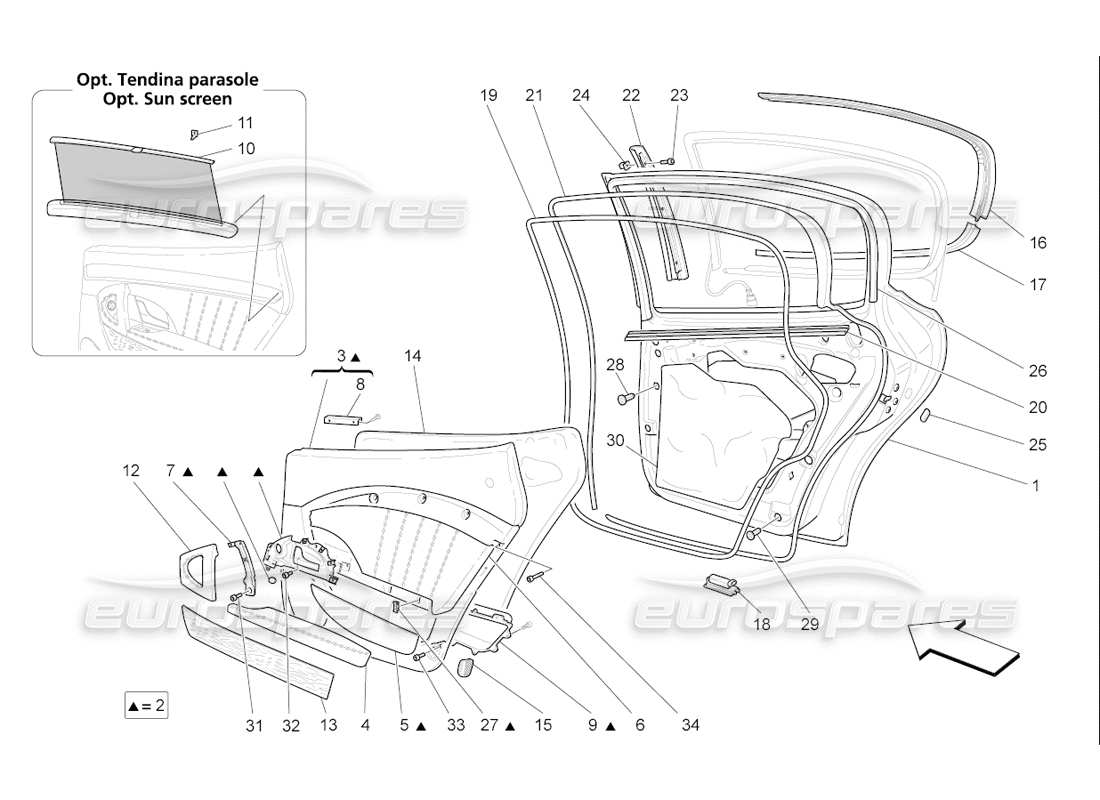

Maserati QTP. (2006) 4.2 F1 Rear Doors: Trim Panels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 01
MPN: 67062200
COMPLETE RH REAR DOOR
from £1,539.64
from £1,539.64
# 01
MPN: 67062300
COMPLETE LH REAR DOOR
from £1,539.64
from £1,539.64
# 02
-
COMPLETE LH REAR DOOR PANEL
# 02
-
COMPLETE RH REAR DOOR PANEL
# 03
-
RH REAR DOOR PANEL
# 03
-
LH REAR DOOR PANEL
# 04
-
RH REAR ARM-REST
# 04
-
LH REAR ARM-REST
# 05
MPN: 66939900
INNER COVER FOR RH REAR POCKET
from £114.81
from £114.81
# 05
MPN: 66940000
INNER COVER FOR LH REAR POCKET
from £114.81
from £114.81
# 06
-
RH REAR PANEL
# 06
-
LH REAR PANEL
# 07
MPN: 66939400
RH DOOR HANDLE
from £41.97
from £41.97
# 07
MPN: 66939500
LH DOOR HANDLE
from £23.25
from £23.25
# 08
MPN: 66938400
PROFILE
from £27.00
from £27.00
# 09
-
RH REAR POCKET INSERT
# 09
-
LH REAR POCKET INSERT
# 10
MPN: 981338533
COMPLETE RH SUN SCREEN
Black
from £462.00
from £462.00
# 10
MPN: 9813386..
COMPLETE LH SUN SCREEN
Supersession
Supersession
# 11
MPN: 68196700
HOOK
from £14.76
from £14.76
# 12
-
LH DOOR HANDLE
# 12
-
RH DOOR HANDLE
# 13
MPN: 9813367..
COMPLETE RH REAR MOULDING
from £157.50
from £157.50
# 13
MPN: 9813368..
COMPLETE LH REAR MOULDING
from £47.25
from £47.25
# 14
MPN: 67277800
RH WATER SHIELD IN THE DOOR
from £35.94
from £35.94
# 14
MPN: 67277900
LH WATER SHIELD IN THE DOOR
from £35.94
from £35.94
# 15
MPN: 66938200
RH REFLECTOR
from £17.08
from £17.08
# 15
MPN: 66938300
LH REFLECTOR
from £26.07
from £26.07
# 16
MPN: 68473500
RH UPPER REAR MOULDING
from £202.11
from £202.11
# 16
MPN: 68473600
LH UPPER REAR MOULDING
from £204.93
from £204.93
# 17
MPN: 68473300
RH LOWER REAR MOULDING
from £137.78
from £137.78
# 17
MPN: 68473400
LH LOWER REAR MOULDING
from £147.00
from £147.00
# 18
MPN: 273981
UNDER DOOR LAMP
from £11.90
from £11.90
This part replaces part number 188254
# 19
MPN: 67478200
RH REAR DOOR INTERMEDIATE GASKET
from £54.96
from £54.96
# 19
MPN: 67478300
LH REAR DOOR INTERMEDIATE GASKET
from £57.40
from £57.40
# 20
MPN: 66514000
RH REAR INNER GLASS SCRAPER GASKET
Supersession
Supersession
# 20
MPN: 66514100
LH REAR INNER GLASS SCRAPER GASKET
from £27.30
from £27.30
# 20
MPN: 68472300
RH REAR INNER GLASS SCRAPER GASKET
from £38.30
from £38.30
This part replaces part number 66514000 - and 1 more. Click to view details
# 20
MPN: 68472400
LH REAR INNER GLASS SCRAPER GASKET
from £49.64
from £49.64
This part replaces part number 66514100 which we have in stock
# 21
MPN: 67476700
RH REAR DOOR GASKET
from £165.74
from £165.74
# 21
MPN: 67476800
LH REAR DOOR GASKET
from £165.74
from £165.74
# 22
MPN: 67066500
RH REAR DOOR OUTER TRIM
from £131.11
from £131.11
# 22
MPN: 67066600
LH REAR DOOR OUTER TRIM
from £72.11
from £72.11
# 23
MPN: 16082704
SCREW
from £1.11
from £1.11
This part replaces part number 16082701
# 24
MPN: 14115680
BLOCK
from £0.53
from £0.53
# 25
MPN: 67078900
PLUG
from £1.11
from £1.11
# 26
MPN: 67861000
RH REAR DOOR FRAME COVER
from £48.69
from £48.69
# 26
MPN: 67861100
LH REAR DOOR FRAME COVER
from £58.71
from £58.71
# 27
MPN: 67874900
CLIP
from £3.48
from £3.48
# 28
MPN: 67874800
BUSHING
from £1.59
from £1.59
# 29
MPN: 67874700
BUSHING
from £1.11
from £1.11
# 30
MPN: 68191300
RH REAR UPPER DEFLECTOR
from £15.54
from £15.54
# 30
MPN: 68191400
LH REAR UPPER DEFLECTOR
from £15.54
from £15.54
# 31
MPN: 11568224
SCREW
from £0.51
from £0.51
# 32
MPN: 11568124
SCREW
from £0.51
from £0.51
# 33
MPN: 11568724
SCREW
from £1.90
from £1.90
# 34
MPN: 14300524
SCREW
from £0.96
from £0.96
