maserati qtp. (2007) 4.2 f1 auxiliary device belts parts diagram

003 - auxiliary device belts

Maserati QTP. (2007) 4.2 F1 Auxiliary Device Belts Parts Diagram

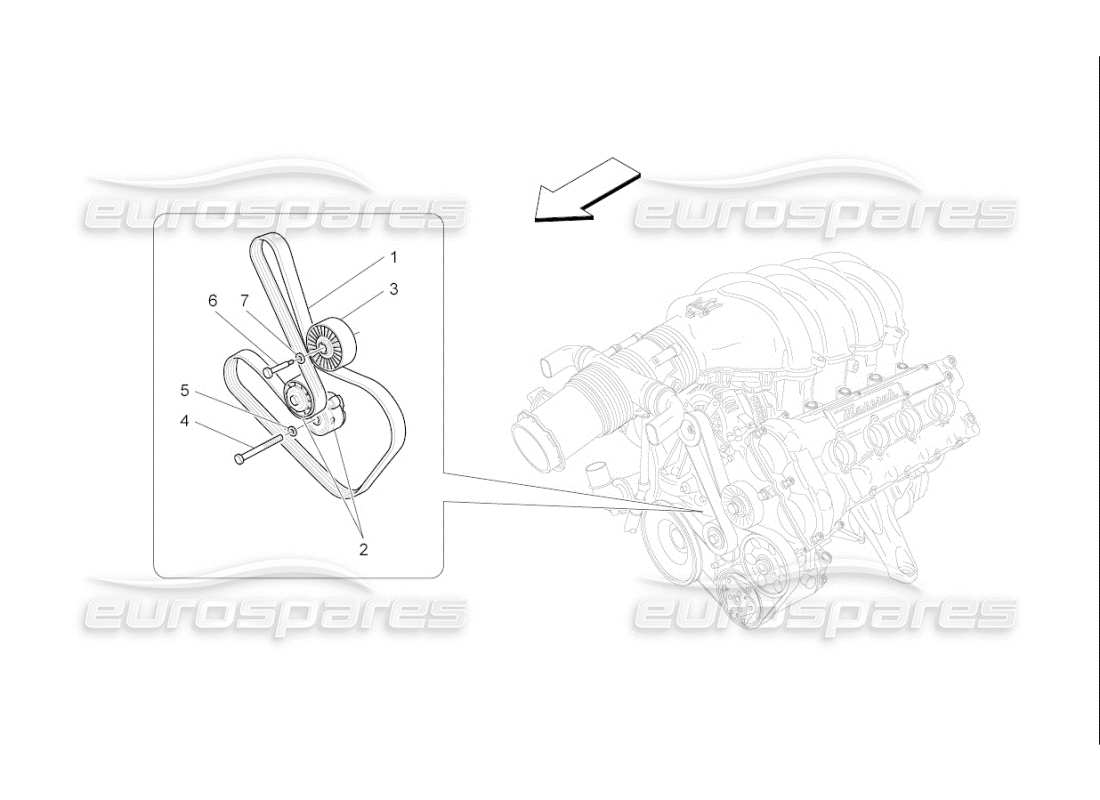

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 01
                MPN: 200738
                COMPRESSOR CONTROL BELT
                from £14.21
                from £14.21
                This part replaces part number 175446
                # 02
                MPN: 233644
                BELT TIGHTENING
                from £61.89
                from £61.89
                This part replaces part number 175436 - and 1 more. Click to view details
                # 03
                MPN: 172537
                BELT TIGHTENING PULLEY
                from £73.06
                from £73.06
                # 04
                MPN: 16044431
                SCREW
                from £0.53
                from £0.53
                # 05
                MPN: 11193874
                WASHER
                from £0.54
                from £0.54
                # 06
                MPN: 11234724
                SCREW
                from £0.54
                from £0.54
                # 07
                MPN: 11190574
                WASHER
                from £0.47
                from £0.47
