maserati qtp. (2007) 4.2 f1 lubrication system: pump and filter parts diagram

019 - lubrication system: pump and filter

Maserati QTP. (2007) 4.2 F1 Lubrication System: Pump And Filter Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 01
                                            MPN: 202976
                                            COMPLETE WATER AND OIL PUMP
                                            from £1,501.97
                                            from £1,501.97
                                            This part replaces part number 194460
                                            # 02
                                            MPN: 188814
                                            OIL FILTER CARTRIDGE
                                            from £20.57
                                            from £20.57
                                            This part replaces part number 130623
                                            # 03
                                            MPN: 177604
                                            THREADED UNION
                                            from £7.44
                                            from £7.44
                                            # 04
                                            MPN: 133938
                                            O.R. GASKET
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 166655
                                            # 05
                                            MPN: 187051
                                            LATERAL OIL RECOVERY FILTER
                                            from £10.49
                                            from £10.49
                                            # 06
                                            MPN: 187162
                                            CENTRAL OIL RECOVERY FILTER
                                            from £16.10
                                            from £16.10
                                            # 07
                                            MPN: 148225
                                            O.R. GASKET
                                            from £0.53
                                            from £0.53
                                            # 08
                                            MPN: 132829
                                            O.R. GASKET
                                            from £0.83
                                            from £0.83
                                            # 09
                                            MPN: 141250

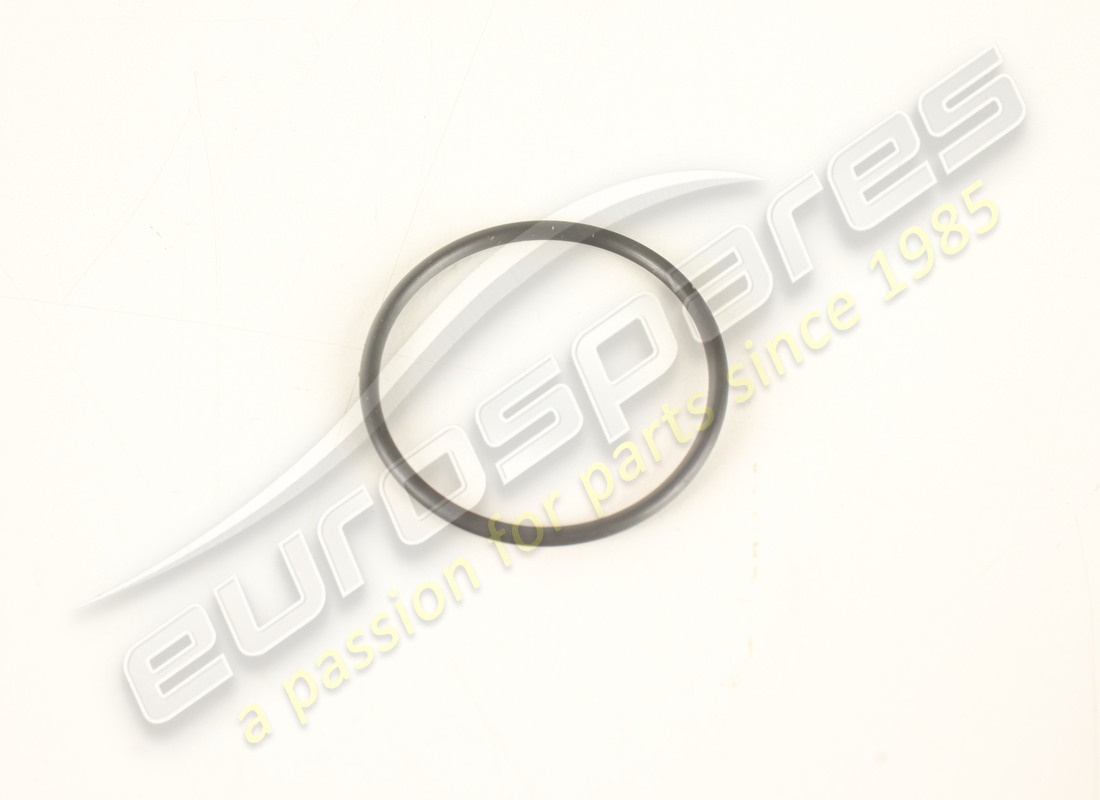

                                            O.R. GASKET
                                            from £0.54
                                            from £0.54
                                            # 10
                                            MPN: 185345
                                            SCREW M 8X25
                                            from £1.80
                                            from £1.80
                                            # 11
                                            MPN: 14306424
                                            SCREW M 8X25
                                            from £0.52
                                            from £0.52
                                            This part replaces part number 14306421
                                            # 11
                                            MPN: 14306524
                                            SCREW M 8X30
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 14306521
                                            # 12
                                            MPN: 14359324
                                            SCREW M 8X65
                                            from £0.53
                                            from £0.53
                                            # 13
                                            MPN: 11198074
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            # 14
                                            MPN: 189778
                                            COUPLING
                                            from £18.53
                                            from £18.53
                                            # 15
                                            MPN: 155996
                                            BALL BEARING
                                            from £6.69
                                            from £6.69
                                            # 17
                                            MPN: 11067276
                                            SEEGER RING
                                            from £0.53
                                            from £0.53
                                            # 18
                                            MPN: 121276
                                            GASKET
                                            from £10.38
                                            from £10.38
                                            # 20
                                            MPN: 11381076
                                            SEEGER RING
                                            from £1.12
                                            from £1.12
                                            # 21
                                            MPN: 186272
                                            O.R. GASKET
                                            from £0.54
                                            from £0.54
                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
