maserati qtp. (2007) 4.2 f1 oil vapour recirculation system parts diagram

021 - oil vapour recirculation system

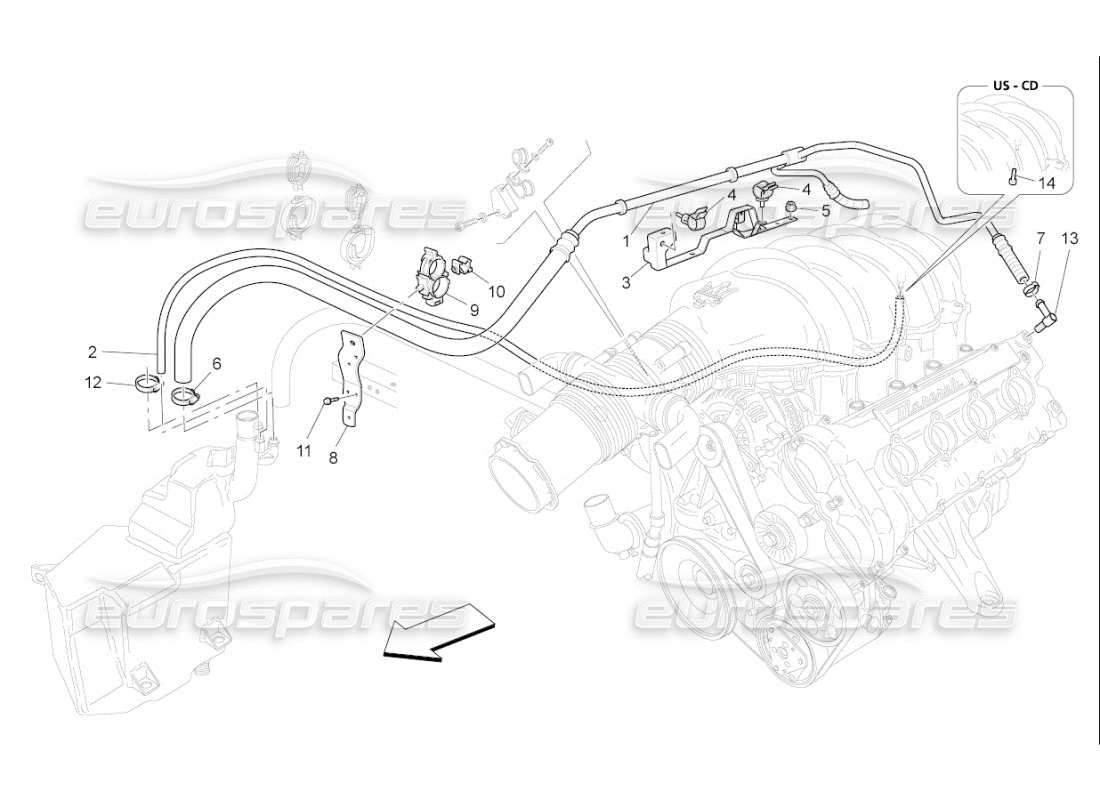

Maserati QTP. (2007) 4.2 F1 Oil Vapour Recirculation System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 01
                            MPN: 208418
                            HEAD CONNECTING VENT PIPE
                            Supersession
                            Supersession
                            # 01
                            MPN: 227573
                            HEAD CONNECTING VENT PIPE
                            from £360.41
                            from £360.41
                            This part replaces part number 208418 - and 1 more. Click to view details
                            # 02
                            MPN: 169692
                            PIPE FROM MANIFOLD TO TANK
                            from £10.84
                            from £10.84
                            # 03
                            MPN: 208646
                            BRACKET
                            from £31.84
                            from £31.84
                            # 04
                            MPN: 198253
                            CLIP
                            from £2.07
                            from £2.07
                            # 07
                            MPN: 178052
                            CLAMP
                            from £0.94
                            from £0.94
                            # 08
                            MPN: 204454
                            BRACKET
                            from £8.20
                            from £8.20
                            # 09
                            MPN: 204928
                            CLIP
                            from £1.55
                            from £1.55
                            # 10
                            MPN: 204931
                            BLOCK
                            from £0.69
                            from £0.69
                            # 11
                            MPN: 11612624
                            SCREW
                            from £0.53
                            from £0.53
                            # 12
                            MPN: 13128170
                            COLLAR
                            from £1.55
                            from £1.55
                            # 13
                            MPN: 124342
                            THREADED UNION IN THE LH HEAD
                            from £3.56
                            from £3.56
                            # 13
                            MPN: 211587
                            THREADED UNION IN THE RH HEAD
                            from £139.59
                            from £139.59
