056 - Rear Suspension

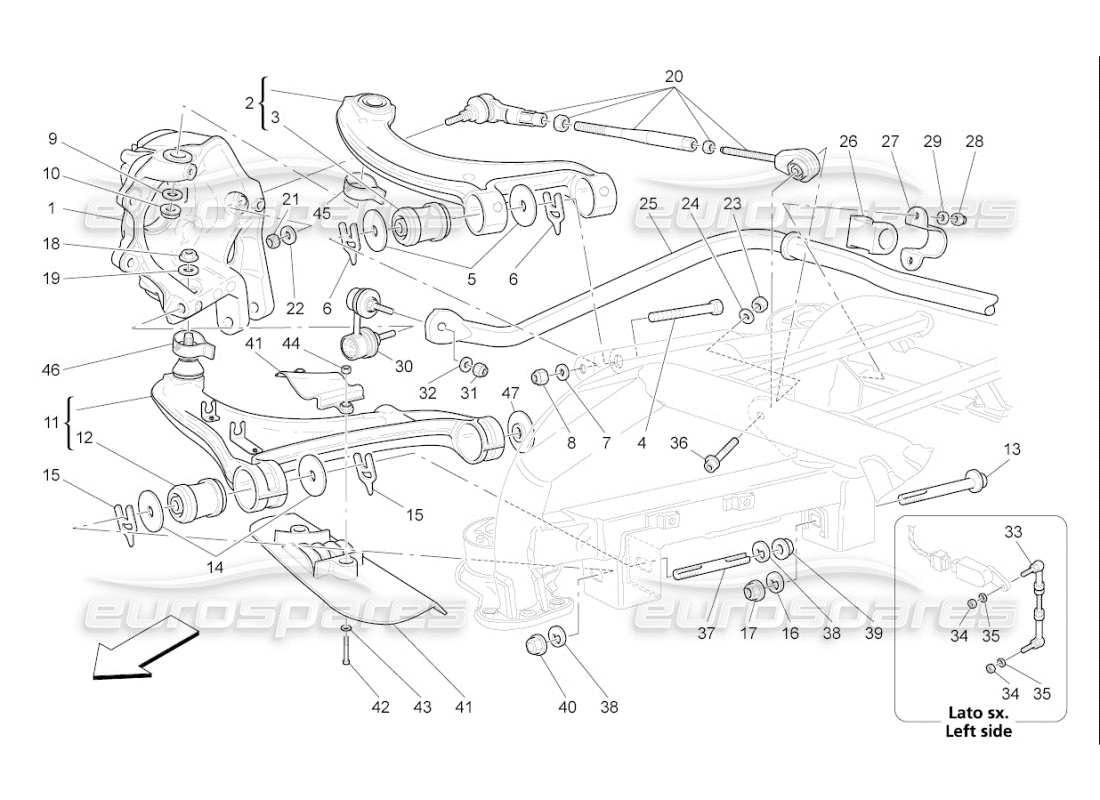

Maserati QTP. (2007) 4.2 F1 Rear Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 00
                                                                                                  MPN: 900027691
                                                                                                  RH REAR SUSPENSION KIT
                                                                                                  from £998.89
                                                                                                  from £998.89
                                                                                                  # 00
                                                                                                  MPN: 900027692
                                                                                                  LH REAR SUSPENSION KIT
                                                                                                  from £998.89
                                                                                                  from £998.89
                                                                                                  # 00
                                                                                                  MPN: 980139916
                                                                                                  RH REAR SUSPENSION KIT
                                                                                                  from £823.99
                                                                                                  from £823.99
                                                                                                  This part replaces part number 900027751
                                                                                                  # 00
                                                                                                  MPN: 980139918
                                                                                                  LH REAR SUSPENSION KIT
                                                                                                  from £126.00
                                                                                                  from £126.00
                                                                                                  This part replaces part number 900027752 - and 1 more. Click to view details
                                                                                                  # 01
                                                                                                  -
                                                                                                  COMPLETE LH REAR HUB HOLDER
                                                                                                  # 01
                                                                                                  -
                                                                                                  COMPLETE RH REAR HUB HOLDER
                                                                                                  # 02
                                                                                                  -
                                                                                                  COMPLETE RH REAR UPPER LEVER
                                                                                                  # 02
                                                                                                  -
                                                                                                  COMPLETE LH REAR UPPER LEVER
                                                                                                  # 03
                                                                                                  MPN: 208703
                                                                                                  SILENTBLOCK
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 04
                                                                                                  MPN: 15541334
                                                                                                  SCREW
                                                                                                  from £3.16
                                                                                                  from £3.16
                                                                                                  # 05
                                                                                                  MPN: 194444
                                                                                                  WASHER
                                                                                                  from £1.85
                                                                                                  from £1.85
                                                                                                  # 06
                                                                                                  MPN: 198043
                                                                                                  SPACER THICKNESS MM. 0,50
                                                                                                  from £3.16
                                                                                                  from £3.16
                                                                                                  # 06
                                                                                                  MPN: 198044
                                                                                                  SPACER THICKNESS MM. 0,75
                                                                                                  from £3.09
                                                                                                  from £3.09
                                                                                                  # 06
                                                                                                  MPN: 198045
                                                                                                  SPACER THICKNESS MM. 1,00
                                                                                                  from £3.01
                                                                                                  from £3.01
                                                                                                  # 06
                                                                                                  MPN: 198046
                                                                                                  SPACER THICKNESS MM. 1,75
                                                                                                  from £2.39
                                                                                                  from £2.39
                                                                                                  # 06
                                                                                                  MPN: 198047
                                                                                                  SPACER THICKNESS MM. 3,00
                                                                                                  from £2.39
                                                                                                  from £2.39
                                                                                                  # 07
                                                                                                  MPN: 14496721
                                                                                                  WASHER
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 08
                                                                                                  MPN: 102825
                                                                                                  NUT
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  This part replaces part number 15506221
                                                                                                  # 09
                                                                                                  MPN: 12646924
                                                                                                  WASHER VALID FOR CARS WITH SUSPENSIONS KIT 900027691/900027692 (POS.0)
                                                                                                  from £1.39
                                                                                                  from £1.39
                                                                                                  # 10
                                                                                                  MPN: 149807
                                                                                                  NUT
                                                                                                  from £0.63
                                                                                                  from £0.63
                                                                                                  # 10
                                                                                                  MPN: 245240
                                                                                                  NUT VALID FOR CARS WITH SUSPENSIONS
                                                                                                  from £4.01
                                                                                                  from £4.01
                                                                                                  # 11
                                                                                                  -
                                                                                                  COMPLETE RH REAR LOWER LEVER
                                                                                                  # 11
                                                                                                  -
                                                                                                  COMPLETE LH FRONT REAR LEVER
                                                                                                  # 12
                                                                                                  MPN: 198543
                                                                                                  SILENTBLOCK FRONT
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 12
                                                                                                  MPN: 980139890
                                                                                                  REAR SUSPENSION BUSHES KIT
                                                                                                  from £180.61
                                                                                                  from £180.61
                                                                                                  This part replaces part number 198543 - and 2 more. Click to view details
                                                                                                  # 13
                                                                                                  MPN: 194221
                                                                                                  ECCENTRIC SCREW VALID TILL CAR ASS. NR. 34853
                                                                                                  from £40.49
                                                                                                  from £40.49
                                                                                                  # 13
                                                                                                  MPN: 240874
                                                                                                  ECCENTRIC SCREW VALID FROM CAR ASS. NR. 34854
                                                                                                  from £47.22
                                                                                                  from £47.22
                                                                                                  # 13
                                                                                                  MPN: 240874
                                                                                                  ECCENTRIC SCREW VALID ONLY FOR CARS WITH REAR FRAME ASSEMBLY 239057 - VALID TILL CAR ASS. NR. 34853
                                                                                                  from £47.22
                                                                                                  from £47.22
                                                                                                  # 14
                                                                                                  MPN: 194445
                                                                                                  WASHER
                                                                                                  from £2.32
                                                                                                  from £2.32
                                                                                                  # 15
                                                                                                  MPN: 198038
                                                                                                  SPACER THICKNESS MM. 0,50
                                                                                                  from £3.16
                                                                                                  from £3.16
                                                                                                  # 15
                                                                                                  MPN: 198039
                                                                                                  SPACER THICKNESS MM. 0,75
                                                                                                  from £3.09
                                                                                                  from £3.09
                                                                                                  # 15
                                                                                                  MPN: 198040
                                                                                                  SPACER THICKNESS MM. 1,00
                                                                                                  from £3.01
                                                                                                  from £3.01
                                                                                                  # 15
                                                                                                  MPN: 198041
                                                                                                  SPACER THICKNESS MM. 1,75
                                                                                                  from £2.47
                                                                                                  from £2.47
                                                                                                  # 15
                                                                                                  MPN: 198042
                                                                                                  SPACER THICKNESS MM. 3,00
                                                                                                  from £3.32
                                                                                                  from £3.32
                                                                                                  # 16
                                                                                                  MPN: 194222
                                                                                                  WASHER VALID TILL CAR ASS. NR. 34853
                                                                                                  from £31.22
                                                                                                  from £31.22
                                                                                                  # 16
                                                                                                  MPN: 240877
                                                                                                  WASHER VALID FROM CAR ASS. NR. 34854
                                                                                                  from £3.86
                                                                                                  from £3.86
                                                                                                  # 16
                                                                                                  MPN: 240877
                                                                                                  WASHER VALID ONLY FOR CARS WITH REAR FRAME ASSEMBLY 239057 - VALID TILL CAR ASS. NR. 34853
                                                                                                  from £3.86
                                                                                                  from £3.86
                                                                                                  # 17
                                                                                                  MPN: 203795
                                                                                                  NUT
                                                                                                  from £1.57
                                                                                                  from £1.57
                                                                                                  This part replaces part number 183417 - and 1 more. Click to view details
                                                                                                  # 18
                                                                                                  MPN: 203795
                                                                                                  NUT VALID FOR CARS WITH SUSPENSIONS KIT 900027691/900027692 (POS.0)
                                                                                                  from £1.57
                                                                                                  from £1.57
                                                                                                  This part replaces part number 183417 - and 1 more. Click to view details
                                                                                                  # 18
                                                                                                  MPN: 245240
                                                                                                  NUT VALID FOR CARS WITH SUSPENSIONS
                                                                                                  from £4.01
                                                                                                  from £4.01
                                                                                                  # 19
                                                                                                  MPN: 205496
                                                                                                  WASHER
                                                                                                  from £12.68
                                                                                                  from £12.68
                                                                                                  # 20
                                                                                                  MPN: 276636
                                                                                                  TIE-ROD FOR TOE-IN ADJUSTMENT
                                                                                                  from £172.87
                                                                                                  from £172.87
                                                                                                  This part replaces part number 262362
                                                                                                  # 20
                                                                                                  MPN: 276636
                                                                                                  TIE-ROD FOR TOE-IN ADJUSTMENT
                                                                                                  from £172.87
                                                                                                  from £172.87
                                                                                                  This part replaces part number 262362
                                                                                                  # 21
                                                                                                  MPN: 203657
                                                                                                  NUT
                                                                                                  from £1.31
                                                                                                  from £1.31
                                                                                                  # 22
                                                                                                  MPN: 12626224
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 23
                                                                                                  MPN: 203657
                                                                                                  NUT
                                                                                                  from £1.31
                                                                                                  from £1.31
                                                                                                  # 24
                                                                                                  MPN: 12626224
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 25
                                                                                                  MPN: 216714
                                                                                                  Rear Anti-Roll Bar
                                                                                                  from £79.68
                                                                                                  from £79.68

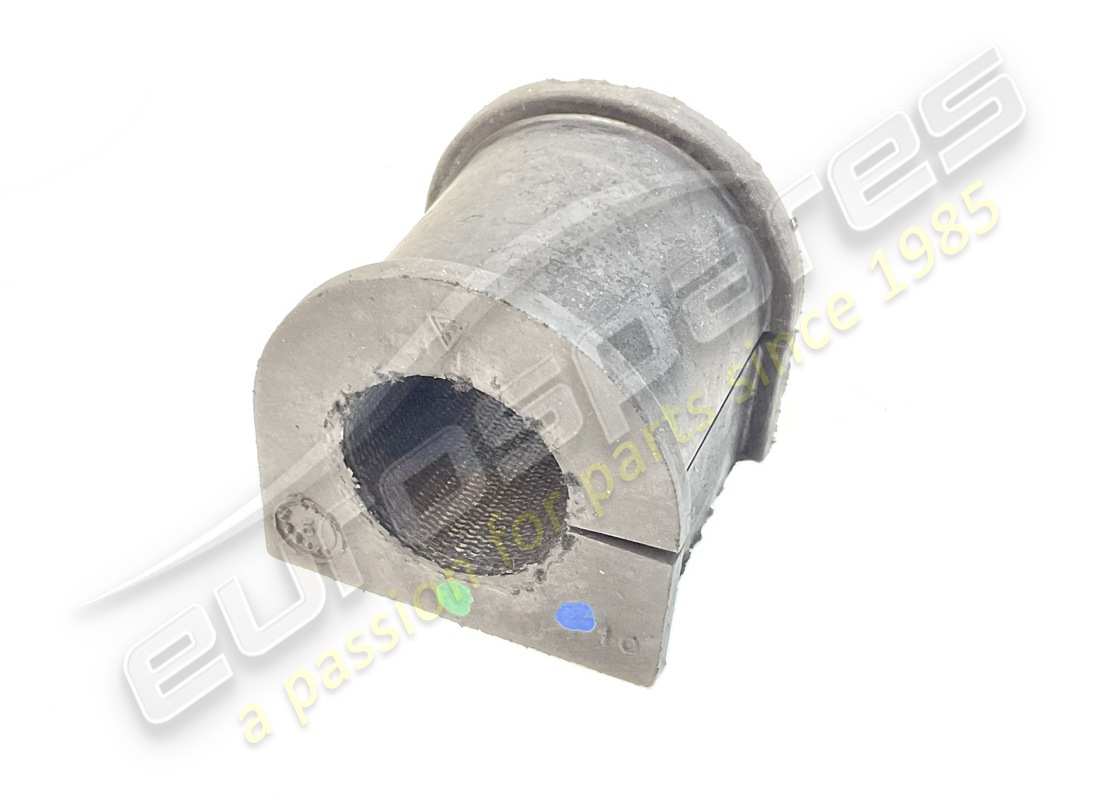

                                                                                                  # 26
                                                                                                  MPN: 200587
                                                                                                  BAR BUFFER
                                                                                                  from £20.45
                                                                                                  from £20.45
                                                                                                  # 27
                                                                                                  MPN: 191221
                                                                                                  PAD FASTENING PLATE
                                                                                                  from £25.04
                                                                                                  from £25.04
                                                                                                  # 28
                                                                                                  MPN: 104030
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 29
                                                                                                  MPN: 14496524
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 30
                                                                                                  MPN: 259572
                                                                                                  RH BALL TIE ROD
                                                                                                  from £51.64
                                                                                                  from £51.64
                                                                                                  This part replaces part number 162619
                                                                                                  # 30
                                                                                                  MPN: 259572
                                                                                                  RH BALL TIE ROD
                                                                                                  from £51.64
                                                                                                  from £51.64
                                                                                                  This part replaces part number 162619
                                                                                                  # 30
                                                                                                  MPN: 259573
                                                                                                  LH BALL TIE ROD
                                                                                                  from £47.44
                                                                                                  from £47.44
                                                                                                  This part replaces part number 162620
                                                                                                  # 30
                                                                                                  MPN: 259573
                                                                                                  LH BALL TIE ROD
                                                                                                  from £47.44
                                                                                                  from £47.44
                                                                                                  This part replaces part number 162620
                                                                                                  # 31
                                                                                                  MPN: 102742
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 32
                                                                                                  MPN: 12601474
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 33
                                                                                                  MPN: 188632
                                                                                                  TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
                                                                                                  from £66.30
                                                                                                  from £66.30
                                                                                                  # 34
                                                                                                  MPN: 102741
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12575421
                                                                                                  # 35
                                                                                                  MPN: 14498824
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 37
                                                                                                  MPN: 204008
                                                                                                  STUD
                                                                                                  from £35.87
                                                                                                  from £35.87
                                                                                                  # 38
                                                                                                  MPN: 194222
                                                                                                  WASHER VALID TILL CAR ASS. NR. 34853
                                                                                                  from £31.22
                                                                                                  from £31.22
                                                                                                  # 38
                                                                                                  MPN: 240877
                                                                                                  WASHER VALID FROM CAR ASS. NR. 34854
                                                                                                  from £3.86
                                                                                                  from £3.86
                                                                                                  # 38
                                                                                                  MPN: 240877
                                                                                                  WASHER VALID ONLY FOR CARS WITH REAR FRAME ASSEMBLY 239057 - VALID TILL CAR ASS. NR. 34853
                                                                                                  from £3.86
                                                                                                  from £3.86
                                                                                                  # 39
                                                                                                  MPN: 203795
                                                                                                  NUT
                                                                                                  from £1.57
                                                                                                  from £1.57
                                                                                                  This part replaces part number 183417 - and 1 more. Click to view details
                                                                                                  # 40
                                                                                                  MPN: 204010
                                                                                                  CAP NUT
                                                                                                  from £4.09
                                                                                                  from £4.09
                                                                                                  # 41
                                                                                                  MPN: 206881
                                                                                                  AIR CHANGE-OVER SWITCH FOR LH REAR LOWER LEVER
                                                                                                  from £16.70
                                                                                                  from £16.70
                                                                                                  # 41
                                                                                                  MPN: 206882
                                                                                                  AIR CHANGE-OVER SWITCH FOR RH REAR LOWER LEVER
                                                                                                  from £16.70
                                                                                                  from £16.70
                                                                                                  # 42
                                                                                                  MPN: 14064414
                                                                                                  SCREW
                                                                                                  from £1.31
                                                                                                  from £1.31
                                                                                                  # 43
                                                                                                  MPN: 14498804
                                                                                                  WASHER
                                                                                                  from £0.71
                                                                                                  from £0.71
                                                                                                  # 45
                                                                                                  MPN: 386600416
                                                                                                  JOINT UPPER PROTECTION
                                                                                                  from £3.63
                                                                                                  from £3.63
                                                                                                  # 46
                                                                                                  MPN: 160019
                                                                                                  JOINT LOWER PROTECTION
                                                                                                  from £3.63
                                                                                                  from £3.63
                                                                                                  This part replaces part number 386600419
                                                                                                  # 47
                                                                                                  MPN: 222203
                                                                                                  SPACER
                                                                                                  from £13.44
                                                                                                  from £13.44
                                                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
