maserati qtp. (2007) 4.2 f1 rear shock absorber devices parts diagram

057 - rear shock absorber devices

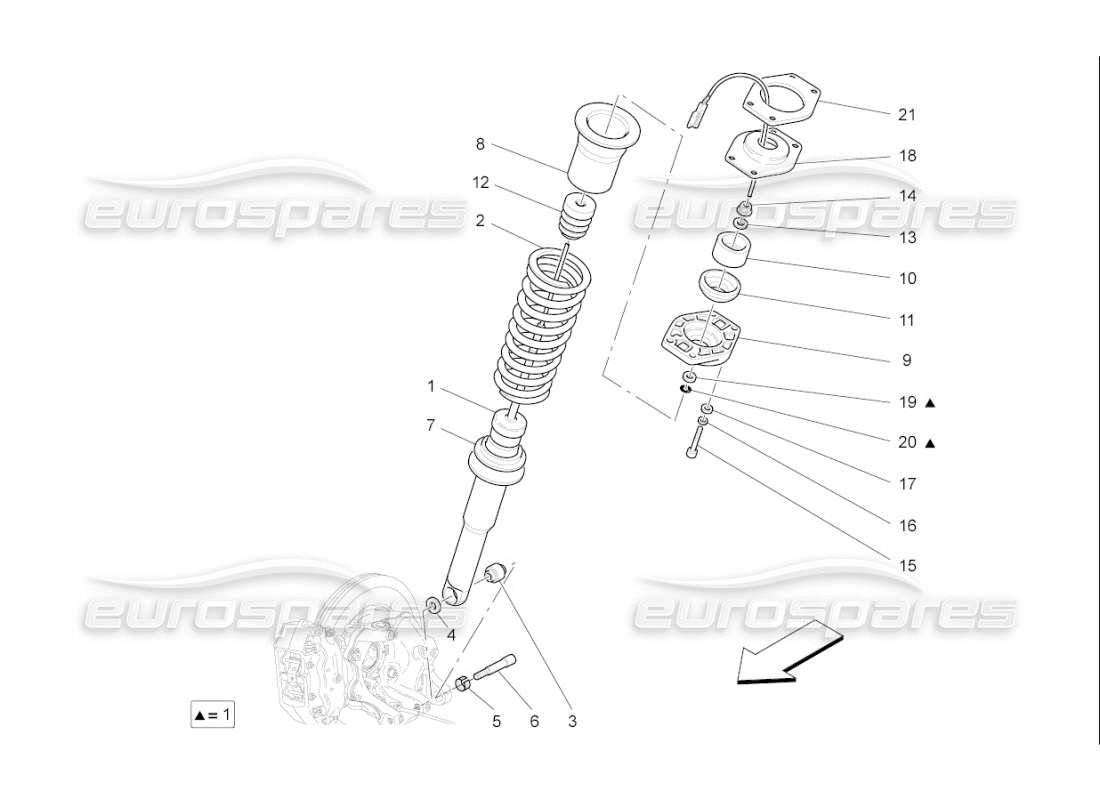

Maserati QTP. (2007) 4.2 F1 Rear Shock Absorber Devices Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 01
                                        MPN: 248256
                                        REAR SHOCK ABSORBER ACTIVE
                                        from £981.72
                                        from £981.72
                                        This part replaces part number 226149
                                        # 01
                                        MPN: 248256
                                        REAR SHOCK ABSORBER (OLD SOLUTION WITH ADJUSTMENT SPACER)
                                        from £981.72
                                        from £981.72
                                        This part replaces part number 226149
                                        # 02
                                        MPN: 900027814
                                        SPRING
                                        Pair
                                        from £369.71
                                        from £369.71
                                        This part replaces part number 238359
                                        # 02
                                        MPN: 900027814
                                        SPRING
                                        Pair
                                        from £369.71
                                        from £369.71
                                        This part replaces part number 238359
                                        # 02
                                        MPN: 900027814
                                        REAR COUPLE SPRINGS KIT
                                        from £369.71
                                        from £369.71
                                        This part replaces part number 238359
                                        # 03
                                        MPN: 225263
                                        BALL JOINT
                                        from £168.48
                                        from £168.48
                                        # 04
                                        MPN: 13550624
                                        WASHER
                                        from £1.39
                                        from £1.39
                                        # 05
                                        MPN: 179555
                                        COMPENSATOR RING
                                        from £3.27
                                        from £3.27
                                        # 06
                                        MPN: 193058
                                        SPECIAL SCREW
                                        from £31.07
                                        from £31.07
                                        # 07
                                        MPN: 211236
                                        INNER FOR SPRING
                                        from £8.83
                                        from £8.83
                                        # 08
                                        MPN: 238358
                                        UPPER SPACER
                                        from £16.15
                                        from £16.15
                                        # 09
                                        MPN: 231388
                                        CUP
                                        from £55.95
                                        from £55.95
                                        This part replaces part number 225875
                                        # 09
                                        MPN: 231388
                                        CUP
                                        from £55.95
                                        from £55.95
                                        This part replaces part number 225875
                                        # 10
                                        MPN: 205587
                                        HYPERBLOCK
                                        from £22.49
                                        from £22.49
                                        # 11
                                        MPN: 201167
                                        SPACER
                                        from £5.96
                                        from £5.96
                                        This part replaces part number 205010
                                        # 12
                                        MPN: 213528
                                        SHOCK ABSORBER PAD
                                        from £17.47
                                        from £17.47
                                        # 13
                                        MPN: 10520125
                                        WASHER
                                        from £1.85
                                        from £1.85
                                        # 14
                                        MPN: 203795
                                        NUT
                                        from £1.57
                                        from £1.57
                                        This part replaces part number 183417 - and 1 more. Click to view details
                                        # 15
                                        MPN: 14306634
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 16
                                        MPN: 11194074
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        # 17
                                        MPN: 14496524
                                        WASHER
                                        from £0.51
                                        from £0.51
                                        # 18
                                        MPN: 200336
                                        UPPER CUP
                                        from £18.31
                                        from £18.31
                                        This part replaces part number 205009
                                        # 19
                                        MPN: 183595
                                        BUSHING
                                        from £32.38
                                        from £32.38
                                        # 20
                                        MPN: 183594
                                        FLEXIBLE RING
                                        from £21.56
                                        from £21.56
