maserati qtp. (2007) 4.2 f1 energy generation and accumulation parts diagram

074 - energy generation and accumulation

Maserati QTP. (2007) 4.2 F1 Energy Generation And Accumulation Parts Diagram

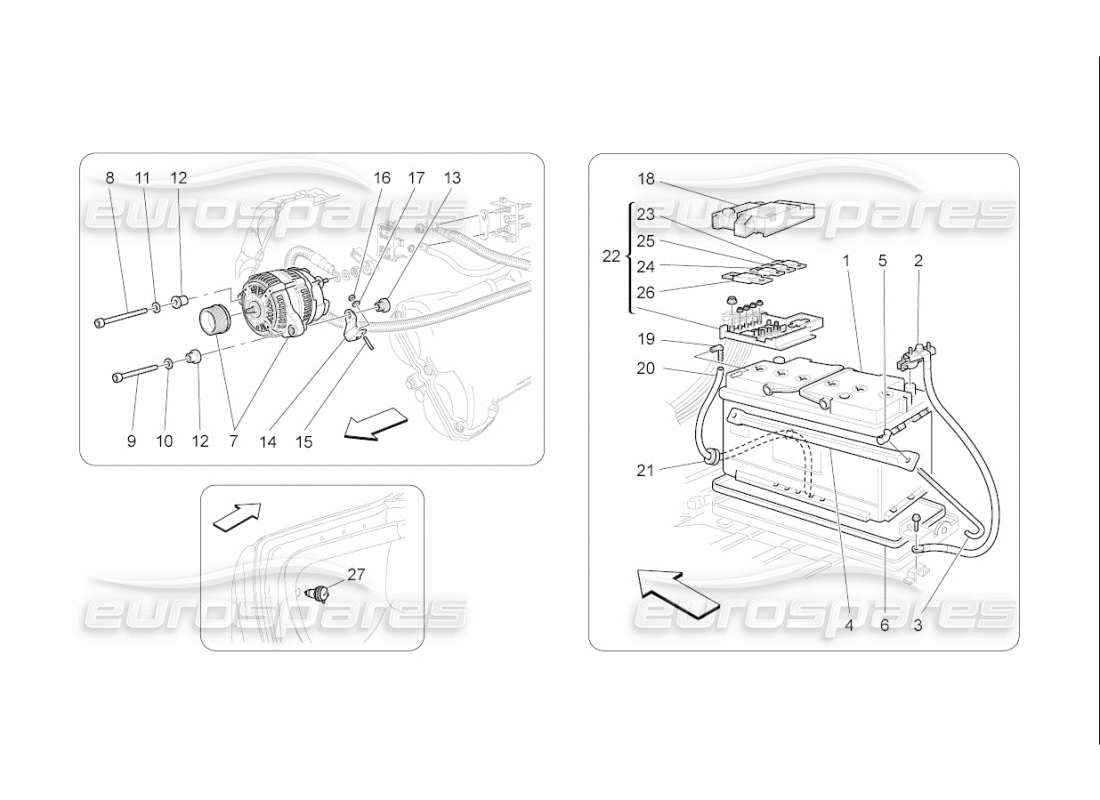

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 01
                                                      MPN: 673001440
                                                      BATTERY 100AH-850A
                                                      Unable to ship - Collection only.
                                                      from £203.75
                                                      from £203.75
                                                      This part replaces part number 980145391
                                                      # 01
                                                      MPN: 980139001
                                                      BATTERY 100AH-850A
                                                      Supersession
                                                      Supersession
                                                      # 02
                                                      MPN: 199898
                                                      BATTERY NEGATIVE CABLE NOT FOR CARS DUE TO BE SEA FREIGHTED
                                                      Supersession
                                                      Supersession
                                                      # 02
                                                      MPN: 214194
                                                      BATTERY NEGATIVE CABLE QUICK RELEASE - VALID FOR CARS DUE TO BE SEA FREIGHTED
                                                      from £39.66
                                                      from £39.66
                                                      This part replaces part number 199898
                                                      # 03
                                                      MPN: 188272
                                                      TIE ROD
                                                      from £4.12
                                                      from £4.12
                                                      # 04
                                                      MPN: 188273
                                                      BRACKET
                                                      from £69.52
                                                      from £69.52
                                                      # 05
                                                      MPN: 10101101
                                                      NUT
                                                      from £1.08
                                                      from £1.08
                                                      # 06
                                                      MPN: 191182
                                                      PAN
                                                      from £19.26
                                                      from £19.26
                                                      # 07
                                                      MPN: 325296
                                                      ALTERNATOR
                                                      from £416.66
                                                      from £416.66
                                                      This part replaces part number 263830
                                                      # 08
                                                      MPN: 14308724
                                                      SCREW
                                                      from £2.62
                                                      from £2.62
                                                      # 09
                                                      MPN: 14308224
                                                      SCREW
                                                      from £0.81
                                                      from £0.81
                                                      # 10
                                                      MPN: 10569474
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      # 11
                                                      MPN: 11190574
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 12
                                                      MPN: 164467
                                                      BUSHING
                                                      from £15.91
                                                      from £15.91
                                                      # 13
                                                      MPN: 187143
                                                      THREADED BUSHING
                                                      from £5.39
                                                      from £5.39
                                                      # 14
                                                      MPN: 187142
                                                      BRACKET
                                                      from £16.31
                                                      from £16.31
                                                      # 15
                                                      MPN: 13516624
                                                      STUD
                                                      from £0.69
                                                      from £0.69
                                                      # 16
                                                      MPN: 16100814
                                                      NUT
                                                      from £0.71
                                                      from £0.71
                                                      # 17
                                                      MPN: 11193874
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      # 18
                                                      MPN: 199905
                                                      COVER
                                                      from £4.99
                                                      from £4.99
                                                      # 19
                                                      MPN: 199631
                                                      UNION
                                                      from £0.54
                                                      from £0.54
                                                      # 20
                                                      MPN: 235789
                                                      VENT PIPE LENGHT 580MM
                                                      from £3.94
                                                      from £3.94
                                                      # 20
                                                      MPN: 383000325
                                                      VENT PIPE LENGHT 380MM
                                                      from £0.85
                                                      from £0.85
                                                      # 21
                                                      MPN: 31211302
                                                      CABLE BUSHING
                                                      from £1.08
                                                      from £1.08
                                                      # 22
                                                      MPN: 199904
                                                      BATTERY CONTROL UNIT
                                                      from £62.20
                                                      from £62.20
                                                      # 23
                                                      MPN: 980139505
                                                      MIDI FUSE 70A
                                                      from £6.44
                                                      from £6.44
                                                      # 24
                                                      MPN: 980139749
                                                      MIDI FUSE 100A
                                                      from £11.24
                                                      from £11.24
                                                      This part replaces part number 980139506 which we have in stock
                                                      # 25
                                                      MPN: 980139504
                                                      MIDI FUSE 50A
                                                      from £11.10
                                                      from £11.10
                                                      # 26
                                                      MPN: 198704
                                                      MEGA FUSE
                                                      from £11.98
                                                      from £11.98
                                                      # 27
                                                      MPN: 203506
                                                      SOCKET
                                                      from £15.96
                                                      from £15.96
