maserati qtp. (2007) 4.2 f1 headlight clusters parts diagram

075 - headlight clusters

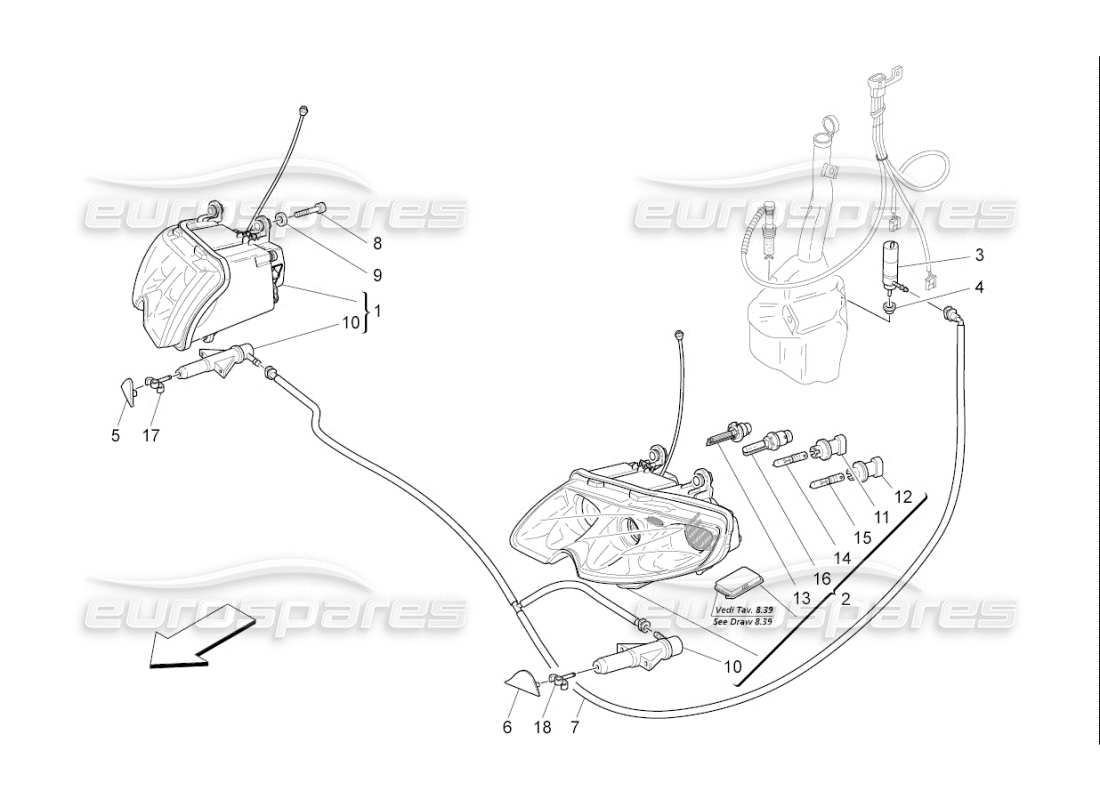

Maserati QTP. (2007) 4.2 F1 Headlight Clusters Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 01
                                      MPN: 191120
                                      RH FRONT HEADLIGHT
                                      from £1,937.53
                                      from £1,937.53
                                      # 02
                                      MPN: 191121
                                      LH FRONT HEADLIGHT
                                      from £1,937.53
                                      from £1,937.53
                                      # 03
                                      MPN: 65164700
                                      HEADLIGHTS WASHER PUMP
                                      from £41.17
                                      from £41.17
                                      # 04
                                      MPN: 65511700
                                      GASKET
                                      from £3.24
                                      from £3.24
                                      # 05
                                      MPN: 188285
                                      RH HEADLIGHT WASHER PLATE
                                      from £22.95
                                      from £22.95
                                      # 06
                                      MPN: 201033
                                      LH HEADLIGHT WASHER PLATE
                                      from £22.95
                                      from £22.95
                                      # 07
                                      MPN: 67724900
                                      PIPES FOR HEADLIGHT WASHER SYSTEM
                                      from £22.79
                                      from £22.79
                                      # 08
                                      MPN: 16286524
                                      SCREW
                                      from £0.52
                                      from £0.52
                                      # 09
                                      MPN: 12640604
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      # 10
                                      MPN: 980139014
                                      HEADLIGHTS WASHER TELESCOPIC
                                      from £102.03
                                      from £102.03
                                      # 11
                                      MPN: 980139012
                                      POSITION LAMP HOLDER
                                      from £6.34
                                      from £6.34
                                      # 12
                                      MPN: 980139013
                                      DIRECTION LAMP HOLDER
                                      from £3.71
                                      from £3.71
                                      # 13
                                      MPN: 183672
                                      BIXENON BULB
                                      from £156.85
                                      from £156.85
                                      # 14
                                      MPN: 14144190
                                      BULB 12V-5W
                                      from £0.60
                                      from £0.60
                                      # 15
                                      MPN: 187652
                                      BULB 12V-21W
                                      from £14.75
                                      from £14.75
                                      # 16
                                      MPN: 14151590
                                      BULB 12V-55W
                                      from £9.58
                                      from £9.58
                                      # 17
                                      MPN: 980139055
                                      RH HEADLIGHT WASHER NOZZLE
                                      from £21.56
                                      from £21.56
                                      # 18
                                      MPN: 980139054
                                      LH HEADLIGHT WASHER NOZZLE
                                      from £21.56
                                      from £21.56
