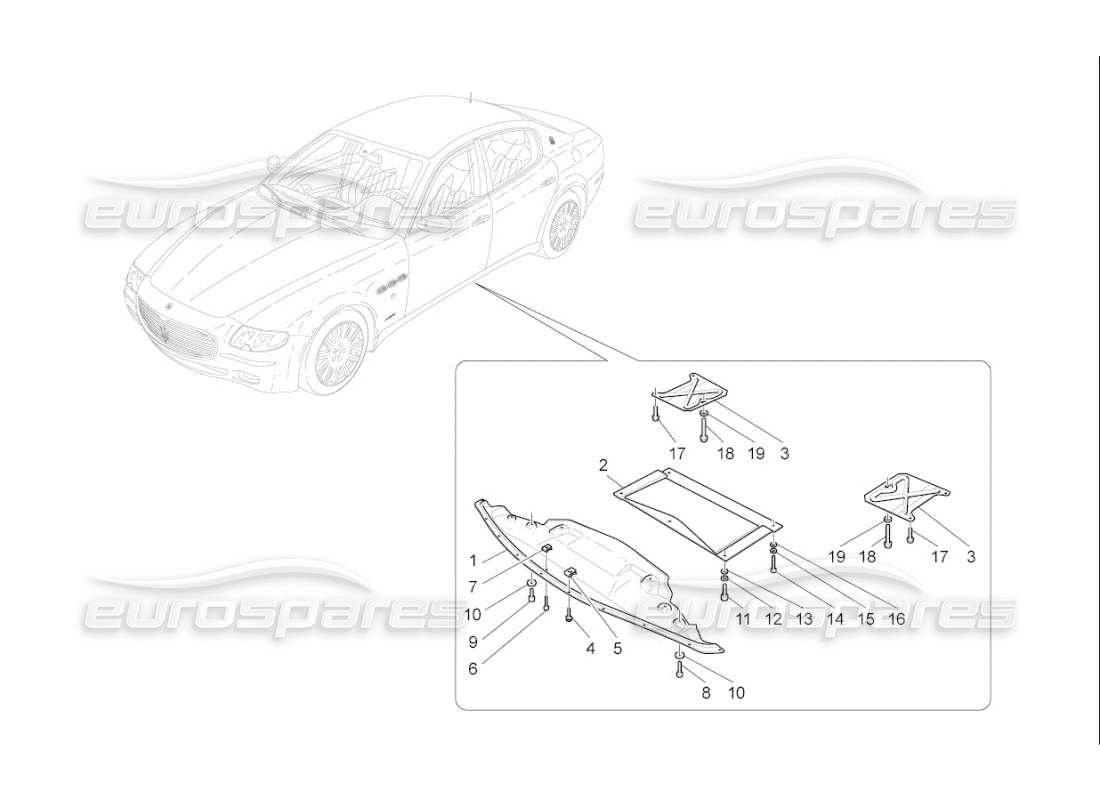

maserati qtp. (2007) 4.2 f1 underbody and underfloor guards parts diagram

109 - underbody and underfloor guards

Maserati QTP. (2007) 4.2 F1 Underbody And Underfloor Guards Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 01
                                        MPN: 67279200
                                        UNDER BODY FLOOR SHIELD
                                        from £151.17
                                        from £151.17
                                        # 02
                                        MPN: 67960100
                                        UNDER FRAME SHIELD
                                        from £105.46
                                        from £105.46
                                        # 03
                                        MPN: 67576300
                                        COVER FOR PIPING
                                        from £12.82
                                        from £12.82
                                        # 04
                                        MPN: 67278600
                                        SCREW
                                        from £2.47
                                        from £2.47
                                        # 05
                                        MPN: 67278700
                                        BRACKET
                                        from £2.32
                                        from £2.32
                                        # 06
                                        MPN: 68479900
                                        SCREW
                                        from £2.47
                                        from £2.47
                                        # 07
                                        MPN: 61789700
                                        BRACKET
                                        from £0.53
                                        from £0.53
                                        # 08
                                        MPN: 13027024
                                        SCREW
                                        from £0.50
                                        from £0.50
                                        # 09
                                        MPN: 14305124
                                        SCREW
                                        from £0.53
                                        from £0.53
                                        # 10
                                        MPN: 67577400
                                        CUP
                                        from £5.09
                                        from £5.09
                                        # 11
                                        MPN: 15970324
                                        SCREW
                                        from £0.81
                                        from £0.81
                                        # 12
                                        MPN: 12601474
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        # 13
                                        MPN: 12646824
                                        WASHER
                                        from £0.53
                                        from £0.53
                                        # 14
                                        MPN: 10902524
                                        SCREW
                                        from £0.52
                                        from £0.52
                                        # 15
                                        MPN: 12601274
                                        WASHER
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 12601270
                                        # 16
                                        MPN: 12640624
                                        WASHER
                                        from £0.53
                                        from £0.53
                                        # 17
                                        MPN: 11617324
                                        SCREW
                                        from £1.85
                                        from £1.85
                                        # 18
                                        MPN: 13217434
                                        SCREW
                                        from £4.88
                                        from £4.88
                                        # 19
                                        MPN: 12646934
                                        WASHER
                                        from £1.39
                                        from £1.39
