maserati qtp. (2007) 4.2 f1 dashboard unit parts diagram

131 - dashboard unit

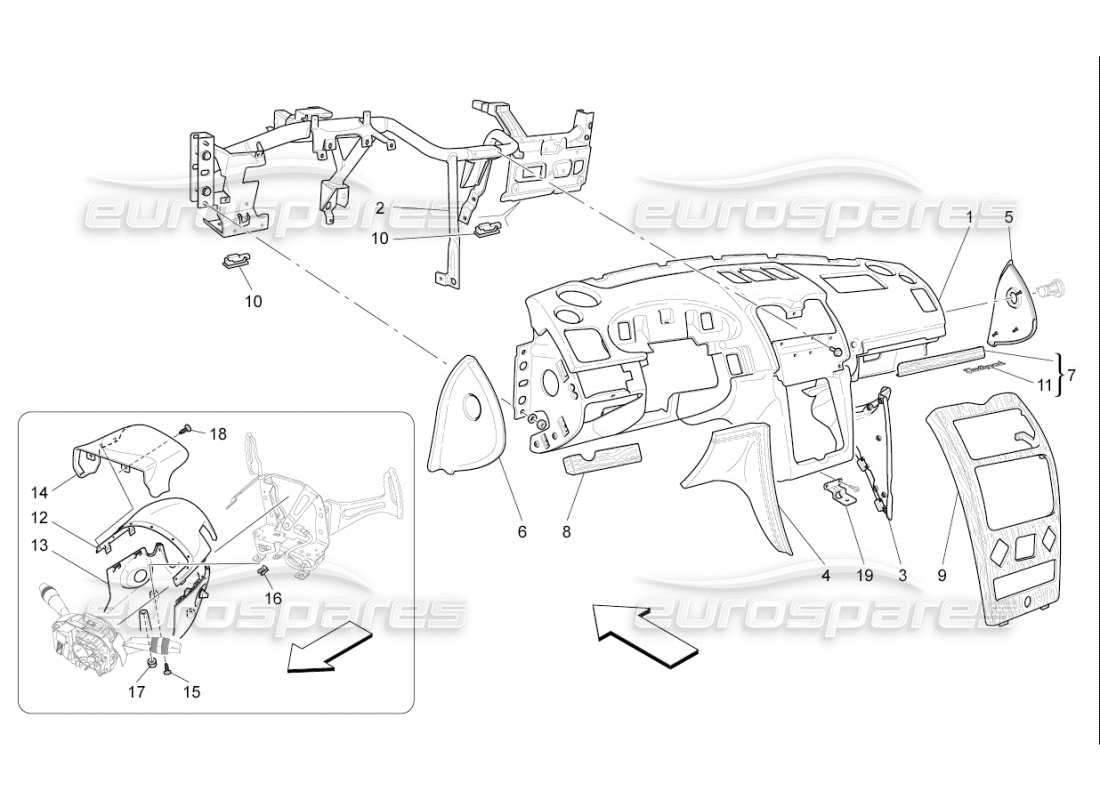

Maserati QTP. (2007) 4.2 F1 Dashboard Unit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 01
                                        MPN: 9814308..
                                        COMPLETE DASHBOARD BODY
                                        Supersession
                                        Supersession
                                        # 02
                                        MPN: 69636200
                                        COMPLETE CROSS MEMBER
                                        from £635.64
                                        from £635.64
                                        # 03
                                        -
                                        RH LATERAL COVER
                                        # 04
                                        -
                                        LH LATERAL COVER
                                        # 05
                                        MPN: 9813289..
                                        RH LATERAL INSERT
                                        Supersession
                                        Supersession
                                        # 06
                                        -
                                        LH LATERAL INSERT
                                        # 07
                                        MPN: 677165..
                                        RH PLATE
                                        from £105.00
                                        from £105.00
                                        # 08
                                        MPN: 677157..
                                        LH PLATE
                                        from £210.00
                                        from £210.00
                                        # 09
                                        MPN: 9813366..
                                        DASHBOARD CENTRAL CONSOLE
                                        Supersession
                                        Supersession
                                        # 11
                                        MPN: 67571600
                                        EMBLEM QUATTROPORTE
                                        from £35.18
                                        from £35.18
                                        # 12
                                        MPN: 68001400
                                        UPPER COVER FOR STEERING ROD
                                        from £135.42
                                        from £135.42
                                        This part replaces part number 66974700
                                        # 13
                                        MPN: 67712800
                                        COMPLETE LOWER COVER FOR STEERING ROD
                                        from £83.28
                                        from £83.28
                                        # 14
                                        MPN: 68001500
                                        COVER FOR STEERING ROD
                                        from £99.21
                                        from £99.21
                                        This part replaces part number 67567100
                                        # 15
                                        MPN: 15688875
                                        SCREW
                                        from £0.54
                                        from £0.54
                                        # 16
                                        MPN: 14372171
                                        BRACKET
                                        from £0.54
                                        from £0.54
                                        # 17
                                        MPN: 14059114
                                        NUT
                                        from £0.54
                                        from £0.54
                                        # 18
                                        MPN: 15688875
                                        SCREW
                                        from £0.54
                                        from £0.54
                                        # 19
                                        MPN: 69635800
                                        BRACKET
                                        from £10.97
                                        from £10.97
