002 - crank mechanism

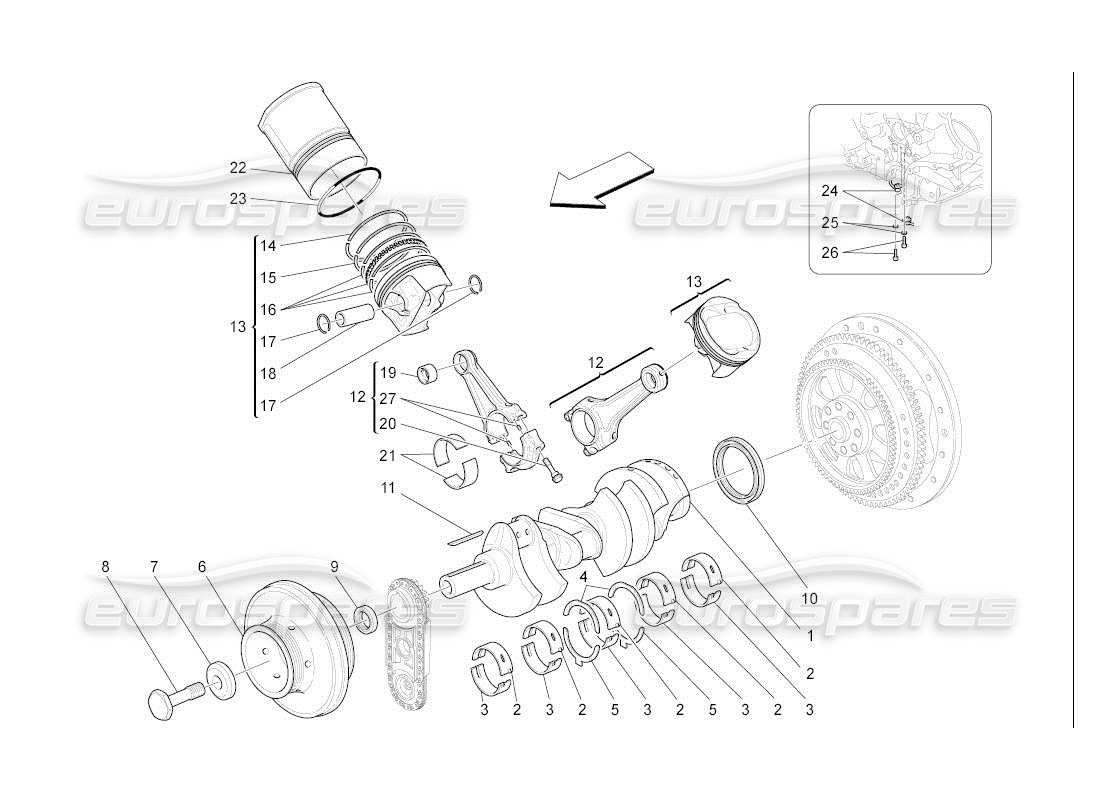

Maserati QTP. (2007) 4.2 auto Crank Mechanism Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 01
MPN: 216406
crankshaft
from £1,009.19
from £1,009.19
# 02
MPN: 195307
UPPER HALF BEARING BLUE
from £31.79
from £31.79
# 02
MPN: 195308
UPPER HALF BEARING YELLOW
from £15.01
from £15.01
# 02
MPN: 198910
UPPER HALF BEARING GREEN - STANDARD
from £15.01
from £15.01
# 03
MPN: 200194
LOWER HALF BEARING BLUE
from £17.25
from £17.25
# 03
MPN: 200195
LOWER HALF BEARING YELLOW
from £12.75
from £12.75
# 03
MPN: 200196
LOWER HALF BEARING GREEN - STANDARD
from £13.96
from £13.96
# 04
MPN: 196648
UPPER SHIM STANDARD
from £174.74
from £174.74
# 04
MPN: 201220
UPPER SHIM 1ST OVERSIZE
from £129.84
from £129.84
# 04
MPN: 201224
UPPER SHIM 2ND OVERSIZE
from £129.84
from £129.84
# 04
MPN: 222874
SHIM STANDARD
from £16.79
from £16.79
# 05
MPN: 196649
LOWER SHIM STANDARD
from £59.51
from £59.51
# 05
MPN: 201225
LOWER SHIM 1ST OVERSIZE
from £129.84
from £129.84
# 05
MPN: 201226
LOWER SHIM 2ND OVERSIZE
from £129.84
from £129.84
# 05
MPN: 222874
SHIM STANDARD
from £16.79
from £16.79
# 06
MPN: 257518
torsion damper
from £424.19
from £424.19
This part replaces part number 225848
# 06
MPN: 257518
torsion damper
from £424.19
from £424.19
This part replaces part number 225848
# 07
MPN: 192106
WASHER
from £3.67
from £3.67
# 08
MPN: 196216
SCREW FOR DAMPER FIXING
from £25.12
from £25.12
This part replaces part number 192005 - and 1 more. Click to view details
# 09
MPN: 188717
FRONT CRANKSHAFT SEAL
from £15.77
from £15.77
This part replaces part number 186883
# 10
MPN: 200323
SEAL RING
from £24.95
from £24.95
# 11
MPN: 186201
Key
from £0.69
from £0.69
# 12
MPN: 216295
COMPLETE CONNECTING ROD
Supersession
Supersession
# 12
MPN: 281167
COMPLETE CONNECTING ROD
from £95.13
from £95.13
This part replaces part number 216295 - and 3 more. Click to view details
# 13
MPN: 226718
RH SIDE ENGINE PISTON WITH RINGS
from £1,259.16
from £1,259.16
# 13
MPN: 226720
LH SIDE ENGINE PISTON WITH RINGS
from £1,259.16
from £1,259.16
# 14
MPN: 175612
SEAL RING 1ST GROOVE
from £64.38
from £64.38
This part replaces part number 187955
# 15
MPN: 226260
SEAL RING 2ND GROOVE
from £40.80
from £40.80
# 16
MPN: 226261
OIL SCRAPING RING 3ND GROOVE
from £32.76
from £32.76
# 17
MPN: 178890
STOP RING
from £3.24
from £3.24
# 18
MPN: 198260
PIN
from £20.34
from £20.34
# 19
MPN: 224504
BUSHING
from £10.97
from £10.97
# 20
MPN: 218371
CONNECTING ROD TIGHTENING SCREW
from £19.78
from £19.78
# 21
MPN: 204290
CONNECTING ROD HALFBEARING RED - STANDARD
from £4.82
from £4.82
# 21
MPN: 204291
CONNECTING ROD HALFBEARING BLUE
from £4.82
from £4.82
# 22
MPN: 222571
CYLINDER LINER
from £703.83
from £703.83
# 23
MPN: 186251
GASKET
from £1.57
from £1.57
# 24
MPN: 175657
PISTONS COOLING NOZZLE
from £5.28
from £5.28
# 25
MPN: 11181474
WASHER
from £0.51
from £0.51
# 26
MPN: 14302921
SCREW
from £0.51
from £0.51
# 27
MPN: 224608
CENTERING PIN
from £1.94
from £1.94
